Information of LGRIG® Grade 70 Chain Anchor with Delta Ring and Grab Hook

Brand	LGRIG®
Material	Super Alloy Steel
Processing	Welded, Drop Forged
Finish	Electro-galvanized
Tips	Delta ring is wide enough to accommodate multiple rigging options.
Country of Origin	China

Specifications of LGRIG® Grade 70 Chain Anchor with Delta Ring and Grab Hook

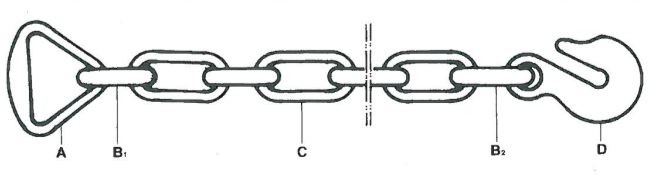

Part No.	A	B1	C	B2	D	LENGTH	WEIGHT	B.L.
LGCAWD101	2″	5/16″	1/4″x14″	5/16″	5/16″	18″	0.90kg	10000LB
LGCAWD102	2″	3/8″	5/16″x11″	3/8″	3/8″	18″	1.19kg	10000LB
LGCAWD103	3″	7/16″	5/16″x10″	7/16″	5/16″	18″	1.32kg	16200LB
LGCAWD104	3″	7/16″	5/16″x10″	7/16″	3/8″	18″	1.48kg	16200LB
LGCAWD105	3″	7/16″	5/16″x6″	7/16″	3/8″	12″	1.28kg	16200LB
LGCAWD106	3″	7/16″	3/8″x9″	7/16″	3/8″	18″	1.70kg	16200LB
LGCAWD107	4″	7/16″	5/16″x10″	7/16″	3/8″	18″	1.68kg	20000LB
