Information of LGRIG® Grade L Chain Short Link AS2321 Galvanised

Brand	LGRIG®
Standard	G30 L chain Conform to Australian Standard AS2321
Grade	Grade 30 Grade L
Material	Low-strength carbon steel
Processing	Welded
Finish	Electric Galvanized
Size	5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 24mm
Safety Factor	5:1
Tips	Links marked with ‘L’
Country of Origin	China

Specifications of LGRIG® Grade L Chain Short Link AS2321 Galvanised

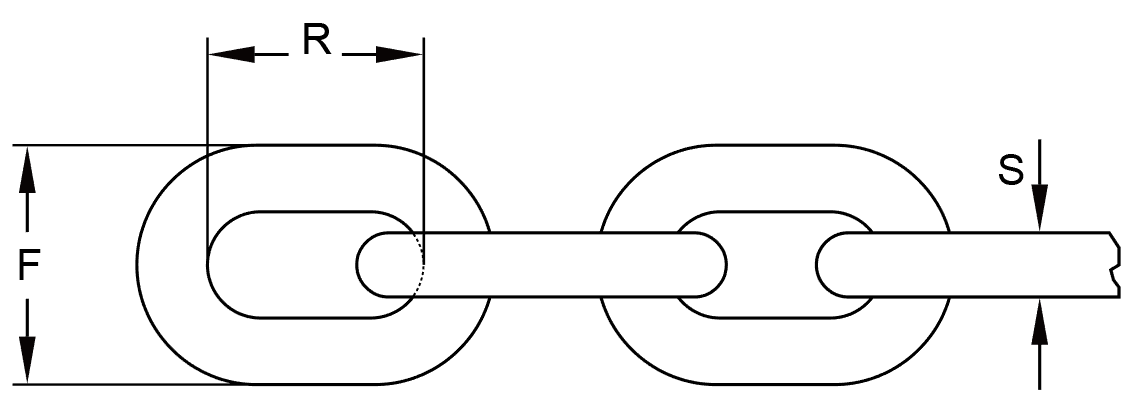

Part No.	SIZE	WLL	DIMENSIONS(mm)			Links/ meter	Self Color Meters/100kg	HDG Meters/100kg
Part No.	mm	tonne	S	R	F	Links/ meter	Self Color Meters/100kg	HDG Meters/100kg
LGCGL5	5	0.25	5	14.6	17.2	68.3	174	167
LGCGL6	6	0.4	6.3	18.8	21.6	53.2	116	110
LGCGL8	8	0.64	8	23.8	27	42	71.4	69.9
LGCGL10	10	1	10	29.8	34.3	33.6	44.8	43.9
LGCGL13	13	1.7	13	38.8	44.6	25.8	28.9	26.3
LGCGL16	16	2.58	16	47.8	54.8	50.9	17.8	17.5
LGCGL20	20	4.03	20	59.2	68.5	16.9	11.3	11.1
LGCGL22	22	5.06	22	64.9	77	15.4	9.5	9.2
LGCGL24	24	5.61	24	71	82.2	14.1	7.8	7.6

The WLL (working load limit) states Grade L Chain,rated for general conditions of use to group classification of crane mechanisms of M3 as specified in AS1418.1, and in accordance with AS2321 for industrial lifting applications.
For other than general conditions of use the WLL shall be adjusted to conform to the group classification of crane mechanisms as specified in AS1418.1 for the conditions of use that apply.
