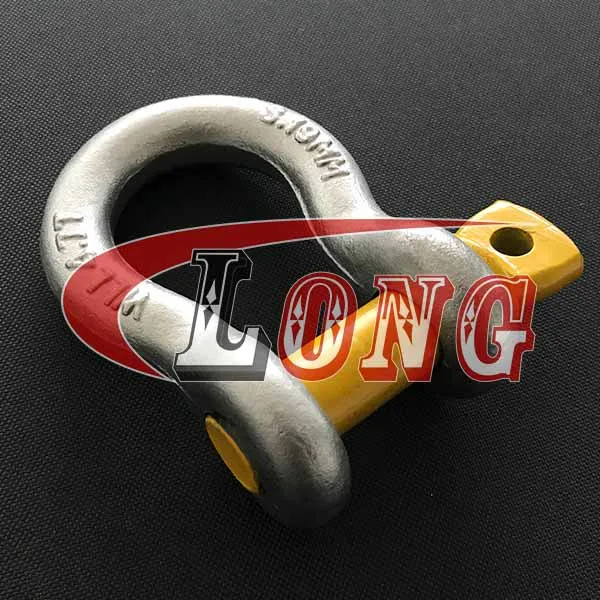

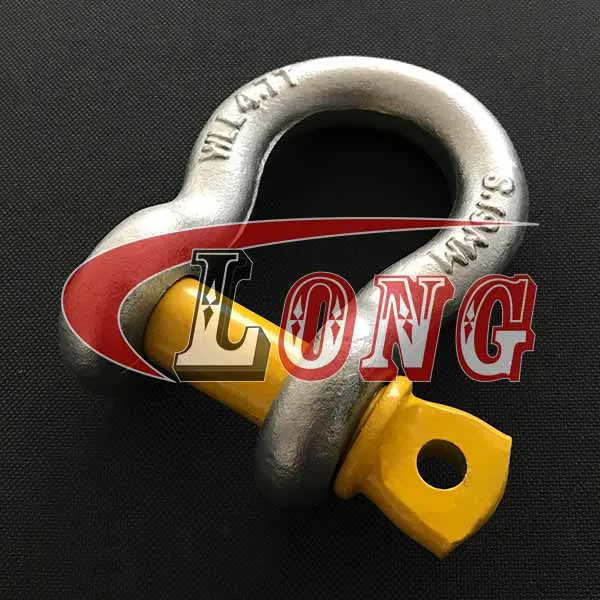

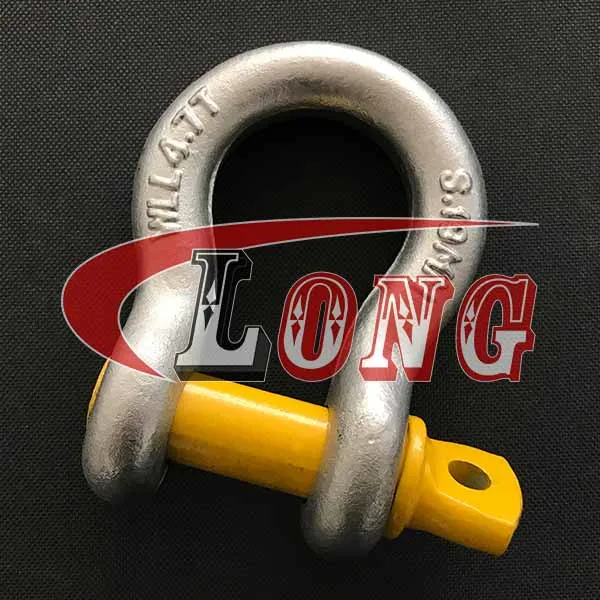

Name: LGRIG® Grade S Bow Shackle Screw Pin AS2741
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

 LGRIG® Screw Pin Chain Shackle High Tensile U.S. Type

 LGRIG® Screw Pin Anchor Shackle High Tensile U.S. Type

 LGRIG® Bolt Type Anchor Shackle High Tensile U.S. Type

 LGRIG® Bolt Type Chain Shackle High Tensile U.S. Type

 LGRIG® Nonrated Screw Pin Anchor Shackle U.S. Type

 LGRIG® Commercial Screw Pin Dee Shackle European Type

 LGRIG® Commercial bow Shackle with Screw Pin European Type

 LGRIG® JIS Type Screw Pin D Commercial Shackle

 LGRIG® Grade S Bow Shackle Screw Pin AS2741

 LGRIG® Grade S Dee Shackle with Screw Pin AS2741

 LGRIG® AS2741 Grade S Bow Shackle with Safety Pin&Nut

 LGRIG® AS2741 Grade S Dee Shackle Safety Pin & Nut

 LGRIG® Mooring Shackle No 852 Bolt Type Pin

 LGRIG® Grade 8 Alloy Bolt Type Anchor Shackle

 LGRIG® Grade 8 Alloy Bolt Type Chain Shackle

 LGRIG® Wide Body Sling Shackle Safety Pin Forged Alloy Steel

 LGRIG® Grade 80 Alloy Screw Pin Anchor Shackle

 LGRIG® Grade 8 Alloy Screw Pin Chain Shackle

 LGRIG® B.S.3032 Small Bow Shackle with Screw Collar Pin

 LGRIG® BS3032 Small Dee Shackle with Type A Screw Collar Pin

 LGRIG® B.S.3032 Large Bow Shackle with Screw Collar Pin

 LGRIG® BS3032 Large Dee Shackle with Type A Screw Collar Pin

 LGRIG® Shackles Similar to Din 82101 Form A/B/C Galvanised

 LGRIG® Italy Type Galvanized Bow Shackle Screw Pin

 LGRIG® Galvanized Dee Shackles Italy Type

 LGRIG® Round Pin Anchor Shackle U.S. Type

 LGRIG® Round Pin Chain Shackle US Type

 LGRIG® Piling Shackle Long D Shackle

 Trawling Shackle D Type Blue Painted Square Head Pin of Lifting & Rigging Shackles

 Trawling Shackle Bow Type Square Head Pin Blue Painted of Lifting & Rigging Shackles

 Bow Shackle Square Head Pin High Tensile of Lifting & Rigging Shackles

 Dee Shackle Square Head Pin for Lifting and Rigging Shackles

 Bow Shackle Sunken Head of Lifting & Rigging Shackles

 Dee Shackle Sunken Head of Lifting & Rigging Shackles

 LGRIG® G80 Unilock Shackle Connecting Link

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Grade S Bow Shackle Screw Pin AS2741

Brand	LGRIG®
Standard	Australian Standard AS2741
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel
Pin Type	Screw Pin
Safety Factor	6: 1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin:Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized Screw Pin: Zinc Plated + Powder Coated
Size	5mm, 6mm, 8mm, 10mm, 11mm, 13mm, 16mm, 19mm, 22mm , 25mm, 29mm, 32mm, 35mm, 38mm, 44mm, 51mm, 57mm, 63mm
Suitable Applications	Marine, agricultural, towing, & general industrial.

Specifications of LGRIG® Grade S Bow Shackle Screw Pin AS2741

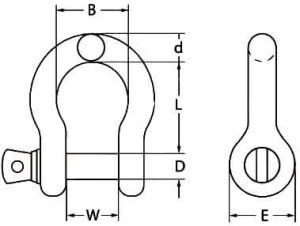

Part No.	Size	WLL	Weight	Dimensions
	Size	WLL	Weight	(mm)
	(mm)	(tonnes)	(kg)	B	D	d	E	L	W
LGGSBSSP05	5	0.33	0.02a	15	6	5	14	22	10
LGGSBSSP06	6	0.5	0.05	20	8	6	17	29	12
LGGSBSSP08	8	0.75	0.09	21	10	8	21	31	13
LGGSBSSP10	10	1	0.14	26	11	10	25	37	17
LGGSBSSP11	11	1.5	0.17	29	13	11	27	43	18
LGGSBSSP13	13	2	0.29	33	16	13	33	48	21
LGGSBSSP16	16	3.2	0.63	43	19	16	40	61	27
LGGSBSSP19	19	4.7	1.02	51	22	19	48	72	32
LGGSBSSP22	22	6.5	1.53	58	25	22	54	84	37
LGGSBSSP25	25	8.5	2.41	68	29	25	60	95	43
LGGSBSSP29	29	9.5	3.09	74	32	29	67	108	46
LGGSBSSP32	32	12	4.31	83	35	32	76	119	52
LGGSBSSP35	35	13.5	6.01	92	38	35	84	133	57
LGGSBSSP38	38	17	8.03	98	44	38	92	146	60
LGGSBSSP44	44	25	13.79	127	51	44	110	178	73
LGGSBSSP51	51	35	20.42	146	57	51	127	197	83
LGGSBSSP57	57	42.5	26.06	160	63	57	143	222	95
LGGSBSSP63	63	55	38.8	184	70	63	152	267	105
