Information of LGRIG® Grade U1 U2 U3 Stud Link Anchor Chain Common Link

Brand	LGRIG®
Material	Super low Carbon Alloy Steel
Safety Factor	4: 1
Processing	Welded, Heat Treated
Finish	Hot Dip Galvanized, Black Bitumen Coating
Size	12.5mm, 14mm, 16mm, 17.5mm, 19mm, 20.5mm, 22mm,24mm, 26mm, 28mm, 30mm, 32mm, 34mm 36mm, 38mm, 40mm,42mm, 44mm, 46mm, 48mm, 50mm,52mm, 54mm, 56mm,58mm, 60mm, 62mm 64mm, 66mm, 68mm,70mm, 73mm, 76mm, 78mm, 81mm,84mm, 87mm, 90mm,92mm, 95mm, 97mm 100mm, 102mm, 105mm, 107mm, 111mm, 114mm, 117mm, 120mm,122mm, 124mm, 127mm,130mm
Tips	Color Code: Customized according to customers' requirements
Country of Origin	China

Why Choose Our Grade U1 U2 U3 Stud Link Anchor Chain Link

Our stud link anchor chain for sale is designed to meet the rigorous demands of the marine industry. Whether you're outfitting a small vessel or setting up a complex mooring system for an offshore platform, we offer a range of anchor chains that can be customized to your specific requirements.

High-Quality Materials: All our stud link anchor chains for sale are made from low carbon alloy steel and undergo stringent proof load testing.

Custom Lengths: While our standard lengths are 27.5m, we can provide bespoke assemblies tailored to your project.

Corrosion Resistance: Available in black bitumen or galvanized finishes, our chains are built to withstand harsh marine environments.

By choosing LG RIGGING®, a leading rigging hardware manufacturer, as your supplier, we will help you to understand the difference between U2 and U3 chain and choose appropriate products among stud link anchor chains for sale. you benefit from our expertise in marine hardware and our commitment to delivering high-quality products that meet stud link chain specifications and international standards.

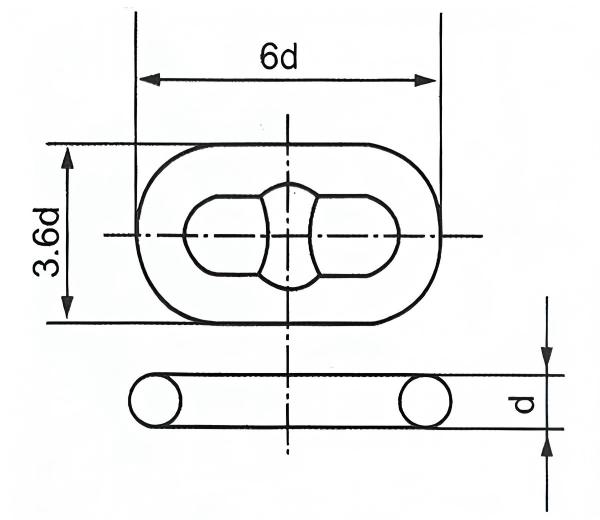

Specifications of LGRIG® Grade U1 U2 U3 Stud Link Anchor Chain Common Link


Part No.	d(φ)		AM1		AM2		AM3		APPROX.
			U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		WEIGHT
			U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		PER
	DIAMETER		PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	27.5M
	(in.)	(mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	(kg.)
LGCSL12.5	1/2	12.5	46	66	66	92	92	132	98
LGCSL14	9/16	14	58	82	82	116	116	165	119
LGCSL16	5/8	16	76	107	107	150	150	216	156
LGCSL17.5	11/16	17.5	89	127	127	179	179	256	186
LGCSL19	3/4	19	105	150	150	211	211	301	230
LGCSL20.5	13/16	20.5	123	175	175	244	244	349	260
LGCSL22	7/8	22	140	200	200	280	280	401	300
LGCSL24	15/16	24	167	237	237	332	332	476	370
LGCSL26	1-1/16	26	194	278	278	389	389	556	431
LGCSL28	1-1/8	28	225	321	321	449	449	642	496
LGCSL30	1-3/16	30	257	368	368	514	514	735	564
LGCSL32	1-1/4	32	291	417	417	583	583	833	635
LGCSL34	1-5/16	34	328	468	468	655	655	937	712
LGCSL36	1-7/16	36	366	523	523	732	732	1050	800
LGCSL38	1-1/2	38	406	581	581	812	812	1160	887
LGCSL40	1-9/16	40	448	640	640	896	896	1280	1032

Specification-2 – Grade U1 U2 U3 Stud Link Anchor Chain Common Link

Part No.	d(φ)		AM1		AM2		AM3		APPROX.
			U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		WEIGHT
			U1 STUD LINK CHAIN		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		PER
	DIAMETER		PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	27.5M
	(in.)	(mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	(kg.)
LGCSL42	1-5/8	42	492	703	703	981	981	1400	1084
LGCSL44	1-3/4	44	538	769	769	1080	1080	1540	1197
LGCSL46	1-13/16	46	585	837	837	1170	1170	1680	1310
LGCSL48	1-7/8	48	635	908	908	1270	1270	1810	1438
LGCSL50	2	50	686	981	981	1370	1370	1960	1546
LGCSL52	2-1/16	52	739	1060	1060	1480	1480	2110	1661
LGCSL54	2-1/8	54	794	1140	1140	1590	1590	2270	1791
LGCSL56	2-3/16	56	851	1220	1220	1710	1710	2430	1926
LGCSL58	2-5/16	58	909	1290	1290	1810	1810	2600	2086
LGCSL60	2-3/8	60	969	1380	1380	1940	1940	2770	2249
LGCSL62	2-7/16	62	1030	1470	1470	2060	2060	2940	2361
LGCSL64	2-1/2	64	1100	1560	1560	2190	2190	3130	2516
LGCSL66	2-9/16	66	1160	1660	1660	2310	2310	3300	2676
LGCSL68	2-11/16	68	1230	1750	1750	2450	2450	3500	2885
LGCSL70	2-3/4	70	1290	1840	1840	2580	2580	3690	3010

Specification-3 – Grade U1 U2 U3 Stud Link Anchor Chain Common Link

Part No.	d(φ)	AM2		AM3		APPROX.
		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		WEIGHT
		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		PER
	DIAMETER	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	27.5M
	(mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	(kg.)
LGCSL73	73	1990	2790	2790	3990	3274
LGCSL76	76	2150	3010	3010	4300	3548
LGCSL78	78	2260	3160	3160	4500	3737
LGCSL81	81	2410	3380	3380	4820	4030
LGCSL84	84	2580	3610	3610	5160	4334
LGCSL87	87	2750	3850	3850	5500	4650
LGCSL90	90	2920	4090	4090	5840	4976
LGCSL92	92	3040	4260	4260	6080	5119
LGCSL95	95	3230	4510	4510	6440	5544
LGCSL97	97	3340	4680	4680	6690	5780
LGCSL100	100	3530	4940	4940	7060	6143
LGCSL102	102	3660	5120	5120	7320	6398
LGCSL105	105	3850	5390	5390	7700	6773
LGCSL107	107	3980	5570	5570	7960	7033
LGCSL111	111	4250	5940	5940	8480	7569
LGCSL114	114	4440	6230	6230	8890	7983
LGCSL117	117	4650	6510	6510	9300	8409
LGCSL120	120	4850	6810	6810	9720	8863
LGCSL122	122	5000	7000	7000	9990	9143
LGCSL124	124	5140	7200	7200	10280	9598
LGCSL127	127	5350	7490	7490	10710	9908
LGCSL130	130	5570	7800	7800	11140	10382
