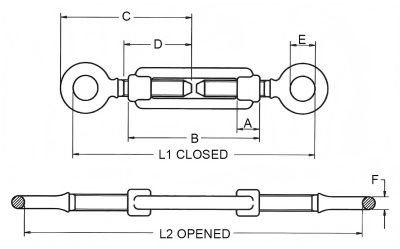

Specifications of Italy Type Turnbuckle Eye and Eye
No. | Size | A | B | C | D | E | F | L1 | L2 | S.W.L. | Weight |
mm | mm | mm | mm | mm | mm | mm | mm | Kg | Kg |
LGITTEE101 | M5 | 9 | 79 | 59 | 40 | 8 | 4 | 122 | 175 | 140 | 0,04 |
LGITTEE102 | M6 | 10 | 88 | 74 | 50 | 10 | 4 | 140 | 203 | 225 | 0,06 |
LGITTEE103 | M8 | 12 | 110 | 80 | 52 | 11 | 5 | 157 | 226 | 410 | 0,15 |
LGITTEE104 | M10 | 15 | 130 | 97 | 60 | 14 | 6,5 | 182 | 260 | 650 | 0,21 |
LGITTEE105 | M11 | 17,5 | 135 | 102 | 65 | 15 | 7,5 | 197 | 285 | 790 | 0,31 |
LGITTEE106 | M12 | 18 | 140 | 106 | 67 | 17 | 8 | 228 | 297 | 930 | 0,34 |
LGITTEE107 | M14 | 20 | 170 | 126 | 83 | 18 | 8,5 | 245 | 365 | 1330 | 0,5 |
LGITTEE108 | M16 | 22,5 | 190 | 160 | 97 | 23 | 13 | 280 | 412 | 1770 | 0,93 |
LGITTEE109 | M18 | 27 | 200 | 178 | 112 | 25 | 14 | 324 | 450 | 2200 | 1,38 |
LGITTEE110 | M20 | 30 | 220 | 190 | 116 | 25 | 14 | 340 | 470 | 2700 | 1,42 |
LGITTEE111 | M22 | 33 | 242 | 200 | 120 | 30 | 16 | 365 | 495 | 3300 | 2,11 |
LGITTEE112 | M24 | 39 | 255 | 210 | 125 | 34 | 17 | 400 | 565 | 3920 | 2,76 |
LGITTEE113 | M27 | 45 | 255 | 236 | 150 | 34 | 18,5 | 445 | 586 | 4950 | 3,91 |
LGITTEE114 | M30 | 45 | 255 | 240 | 150 | 38 | 19,5 | 451 | 595 | 6250 | 4,05 |
LGITTEE115 | M33 | 45 | 255 | 242 | 150 | 39 | 21 | 452 | 607 | 7560 | 5,75 |
LGITTEE116 | M36 | 55 | 295 | 276 | 160 | 48 | 27 | 510 | 673 | 9100 | 7,25 |
LGITTEE117 | M39 | 63 | 330 | 276 | 165 | 48 | 28 | 511 | 690 | 10600 | 9,36 |
LGITTEE118 | M42 | 63 | 330 | 320 | 180 | 55 | 40 | 575 | 754 | 12500 | 13,96 |
LGITTEE119 | M45 | 78 | 355 | 322 | 175 | 55 | 40 | 590 | 755 | 14400 | 19,1 |
LGITTEE120 | M48 | 78 | 355 | 322 | 180 | 55 | 40 | 590 | 755 | 16500 | 19,3 |
LGITTEE121 | M52 | 78 | 355 | 322 | 180 | 55 | 40 | 590 | 755 | 19800 | 28,84 |
We also carry Italy Type Turnbuckles with the following ends:
Eye and Hook;
Hook and Hook;
Jaw and Jaw.
China LG Supply offers a wide variety of fittings and assemblies in wire rope turnbuckles.
