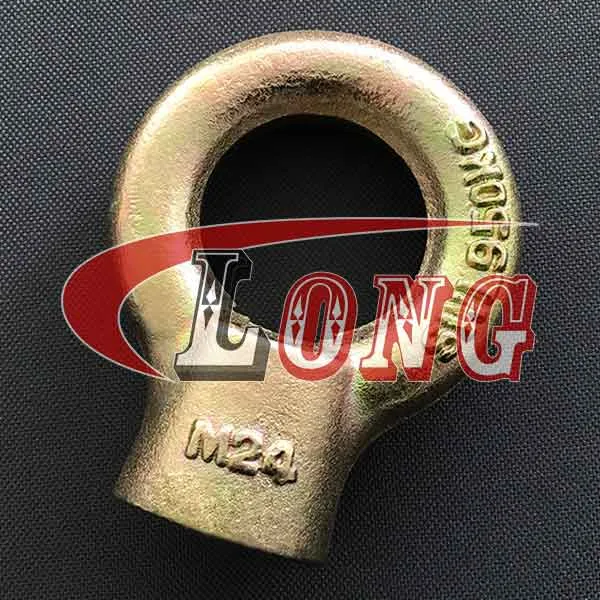

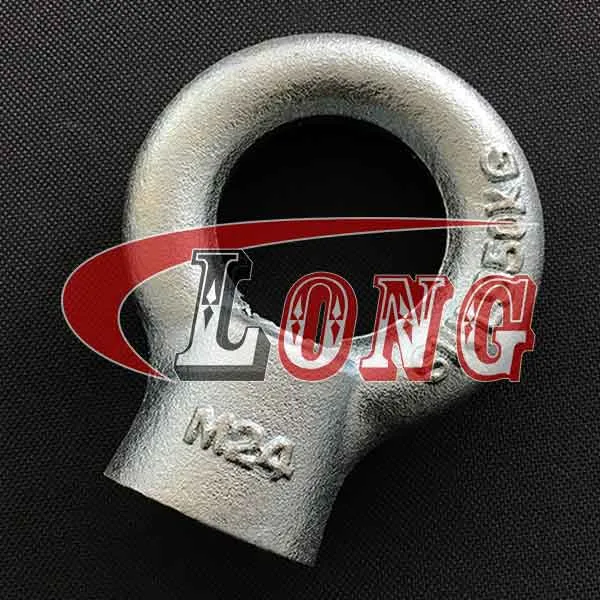

Name: LGRIG® JIS B 1169 Forged Eye Nut
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

 LGRIG® Collared Eyebolt BS 4278 Table 1 Metric

 LGRIG® Fork Head Clevis Joint DIN71752

 LGRIG® DIN580 Eye Bolt Galvanized

 LGRIG® DIN 582 Lifting Eye Nut

 LGRIG® Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

 LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1

 LGRIG® Collared Eyebolt With Oval Link Metric BS 4278 Table 2

 LGRIG® Dynamo Eyebolt with Enlarged Eye BS 4278 Table 3 Metric

 LGRIG® Long Shank Metric Dynamo Eyebolts to BS 4278 Table 3

 LGRIG® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

 LGRIG® JIS B 1169 Forged Eye Nut

 LGRIG® Forged Shoulder Machinery Eye Bolt LGS-279/LGM-279

 LGRIG® Forged Screw Eye Bolts LG-275

 LGRIG® Forged Shoulder Nut Eye Bolts LG-277

 LGRIG® Regular Nut Eye Bolts LG-291

 LGRIG® G-400 Eye Nut Galvanized UNC Threaded

 LGRIG® Rectangular Base Deck Eye Plates

 LGRIG® DIN 444 Swing Eye Bolt

 LGRIG® Wood Lag Screw w/Ring Thread Ring Bolt

 LGRIG® Welded Eye Bolt Wire Turned with Lock nut

 LGRIG® Unwelded Eye Bolt Wire Turned

 LGRIG® Lag Screw Eye Bolts Welded

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® JIS B 1169 Forged Eye Nut

Brand	LGRIG®
Standard	Eye Nut conformed To JIS B 1169
Material	Carbon Steel
Processing	Drop Forged
Finish	Yellow Chromate , Zinc plated , Hot dipped galvanized
Size	M8,M10,M12,M16,M20,M24,M36,M42,M48,M64,M80
Country of Origin	China

Specifications of LGRIG® JIS B 1169 Forged Eye Nut

Specifications of JIS B 1169 Forged Eye Nut

Part No.	Size	A	B	C	D	E	F	G	SWL（KGS/KN)
Part No.	Size	A	B	C	D	E	F	G	Vertical		45°
LGJIS1169G8	M8	32.6	20	6.3	16	12	23	39.3	80	0.785	80	0.785
LGJIS1169G10	M10	41	25	8	20	15	28	48.5	150	1.47	150	1.47
LGJIS1169G12	M12	50	30	10	25	19	36	61	220	2.16	220	2.16
LGJIS1169G16	M16	60	35	12.5	30	23	42	72	450	4.41	450	4.41
LGJIS1169G20	M20	72	40	16	35	28	50	86	630	6.18	630	6.18
LGJIS1169G24	M24	90	50	20	45	38	66	111	950	9.32	950	9.32
LGJIS1169G36	M36	133	70	31.5	70	55	95	161.5	2300	22.6	2300	22.6
LGJIS1169G42	M42	151	80	35.5	80	64	109	184.5	3400	33.3	3400	33.3
LGJIS1169G48	M48	170	90	40	90	73	123	208	4500	44.1	4500	44.1
LGJIS1169G64	M64	210	110	50	110	90	151	256	9000	88.3	9000	88.3
LGJIS1169G80	M80	266	140	63	130	108	184	317	15000	147	15000	147
