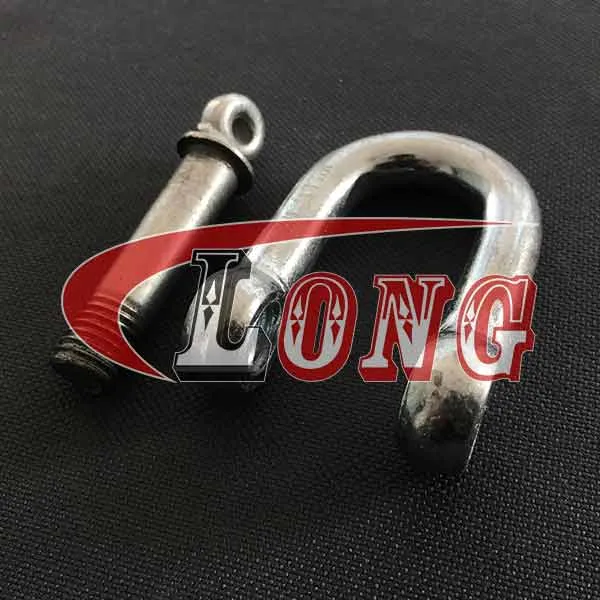

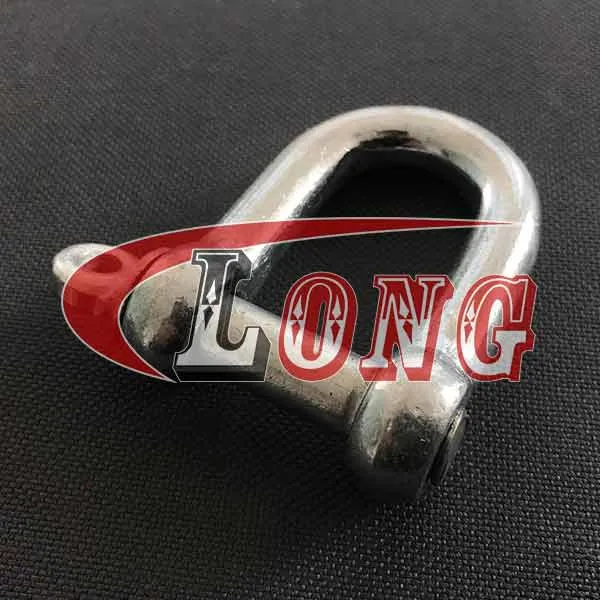

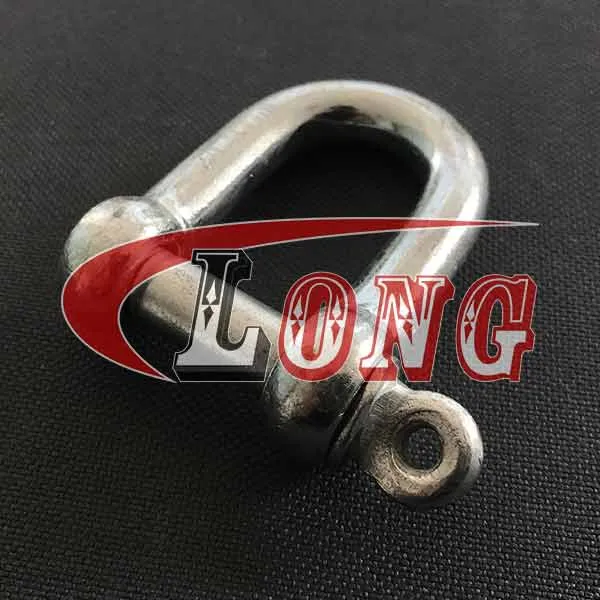

Information of LGRIG® JIS Type Screw Pin D Commercial Shackle

Brand	LGRIG®
Standard	JIS B2801-1977
Material	Mild steel
Processing	Open Die Forged
Finish	Electro-galvanized
Size	4.8mm, 6mm, 8mm, 9mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm, 44mm, 50mm, 65mm, 75mm 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/2″, 3″

Specifications of JIS Type Screw Pin D Commercial Shackle

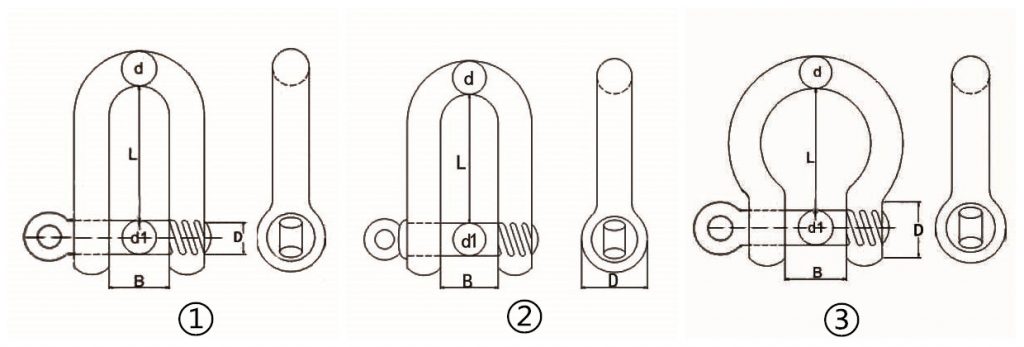

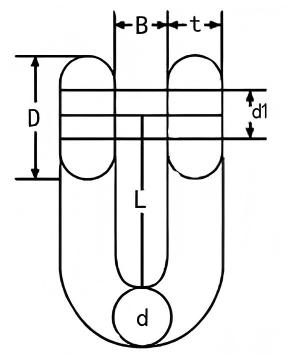

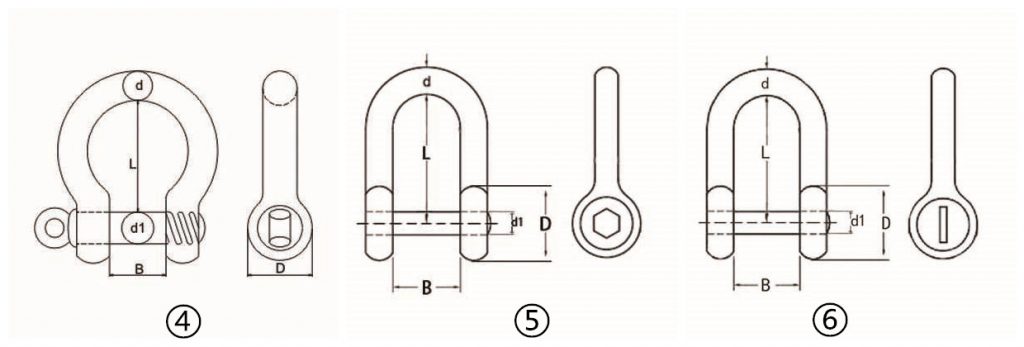

specification-jis-type-screw-pin-d-commercial-shackle.jpg drawing-jis-standard-commercial-type-shackle-screw-pin.jpg

Part No.	Size		B	D	L	dl	SWL	①	②	③	④	⑤	⑥	⑦
Part No.	mm	in	mm				ton	kg	kg	kg	kg	kg	kg	kg
LGJIS101	4.8	3/16	10	10	18.5	5.0	0.09	0.013	0.014	0.024	0.026	——	——	——
LGJIS102	6	1/4	12	11	25	6.5	0.15	0.026	0.028	0.062	0.028	——	——	——
LGJIS103	8	5/16	14	15	31	8.5	0.25	0.046	0.049	0.062	0.065	——	——	——
LGJIS104	9	3/8	18	17	36	10	0.4	0.07	0.049	0.077	0.08	0.073	0.065	0.075
LGJIS105	12	1/2	24	23	46	13	0.6	0.17	0.18	0.19	0.2	0.15	0.17	0.186
LGJIS106	16	5/8	30	32	59	17	0.8	0.4	0.42	0.475	0.495	0.37	0.41	0.455
LGJIS107	19	3/4	36	37	74	20	1.0	0.7	0.72	0.78	0.8	0.62	0.67	0.78
LGJIS108	22	7/8	43	43	86	23	1.5	1.1	1.18	1.18	1.26	1	1.1	1.4
LGJIS109	25	1	47	50	95	27	2.0	1.7	1.8	1.8	1.9	1.53	1.6	1.75
LGJIS110	28	11/8	55	56	110	30	2.5	2.4	2.5	2.55	2.65	2.2	2.35	2.4
LGJIS111	32	11/4	64	64	130	34	3.2	3.6	3.7	3.9	4	3.2	3.35	3.6
LGJIS112	38	11/2	76	76	145	40	4.2	6	6.1	6.9	7	5.25	5.7	6
LGJIS113	44	13/4	80	90	160	47	6.5	10	——	——	10	——	——	——
LGJIS114	50	2	90	100	185	53	8	12	——	——	12.5	——	——	——
LGJIS115	65	21/2	110	130	240	68	15	28	——	——	——	——	——	——
LGJIS116	75	3	120	150	300	78	20	44	——	——	——	——	——	——
