Information of LGRIG® Lever Load Binder with Grab Hooks Grade 70 US.Fed.Spec.

Brand	LGRIG®
Standard	U.S. Federal Specification(Meets D.O.T. Specs.)
Material	Super Alloy Steel
Safety Factor	3.5: 1
Processing	Drop Forged / Machining + Quenched and Tempered
Finish	Powder Coated
Size	1/4"-5/16", 5/16”-3/8”, 3/8”-1/2”, 1/2”-5/8”
Tips	Color Code: Customized according to customers’ requirements
Note	NOT FOR LIFTING, ONLY FOR LASHING. Do not exceed Working Load Limits (W.L.L).
Country of Origin	China

Specifications of LGRIG® Lever Load Binder with Grab Hooks Grade 70 US.Fed.Spec.

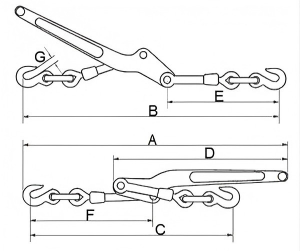

Part No.	Size	Min-Max Chain	WLL	Proof load	Ultimate Load	Weight Each	Handle Length	Dimensions (in.)
Part No.	Size	(in.)	(lbs.)	(lbs.)	(lbs.)	(lbs.)	(in.)	A	B	C	D	E	F	G
LGLLBHUS01	1/4″-5/16″	1/4-5/16	2600	5200	9200	3.6	11.42	20.66	18.7	15.35	11.42	8.85	8.85	0.35
LGLLBHUS02	5/16″-3/8″	5/16-3/8	5400	10800	19000	8.56	15.43	25.2	25.2	21.46	15.55	12.2	12.2	0.47
LGLLBHUS03	3/8″-1/2″	3/8-1/2	9200	18400	33000	12.38	17.24	28.15	28.7	24.61	17.52	13.58	13.58	0.59
LGLLBHUS04	1/2″-5/8″	1/2-5/8	11000	22000	440000	19.7	21	33.86	30.12	25.78	20.87	14.37	14.37	0.74
