Informations of LGRIG® Blue Painted Bow Shackle Trawler Square Head Pin

Brand	LGRIG®
Material	Super Mild Steel
Processing	Forged
Finish	Blue Painted
Shackle shape	Bow Shackle
Pin	Square Head Pin
Size (mm)	10x12mm, 13×16mm, 16×20mm, 20×22mm, 22×25mm, 25×28mm, 28x32mm, 32x36mm, 36x38mm, 38x42mm
Size(inch)	3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2"
Safety Factor	MBL equals 5 × WLL
Application	for Trawl
Tips	Special specification and marks can be made according to customers' requirements.

Specification of LGRIG® Blue Painted Bow Shackle Trawler Square Head Pin

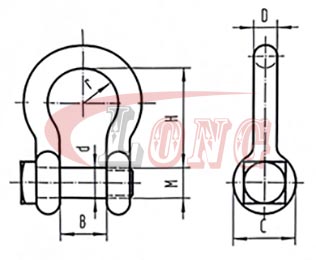

Part No.	SIZE D*d	SIZE inch	B	H	C	2r	M	WLL
LGFKB10HB	10mm*12mm	3/8"	20	38	24	30	M12	-
LGFKB13HB	13mm*16mm	1/2"	25	48	32	36	M16	1.5Ton
LGFKB16HB	16mm*20mm	5/8"	32	64	40	48	M20	2.5Ton
LGFKB20HB	20mm*22mm	3/4"	38	79	48	60	M22	3Ton
LGFKB22HB	22mm*25mm	7/8"	44	87	53	66	M24	4Ton
LGFKB25HB	25mm*28mm	1"	51	100	60	75	M27	5Ton
LGFKB28HB	28mm*32mm	1-1/8"	56	114	67	86	M33	-
LGFKB32HB	32mm*36mm	1-1/4"	64	126	71	96	M36	-
LGFKB36HB	36mm*38mm	1-3/8"	70	140	76	105	M39	-
LGFKB38HB	38mm*42mm	1-1/2"	76	152	84	114	M42	-
