Information of LGRIG® Curved Type Bollard

Brand	LGRIG®
Material	Cast Iron

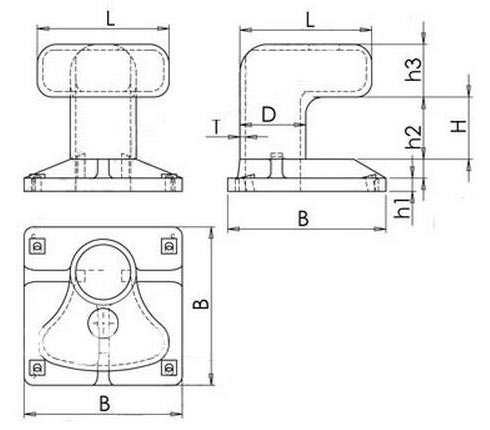

Specification of LGRIG® Curved Type Bollard

Part No.	Type	Size(mm)								Weight (kg)
Part No.	Type	D	H	T	L	B	h1	h2	h3	Weight (kg)
LGBCT05T	5T	150	170	20	300	350	30	60	120	70
LGBCT10T	10T	200	210	20	400	480	40	70	160	140
LGBCT15T	15T	250	250	20	500	600	50	80	200	245
LGBCT25T	25T	300	290	21	600	720	65	95	240	420
LGBCT35T	35T	300	290	25	600	720	65	95	240	440
LGBCT50T	50T	350	330	29	700	840	70	100	280	665
LGBCT70T	70T	400	370	33	800	1000	90	120	320	1100
LGBCT100T	100T	450	410	39	900	1200	95	125	360	1670
