Information of LGRIG® Dock Inclined Double Bitts Bollard

Brand	LGRIG®
Material	Casting Steel
Style	Dock Bollard

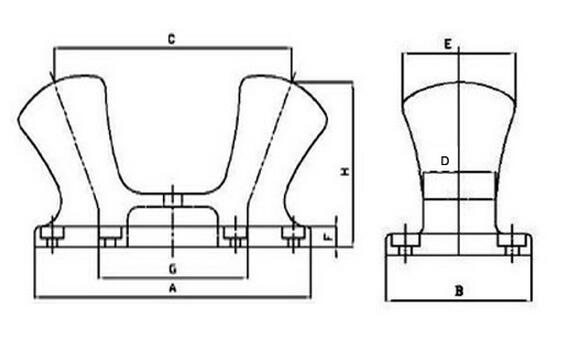

Specification of LGRIG® Dock Inclined Double Bitts Bollard

Part No.	Capacity (ton)	Type	A	B	C	D	E	F	G	H	Bolts Qty.
LGDBYJ020	20	DBA20	685	370	610	150	254	50	369	394	8
LGDBYJ030	30	DBA30	825	420	725	180	290	58	445	451	8
LGDBYJ050	50	DBA50	945	455	825	200	330	65	510	508	8
LGDBYJ075	75	DBA75	1205	522	1040	255	405	75	650	622	10
LGDBYJ100	100	DBA100	1390	635	1200	305	457	82	760	698	10
LGDBYJ125	125	DBA125	1525	675	1320	330	500	85	840	752	10
LGDBYJ150	150	DBA150	1650	720	1420	355	533	90	910	797	10
LGDBYJ175	175	DBA175	1875	840	1650	406	610	105	1067	909	10
LGDBYJ200	200	DBA200	2030	860	1750	432	660	115	1130	987	10
