Name: LGRIG® Grade 8 Swivel Safety Hook Dacromet
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

Hooks 

 LGRIG® SWIVEL SAFETY HOOKS BKL TYPE G100 WITH RECESSED TRIGGER

 LGRIG® SAFETY HOOKS BK EYE TYPE G100 WITH RECESSED TRIGGER

 G100 Safety Hook Eye Self Locking Hook LG RIGGING®

 Grade 100 Safety Hooks OBK with Grip Latch LG RIGGING®

 G100 Safety Hook Clevis Self Locking Hook LG RIGGING®

 Grade 100 Swivel Safety Hook LBK LG RIGGING®

 G100 Eye Foundry Hook LG RIGGING®

 Safety Hook Dacromet G80 LG RIGGING®

 LGRIG® Grade 8 Swivel Safety Hook Dacromet

 G80 Safety Hook with Swivel Eye (Improved)

 G80 Safety Hook with Swivel Eye Ball Bearing LG RIGGING®

 Grade 80 Swivel Latch Hook LKNK with Ball Bearing LG RIGGING®

 G80 Safety Hook Eye Self-locking Hook (Improved)

 LGRIG® G80 Safety Hook Clevis Self-Locking Hook (Improved)

 LGRIG® Grade 80 Swivel Hoist Hook with Latch

 LGRIG® G80 Eye Sling Hook with Latch GS Type

 LGRIG® G80 Eye Sling Hook with Safety Latch GH Type

 G80 Viking G Hook EVG Fishing & Trawling Gear LG RIGGING®

 G80 Viking G Hook EAG for Trawl and Fishing LG RIGGING®

 Viking G hook OFG Hook G80 Alloy Steel LG RIGGING®

 Viking G Hook EG Made of Cutting Steel Plate LG RIGGING®

 LGRIG® Grade 8 Swivel Viking G Hook

 Stainless Steel Trawl G Hook Viking G Hook for Trawl LG RIGGING®

 Carabine Hook DIN5299 Form C Stainless Steel for Trawl LG RIGGING®

 Carabine Hook DIN 5299 with Screw Nut Stainless Steel for Trawl LG RIGGING®

 Carabine Hook with Spring Snap Stainless Steel for Trawling Gear LG RIGGING®

 S Hooks Stainless Steel for Trawl LG RIGGING®

 Stainless Steel Eye Hoist Hook with Latch S-320 LG RIGGING®

 Stainless Steel Swivel Eye Hook with Latch for Trawling Gear LG RIGGING®

Trawling Shackle 

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Grade 8 Swivel Safety Hook Dacromet

Brand	LGRIG®
Technical Notes	European Type
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Dacromet
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm, 32mm
Tips	Color Code: Customized according to customers' requirements
Note	Use Only Grade 80 Attachments For Overhead Lifting

Specification of LGRIG® Grade 8 Swivel Safety Hook Dacromet

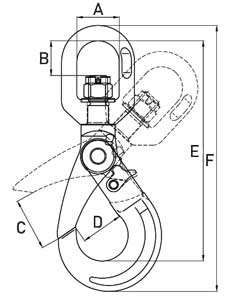

Part No.	Weight (kg)	W.L.L. (t)	B.L. (t)	A±1	B±1	C±2	D1±2	E±3	F±3
8LGSSHDA6	0.71	1.12	4.48	32.5	24	35	28	152.5	184
8LGSSHDA7/8	1.15	2	8	36	29.5	40	35.8	189	228
8LGSSHDA10	1.86	3.15	12.6	42	35	50	48	224	270
8LGSSHDA13	3.51	5.3	21.2	50	41	60	52.5	267	324
8LGSSHDA16	7.33	8	32	61	56.8	65	63.3	355.6	406
8LGSSHDA18/20	10.3	12.5	50	72	63	80	86	378.2	460.5
8LGSSHDA22	17.5	15	60	97	98	83	76	466	564
8LGSSHDA26	23	21.2	84.8	123	115	106	96	544	661
8LGSSHDA32	81	31.5	126	140	146	140	135	679	892
