Informations of LGRIG® Marine Double Bollard DIN 82607-1995

Brand	LGRIG®
Material	Steel Plate
Standard	DIN 82607-1995
Style	Marine Double Bollard

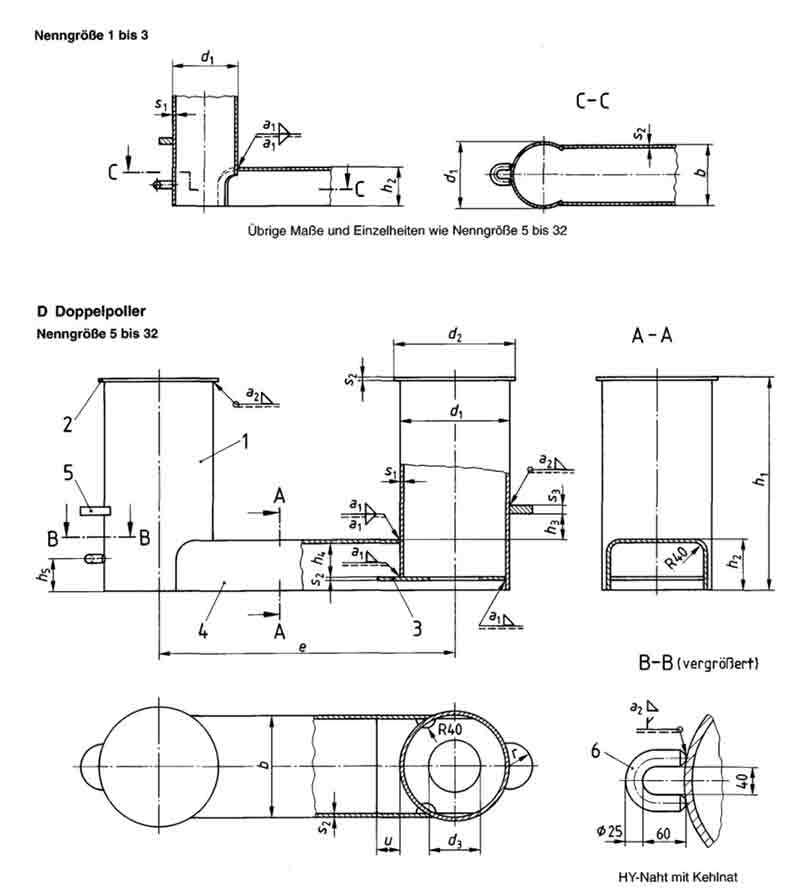

Specification of LGRIG® Marine Double Bollard DIN 82607-1995

Part No.	Nominal size	Max. Towing Load	d1xs1	b	d2	d3	e±10	h1	h2	s2	s3	u	a1	a2	Weight (kg)
LGDB82607001	1	10	139.7x6.3	130	160	-	430	370	105	5	18	-	3.5	4	21
LGDB82607002	2	20	219.1x8	180	240	-	570	475	115	6	18	-	3.5	4	53
LGDB82607003	3	32	273x10	250	300	-	700	570	135	8	25	-	4	4	102
LGDB82607005	5	50	323.9x10	300	355	150	880	670	150	8	25	70	4	4	146
LGDB82607008	8	80	355.6x14.2	330	390	170	1050	780	175	10	25	80	5	4	255
LGDB82607012	12	120	457x16	420	490	210	1200	860	195	16	35	90	6	4	456
LGDB82607020	20	200	508x17.5	470	545	235	1350	970	230	16	35	100	7	4	616
LGDB82607032	32	320	559x20	530	600	255	1400	1000	270	16	35	110	7	4	770
