Informations of LGRIG® Marine Double Bollard GBT554-1996 Type A

Brand	LGRIG®
Material	Steel Plate
Standard	GBT554-1996 Type A
Style	Marine Double Bollard

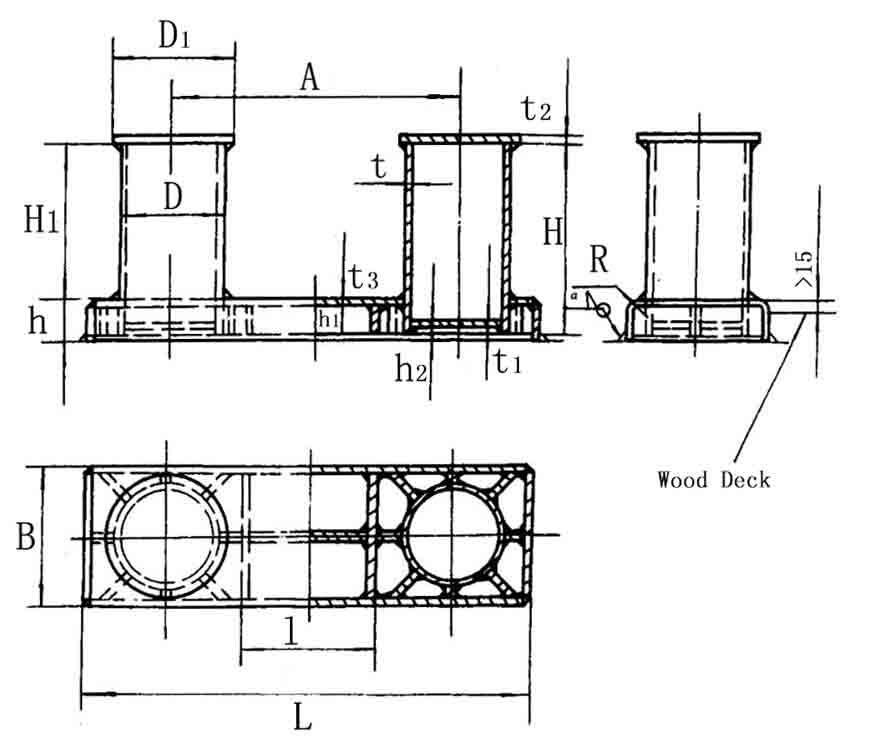

Specifications of LGRIG® Marine Double Bollard GBT554-1996 Type A


Part No.	Nominal Dia. (mm)	Max. Breaking Load KN	D	D1	h1	h2	H	H1	≧t	≧t1	t2	A	B	≧h	l	L	R	≧t3	Ribs	Weight (kg)
LGDB55496A100	100	29	114	145	40	6	196	150	10	6	7	250	165	50	70	445	15	6	6x40	19
LGDB55496A125	125	39	140	180	50	6	246	190	10	6	8	315	195	60	100	540	15	6	6x50	29
LGDB55496A160	160	49	168	210	60	6	316	250	10	6	9	400	225	70	145	670	20	6	6x60	45
LGDB55496A200	200	78	219	270	70	8	378	300	10	8	9	500	290	85	160	860	25	8	8x70	80
LGDB55496A250	250	118	273	335	80	8	470	380	11	10	9	630	360	100	215	1065	30	10	10x80	141
LGDB55496A315	315	196	325	390	105	10	597	480	15	12	9	800	430	125	325	1300	35	12	12x105	264
LGDB55496A355	355	255	351	420	120	10	663	530	170	13	12	890	480	145	360	1475	40	13	13x120	358
LGDB55496A400	400	314	402	480	135	10	749	600	18	14	12	1000	550	160	400	1630	45	14	14x135	499
LGDB55496A450	450	382	450	545	145	10	841	680	19	16	12	1130	620	170	450	1840	50	16	16x145	680
LGDB55496A500	500	451	508	610	160	12	928	750	20	18	12	1250	690	190	500	2040	55	18	18x160	911
LGDB55496A560	560	549	560	670	175	12	1025	830	22	20	12	1380	750	210	560	2240	60	20	20x175	1208
LGDB55496A630	630	868	610	730	190	12	1152	940	24	22	12	1570	820	225	680	2510	70	22	22x190	1601
LGDB55496A710	710	804	712	840	220	14	1294	1050	25	24	12	1750	960	260	710	2840	80	24	24x220	2252
LGDB55496A800	800	981	813	940	255	14	1480	1200	26	25	12	2000	1100	295	810	3240	80	25	24x255	3071
