LGRIG® Marine Double Bollard GBT554-1996 Type C
LGRIG® Marine Double Bollard GBT554-1996 Type C

LGRIG® Marine Double Bollard GBT554-1996 Type C

Marine Double Bollard, also known as Double Bitt Boat Bollard.

The GBT554-1996 marine bollard series comprises five distinct types—A, B (inserted bollard), C (simple bollard), D (single cross), and E (double cross)—each available in various nominal diameters and manufactured in full compliance with the national standard, holding approval from the China Classification Society.

Among these, the Type C double bollard is engineered for demanding marine operations such as ship mooring and towing, offering high strength through the use of cast steel or ductile iron to withstand harsh conditions including saltwater, temperature extremes, and heavy loads. Its two-horn design ensures secure and user-friendly rope handling, while its versatility accommodates various line sizes and vessel types.

As a cost-effective and low-maintenance anchoring solution with a long service life, the Type C bollard represents a durable and economically advantageous choice for port and vessel operators. Customized bollards can also be provided based on specific requirements.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Stainless Steel Grab Handle Connection-LG RIGGING®
Stainless Steel Folding Cleat-China LG Manufacture
Marine Single Cross Bollard Cleat Stainless Steel-LG RIGGING®
Stainless Steel Straight Chock-China LG Manufacture
Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware
Stainless Steel Boat Cleat Four-Hole Stainless Steel Type 4A
Stainless Steel Skene Type Fairlead-China LG Manufacture
Boat Cleat 2-Hole Low Flat Stainless Steel Type 2A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type B
LGRIG® Marine Double Bollard GBT554-1996 Type A
LGRIG® Marine Double Bollard GBT554-1996 Type B
LGRIG® Marine Double Bollard GBT554-1996 Type C
LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D
LGRIG® Marine Double Cross Bollard GBT554-1996 Type E
LGRIG® Marine Double Bollard GBT554-2008 Type A
LGRIG® Marine Double Bollard GBT554-2008 Type B
LGRIG® Marine Double Bollard GBT554-2008 Type C
LGRIG® Marine Double Cross Bollard GBT554-2008 Type DH
LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL
LGRIG® Welded Inclined Bollard CBT 169-1999
LGRIG® Marine Single Cross Bollard CBT3845-2013
LGRIG® Marine Double Bollard DIN 82607-1995
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® Marine Single Cross Bollard JIS F2804-1976
LGRIG® Marine Double Bollard ISO 13795-2012 Type A
LGRIG® Marine Double Bollard ISO 13795-2012 Type B
LGRIG® Marine Double Bollard NS 2584
LGRIG® Cast Iron Dock Bollards
LGRIG® Curved Type Bollard
LGRIG® CVI Bollards
LGRIG® Dock Inclined Double Bitts Bollard
LGRIG® J Type Dock Bollards
LGRIG® K Head Dock Bollards
LGRIG® R Type Dock Bollards
LGRIG® Single Bitt Bollard
LGRIG® Stag Horn Type Bollard
LGRIG® T Head Dock Bollards
LGRIG® Twin Horn Bollard
LGRIG® Y Type Dock Bollards
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Informations of LGRIG® Marine Double Bollard GBT554-1996 Type C

Brand

LGRIG®

Material

Steel Plate

Standard

GBT554-1996 Type C

Style

Marine Double Bollard

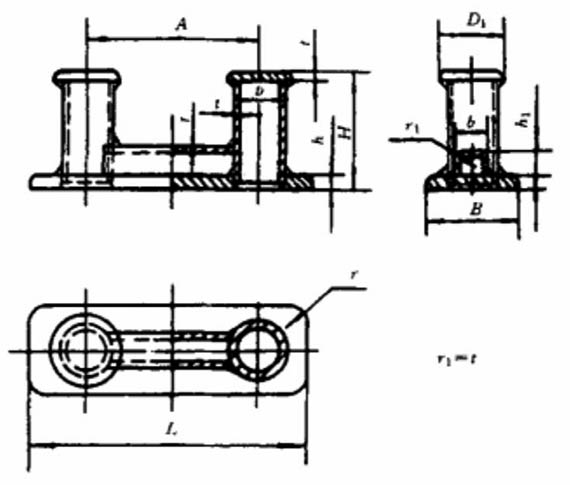

Specifications of LGRIG® Marine Double Bollard GBT554-1996 Type C


Part No.

Nominal

Dia.

(mm)

Max.

Breaking

Load

KN

A

b

B

D

D1

h

h1

H

L

r

t

Weight

(kg)

LGDB55496C050

50

13

180

32

100

50

65

9

26

115

310

20

6

4.5

LGDB55496C075

75

18

275

50

125

75

95

12

43

170

430

20

7

10.8

LGDB55496C100

100

25

350

65

160

100

120

14

51

220

540

25

7

18.6

LGDB55496C125

125

34

430

80

200

125

145

15

60

275

676

28

9

34.3

LGDB55496C150

150

43

500

100

230

150

170

16

70

330

800

35

9

49


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Cleats & Fairleads

LGRIG® Marine Double Bollard ISO 13795-2012 Type B
LGRIG® Marine Double Bollard ISO 13795-2012 Type B
LGRIG® Single Bitt Bollard
LGRIG® Single Bitt Bollard
LGRIG® K Head Dock Bollards
LGRIG® K Head Dock Bollards
LGRIG® Marine Double Cross Bollard GBT554-1996 Type E
LGRIG® Marine Double Cross Bollard GBT554-1996 Type E
LGRIG® Marine Double Bollard GBT554-2008 Type C
LGRIG® Marine Double Bollard GBT554-2008 Type C
LGRIG® Y Type Dock Bollards
LGRIG® Y Type Dock Bollards
LGRIG® Marine Double Bollard ISO 13795-2012 Type A
LGRIG® Marine Double Bollard ISO 13795-2012 Type A
LGRIG® T Head Dock Bollards
LGRIG® T Head Dock Bollards
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
