Informations of LGRIG® Marine Double Bollard GBT554-2008 Type A

Brand	LGRIG®
Material	Steel Plate
Standard	GBT554-2008 Type A
Style	Marine Double Bollard

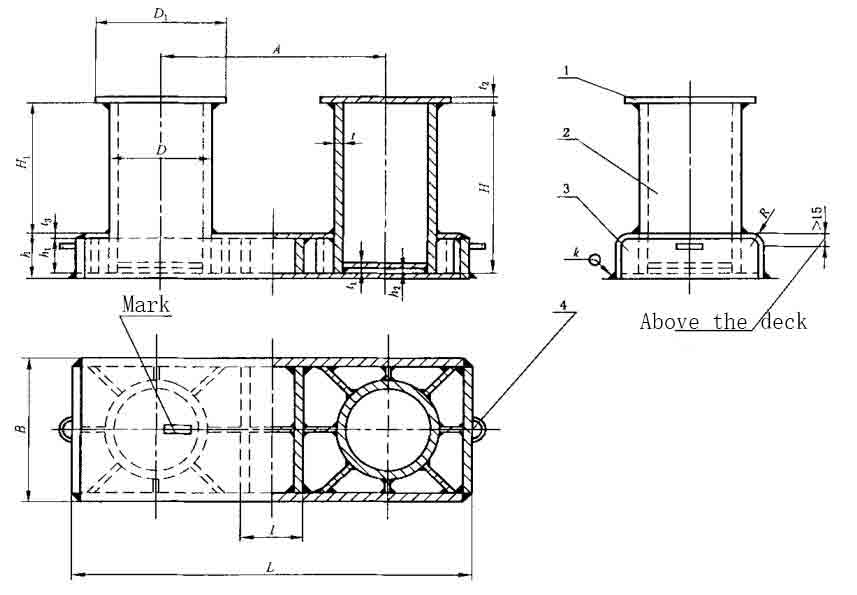

Specifications of LGRIG® Marine Double Bollard GBT554-2008 Type A


Form 1-1:

Part No.	Nomianal size	SWL (KN)	Pillar
Part No.	Nomianal size	SWL (KN)	D	D1	h1	h2	H	H1	t	t1	t2
LGDB55408A100	100	29	114	145	40	6	196	150	10	6	7
LGDB55408A125	125	39	140	180	50	6	246	190	10	6	8
LGDB55408A160	160	49	168	210	60	8	316	250	10	6	9
LGDB55408A200	200	78	219	270	70	8	378	300	10	8	9
LGDB55408A250	250	118	273	335	80	8	470	380	11	10	9
LGDB55408A315	315	196	325	390	105	10	597	480	15	12	9
LGDB55408A355	355	255	351	420	120	10	663	530	17	13	12
LGDB55408A400	400	314	402	480	135	10	749	600	18	14	12
LGDB55408A450	450	382	450	545	145	10	841	680	19	16	12
LGDB55408A500	500	451	508	610	160	12	928	750	20	18	12
LGDB55408A560	560	549	560	670	175	12	1025	830	22	20	12
LGDB55408A630	630	686	610	730	190	12	1152	940	24	22	12
LGDB55408A710	710	804	712	840	220	14	1294	1050	25	24	12
LGDB55408A800	800	981	813	940	255	14	1480	1200	26	25	12

Form 1-2:

Part No.	Nomianal size	Base									Weight
Part No.	Nomianal size	A	B	h >=	l	L	R	t3 >=	Stiffener	k	(kg)
LGDB55408A100	100	250	165	50	70	445	15	6	6x40	4	19
LGDB55408A125	125	315	195	60	100	540	15	6	6x50	4	29
LGDB55408A160	160	400	225	70	145	670	20	6	6x60	4	45
LGDB55408A200	200	500	290	85	160	860	25	8	8x70	6	80
LGDB55408A250	250	630	360	100	215	1065	30	10	10x80	8	141
LGDB55408A315	315	800	430	125	325	1300	35	12	12x105	10	264
LGDB55408A355	355	890	480	145	360	1475	40	13	13x120	10	358
LGDB55408A400	400	1000	550	160	400	1630	45	14	14x135	10	499
LGDB55408A450	450	1130	620	170	450	1840	50	16	16x145	12	680
LGDB55408A500	500	1250	690	190	500	2040	55	18	18x160	12	911
LGDB55408A560	560	1380	750	210	560	2240	60	20	20x175	14	1208
LGDB55408A630	630	1570	820	225	680	2510	70	22	22x190	14	1601
LGDB55408A710	710	1750	960	260	710	2840	80	24	24x220	16	2252
LGDB55408A800	800	2000	1100	295	810	3240	80	25	25x255	16	3071
	Note: The mass is calculated when the height of the base is equal to h.
