LGRIG® Marine Double Bollard GBT554-2008 Type C
LGRIG® Marine Double Bollard GBT554-2008 Type C

LGRIG® Marine Double Bollard GBT554-2008 Type C

Marine Double Bollard, also known as Double Bitt Boat Bollard.

GBT 554-2008 specifies the requirements for Type C marine double bollards, which consist of two cylindrical horns mounted on a common base plate to secure larger vessels to docks with higher load-bearing capacity.

Constructed from cast steel or ductile iron, these bollards must withstand a minimum breaking load of 100 tons, rotate freely on their base, and prevent damage to mooring lines.

The series includes five variants: Type A (ordinary), Type B (embedded), Type C (simple), Type DL (double cross screw-fixed), and Type DH (double cross weld-fixed), each with different nominal diameters.

All bollards comply with the national standard and carry China Classification Society certification, with customized solutions available upon request.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Stainless Steel Grab Handle Connection-LG RIGGING®
Stainless Steel Folding Cleat-China LG Manufacture
Marine Single Cross Bollard Cleat Stainless Steel-LG RIGGING®
Stainless Steel Straight Chock-China LG Manufacture
Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware
Stainless Steel Boat Cleat Four-Hole Stainless Steel Type 4A
Stainless Steel Skene Type Fairlead-China LG Manufacture
Boat Cleat 2-Hole Low Flat Stainless Steel Type 2A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type B
LGRIG® Marine Double Bollard GBT554-1996 Type A
LGRIG® Marine Double Bollard GBT554-1996 Type B
LGRIG® Marine Double Bollard GBT554-1996 Type C
LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D
LGRIG® Marine Double Cross Bollard GBT554-1996 Type E
LGRIG® Marine Double Bollard GBT554-2008 Type A
LGRIG® Marine Double Bollard GBT554-2008 Type B
LGRIG® Marine Double Bollard GBT554-2008 Type C
LGRIG® Marine Double Cross Bollard GBT554-2008 Type DH
LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL
LGRIG® Welded Inclined Bollard CBT 169-1999
LGRIG® Marine Single Cross Bollard CBT3845-2013
LGRIG® Marine Double Bollard DIN 82607-1995
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® Marine Single Cross Bollard JIS F2804-1976
LGRIG® Marine Double Bollard ISO 13795-2012 Type A
LGRIG® Marine Double Bollard ISO 13795-2012 Type B
LGRIG® Marine Double Bollard NS 2584
LGRIG® Cast Iron Dock Bollards
LGRIG® Curved Type Bollard
LGRIG® CVI Bollards
LGRIG® Dock Inclined Double Bitts Bollard
LGRIG® J Type Dock Bollards
LGRIG® K Head Dock Bollards
LGRIG® R Type Dock Bollards
LGRIG® Single Bitt Bollard
LGRIG® Stag Horn Type Bollard
LGRIG® T Head Dock Bollards
LGRIG® Twin Horn Bollard
LGRIG® Y Type Dock Bollards
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Informations of LGRIG® Marine Double Bollard GBT554-2008 Type C

Brand

LGRIG®

Material

Steel Plate

Standard

GBT554-2008 Type C

Style

Marine Double Bollard

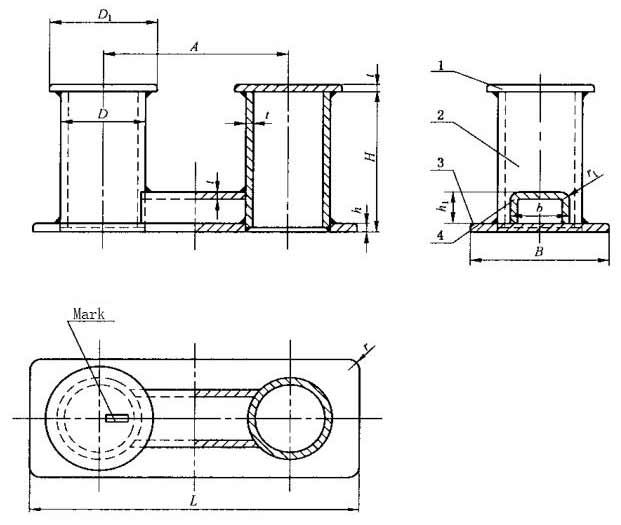

Specifications of LGRIG® Marine Double Bollard GBT554-2008 Type C


Part No.

Nominal

Dia.

Max.

Breaking

Load

(KN)

A

b

B

D

D1

h

h1

H

L

r

t

Weight

(kg)

LGDB55408C050

50

13

180

32

100

50

65

9

26

115

310

20

6

4.5

LGDB55408C075

75

18

275

50

125

75

95

12

43

170

430

20

7

10.8

LGDB55408C100

100

25

350

65

160

100

120

14

51

220

540

25

7

18.6

LGDB55408C125

125

34

430

80

200

125

145

15

60

275

676

28

9

34.3

LGDB55408C150

150

43

500

100

230

150

170

16

70

330

800

35

9

49.0


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Cleats & Fairleads

LGRIG® Marine Single Cross Bollard GB 10106-88 Type A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type A
Stainless Steel Grab Handle Connection-LG RIGGING®
Stainless Steel Grab Handle Connection-LG RIGGING®
LGRIG® R Type Dock Bollards
LGRIG® R Type Dock Bollards
LGRIG® Twin Horn Bollard
LGRIG® Twin Horn Bollard
LGRIG® Marine Double Bollard DIN 82607-1995
LGRIG® Marine Double Bollard DIN 82607-1995
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® T Head Dock Bollards
LGRIG® T Head Dock Bollards
LGRIG® Y Type Dock Bollards
LGRIG® Y Type Dock Bollards
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
