Information of LGRIG® Marine Double Bollard NS 2584

Brand	LGRIG®
Material	Steel Plate
Standard	NS 2584
Style	Marine Double Bollard

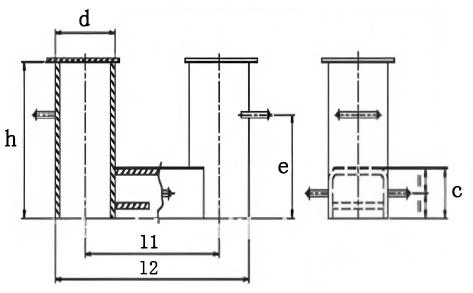

Specification of LGRIG® Marine Double Bollard NS 2584

Part No.	Type	f		Dimensions(mm)						Weight (kg)
Part No.	Type	M	T	d	c	e	h	l1	l2	Weight (kg)
LGDBNS25840125	125	4.5	13.2	140	80	165	250	315	455	26
LGDBNS25840160	160	5.6	15.8	168	90	195	300	400	568	37
LGDBNS25840200	200	10.2	29	219	100	250	400	500	719	75
LGDBNS25840250	250	13.2	37.2	273	125	315	500	630	903	124
LGDBNS25840315	315	20.9	55	324	150	375	600	800	1124	230
LGDBNS25840400	400	28.5	75.4	406	175	435	700	1000	1406	356
LGDBNS25840500	500	52	123.4	508	200	515	830	1250	1758	723
LGDBNS25840630	630	62.7	158.1	610	225	615	1000	1570	2180	1084
LGDBNS25840710	710	83.1	219.3	711	250	675	1100	1750	2461	1532
