Informations of LGRIG® Marine Double Cross Bollard GBT554-1996 Type E

Brand	LGRIG®
Material	Steel Plate
Standard	GBT554-1996 Type E
Style	Marine Double Cross Bollard

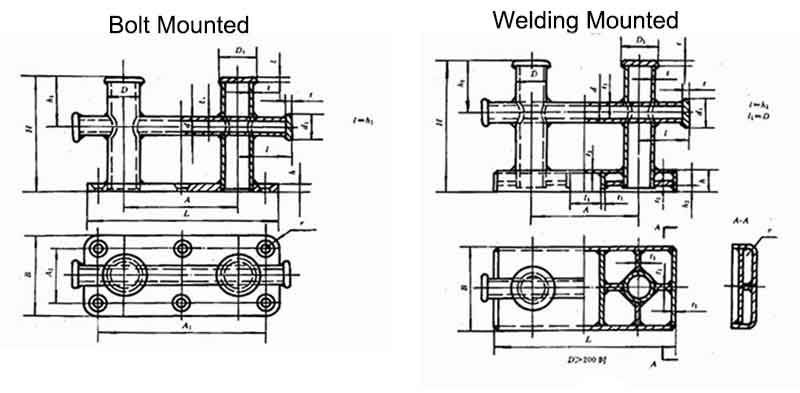

Specifications of LGRIG® Marine Double Cross Bollard GBT554-1996 Type E


Part No.	Nominal Dia.	Max. Dia.			D	D1	L	B	H	h	h1	h2	t	t1	d	d1	r	A	A1	A2	Screw		WT. (kg)
		Steel Rope	Hemp Rope	Synthetic Carbon Fiber Rope																	Screw
		Steel Rope	Hemp Rope	Synthetic Carbon Fiber Rope																	Dia.	Q'ty
LGDCB554E050	50	8.7	75	16	50	65	310	130	190	8	85	-	6	4	32	40	20	180	270	90	M12	6	7
LGDCB554E075	75	11.5	90	20	75	95	450	170	290	10	130	-	7	5	48	56	25	275	400	125	M16	6	16
LGDCB554E100	100	13.5	100	24	100	120	550	200	350	12	160	-	7	5	65	75	28	350	494	144	M18	6	27
LGDCB554E125	125	15.5	125	28	125	145	660	240	425	14	195	-	9	7	80	95	35	425	590	170	M22	6	49
LGDCB554E150	150	17.5	150	30	150	170	770	270	500	16	210	-	9	7	90	110	35	500	700	200	M22	6	71
LGDCB554E175	175	19.5	175	36	180	200	850	320	550	18	240	-	10	8	110	125	38	530	774	244	M24	6	103
LGDCB554E200	200	22.5	200	40	203	225	960	360	795	145	275	60	12	9	130	145	20	600	-	-	-	-	181
LGDCB554E250	250	26	225	48	245	280	1200	350	855	155	350	60	14	12	159	180	25	750	-	-	-	-	310
LGDCB554E300	300	30.5	250	56	290	330	1440	540	1160	180	420	73	16	14	194	215	30	900	-	-	-	-	576
