Informations of LGRIG® Marine Single Cross Bollard CBT3845-2013

Brand	LGRIG®
Material	Steel Plate
Standard	CBT3845-2013
Style	Marine Single Cross Bollard

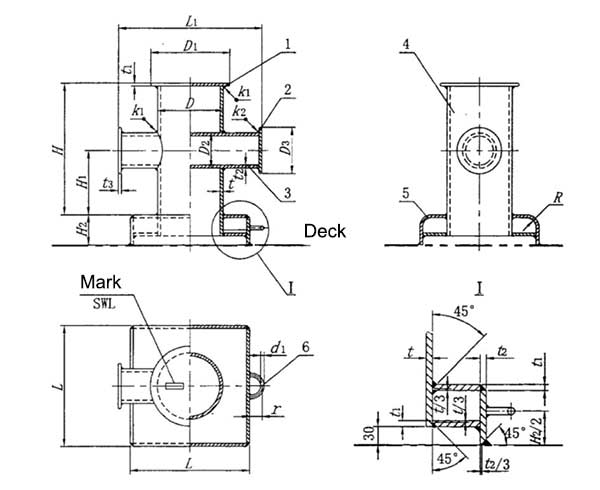

Specifications of LGRIG® Marine Single Cross Bollard CBT3845-2013


Form 1-1:

Part No.	Nominal Dia. (mm)	SWL (KN)	D	t		D1	t1	D2	t2	D3	t3
Part No.	Nominal Dia. (mm)	SWL (KN)	D	Steel Pipe	Steel Plate	D1	t1	D2	t2	D3	t3
LGCB38450150	100	50	114	-	10	150	10	60	6.3	80	10
LGCB38450125	125	80	140	10	10	190	10	76	8	95	10
LGCB38450150	150	100	168	10	10	225	10	89	8	110	10
LGCB38450200	200	150	219	10	10	265	10	114	10	150	10
LGCB38450250	250	250	273	12.5	11	325	11	140	10	190	10
LGCB38450300	300	400	325	16	15	400	15	168	10	225	10
LGCB38450350	350	500	355	19	16	450	-	16	10	219	10
LGCB38450400	400	650	406	20	18	480	18	219	10	260	10

Form 1-2:

Part No.	Nominal Dia. (mm)	H	H1	H2	L	L1	R	r	d1	Welding foot		Weight (kg)
Part No.	Nominal Dia. (mm)	H	H1	H2	L	L1	R	r	d1	k1	k2	Weight (kg)
LGCB38450150	100	210	105	75	200	240	20	25	10	6	5	19
LGCB38450125	125	270	135	80	250	300	20	25	10	6	5	31
LGCB38450150	150	340	170	90	315	360	25	25	10	7	5	47
LGCB38450200	200	420	210	100	400	460	25	30	12	7	5	78
LGCB38450250	250	520	260	125	500	580	40	30	12	9	5	134
LGCB38450300	300	660	330	150	630	725	50	35	16	9	6	267
LGCB38450350	350	800	360	170	700	850	50	35	16	9	6	360
LGCB38450400	400	820	410	175	800	950	50	35	16	11	6	503
