Informations of LGRIG® Marine Single Cross Bollard GB 10106-88 Type B

Brand	LGRIG®
Material	Steel Plate
Standard	GB 10106-88 Type B
Style	Marine Single Cross Bollard

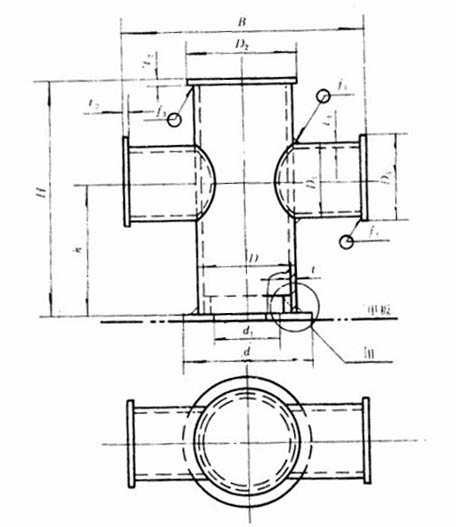

Specifications of LGRIG® Marine Single Cross Bollard GB 10106-88 Type B


Part No.	Nominal Dia.	Max. Breaking Load of Applicable Wire KN(tf)	Max.Dia.of Applicable Rope					H	B	h	D	D1	D2
			Wire rope			Synthetic Carbon Fiber Rope	Hemp Rope
			6x24	6x30	6x37	Synthetic Carbon Fiber Rope	Hemp Rope
LGCB10106B150	150	117(12)	15	15	13	30	44	480	460	280	168	114	206
LGCB10106B200	200	225(26)	22.5	24	19.5	45	64	560	520	320	219	168	260
LGCB10106B250	250	382(39)	28	30	26	56	80	640	610	360	273	219	310
LGCB10106B300	300	549(56)	33.5	34.5	30	70	104	680	660	380	325	273	360
LGCB10106B350	350	686(70)	37.5	39	34.5	77	120	720	720	420	351	273	400

Continue:

Part No.	Nominal Dia.	D3	d	d1	t	t1	t2	t3	Weight (kg)
LGCB10106B150	150	158	240	120	10	9	8	8	33
LGCB10106B200	200	210	280	140	14	10	10	10	66
LGCB10106B250	250	260	340	170	14	12	12	12	105
LGCB10106B300	300	310	400	200	16	14	14	14	153
LGCB10106B350	350	314	440	240	20	14	14	14	204
