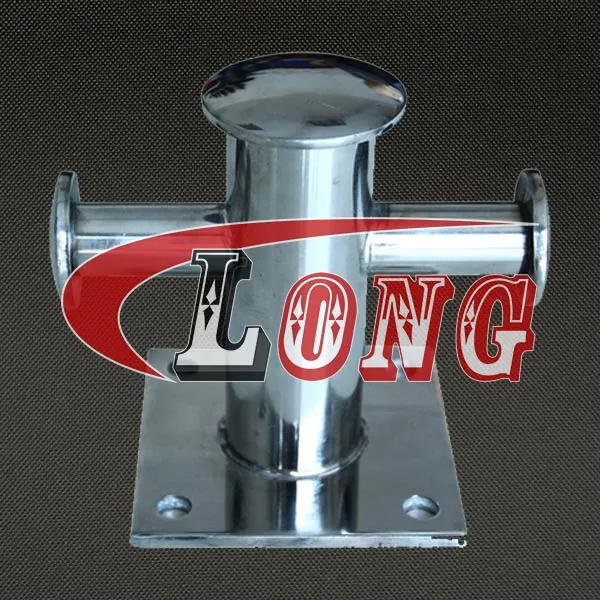

Name: LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Stainless Marine Hinges 

Bimini Top Fittings 

Cleats & Fairleads 

 Stainless Steel Grab Handle Connection-LG RIGGING®

 Stainless Steel Folding Cleat-China LG Manufacture

 Marine Single Cross Bollard Cleat Stainless Steel-LG RIGGING®

 Stainless Steel Straight Chock-China LG Manufacture

 Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware

 Stainless Steel Boat Cleat Four-Hole Stainless Steel Type 4A

 Stainless Steel Skene Type Fairlead-China LG Manufacture

 Boat Cleat 2-Hole Low Flat Stainless Steel Type 2A

 LGRIG® Marine Single Cross Bollard GB 10106-88 Type A

 LGRIG® Marine Single Cross Bollard GB 10106-88 Type B

 LGRIG® Marine Double Bollard GBT554-1996 Type A

 LGRIG® Marine Double Bollard GBT554-1996 Type B

 LGRIG® Marine Double Bollard GBT554-1996 Type C

 LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D

 LGRIG® Marine Double Cross Bollard GBT554-1996 Type E

 LGRIG® Marine Double Bollard GBT554-2008 Type A

 LGRIG® Marine Double Bollard GBT554-2008 Type B

 LGRIG® Marine Double Bollard GBT554-2008 Type C

 LGRIG® Marine Double Cross Bollard GBT554-2008 Type DH

 LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL

 LGRIG® Welded Inclined Bollard CBT 169-1999

 LGRIG® Marine Single Cross Bollard CBT3845-2013

 LGRIG® Marine Double Bollard DIN 82607-1995

 LGRIG® Marine Double Bollard JIS F2001-1995

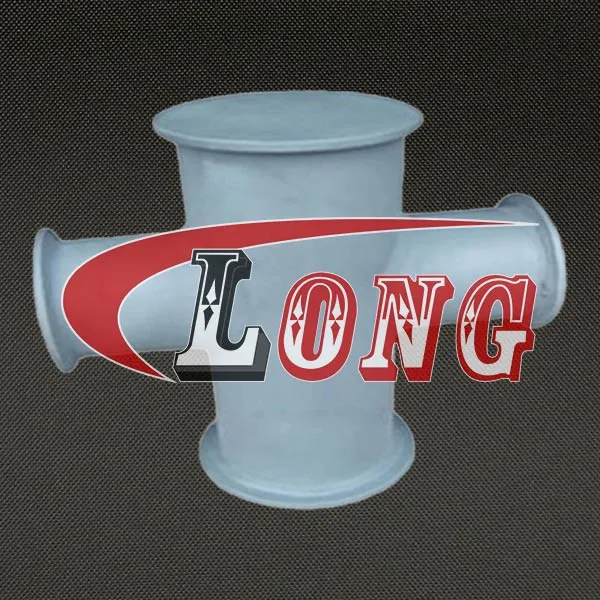

 LGRIG® Marine Single Cross Bollard JIS F2804-1976

 LGRIG® Marine Double Bollard ISO 13795-2012 Type A

 LGRIG® Marine Double Bollard ISO 13795-2012 Type B

 LGRIG® Marine Double Bollard NS 2584

 LGRIG® Cast Iron Dock Bollards

 LGRIG® Curved Type Bollard

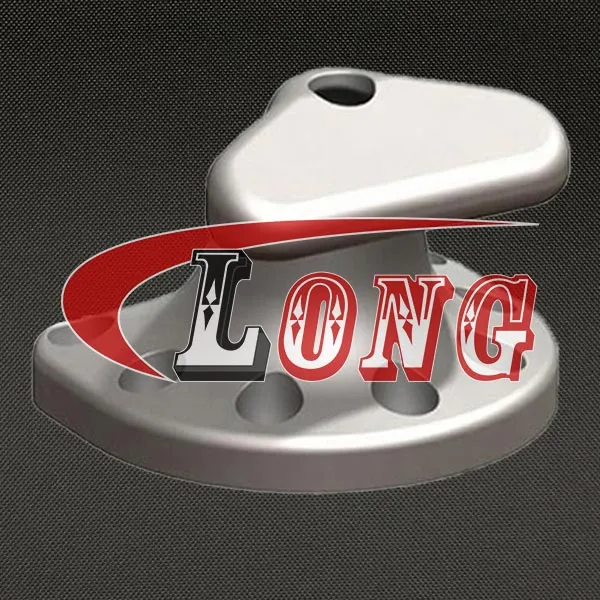

 LGRIG® CVI Bollards

 LGRIG® Dock Inclined Double Bitts Bollard

 LGRIG® J Type Dock Bollards

 LGRIG® K Head Dock Bollards

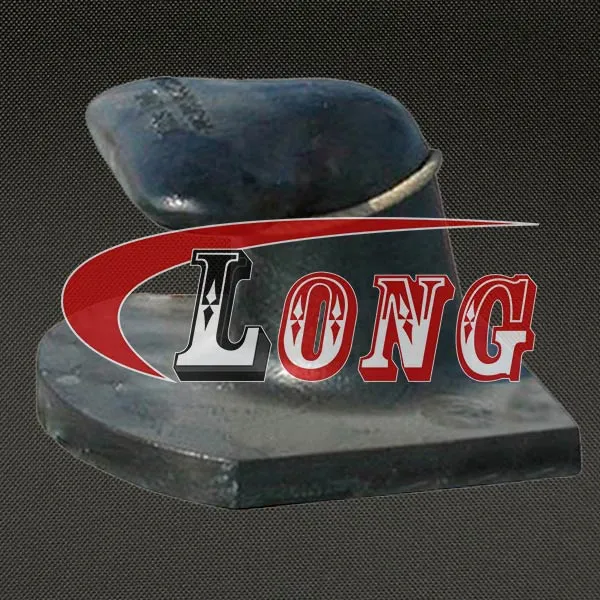

 LGRIG® R Type Dock Bollards

 LGRIG® Single Bitt Bollard

 LGRIG® Stag Horn Type Bollard

 LGRIG® T Head Dock Bollards

 LGRIG® Twin Horn Bollard

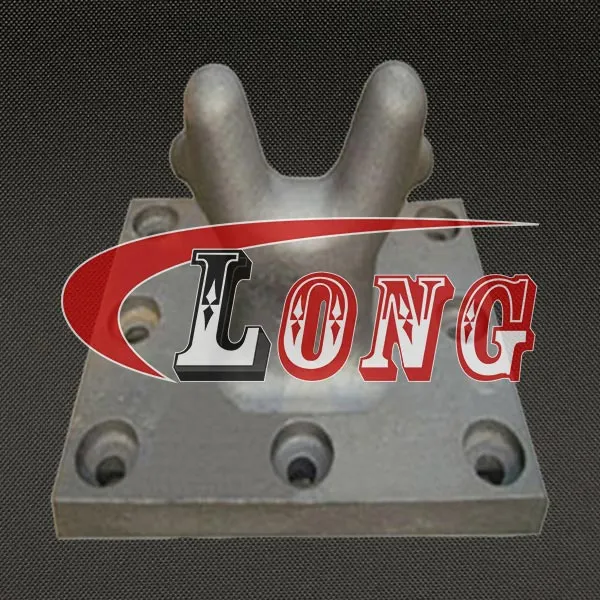

 LGRIG® Y Type Dock Bollards

Angle Bracket 

Rail Fittings 

Thru-Hull & Deck Fittings 

Stainless Latches 

Mooring Compensators / Springs 

Brake Lining 

Pole Line Hardware

 

Building Components

 

Informations of LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D

Brand	LGRIG®
Material	Stainless Steel
Standard	GBT554-1996 Type D
Style	Marine Single Cross Bollard

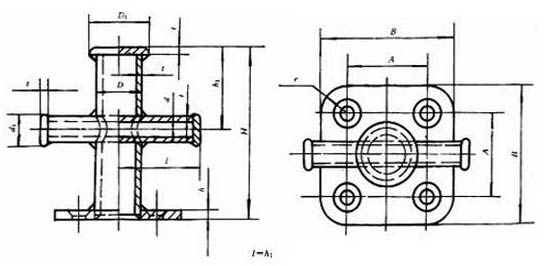

Specifications of LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D


Part No.	Nominal Dia. (mm)	Max. Dia.			D	D1	B	H	h	h1	t	d	d1	r	A	Screw		Weight (kg)
Part No.	Nominal Dia. (mm)	Steel Rope	Hemp Rope	Synthetic Carbon Fiber Rope	D	D1	B	H	h	h1	t	d	d1	r	A	Screw Dia.	Quantity	Weight (kg)
LGSSCB55496D050	50	8.7	75	16	50	65	135	190	8	85	6	25	35	25	85	M16	4	2.8
LGSSCB55496D075	75	11.5	90	20	75	95	185	290	12	135	7	42	52	35	115	M22	4	8
LGSSCB55496D100	100	13.5	100	24	100	120	235	350	18	160	7	50	65	40	155	M27	4	15
