Information of Lifting Eye Hook with Latch DIN689

Technical Notes	Conform to DIN689
Material	Superior Carbon Steel
Processing	Drop Forged, Quenched & Tempered
Finish	Self-Colored, Eletric Galvanized
Size	250kgs, 500kgs, 750kgs, 1000kgs, 1600kgs, 2500kgs, 3000kgs
Safety Factor	4:1
Packing	In cartons, then pallets, or as customer’s requests.

Specifications of Lifting Eye Hook with Latch DIN689

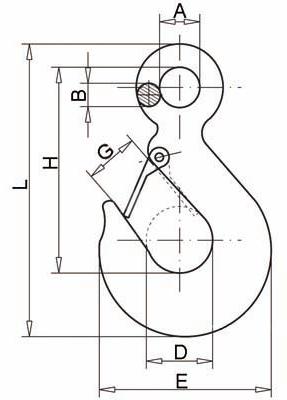

Part No.	Size	W.L.L[kg]	A [mm]	B [mm]	D [mm]*	E [mm]	G [mm]	H [mm]	L [mm]
LGDIN689EH01	250KG	250	13	7.5	23	54	15	64	89
LGDIN689EH02	500KG	500	16	10	30.5	72	22	83.5	118
LGDIN689EH03	1000KG	1000	20	13.5	40	98	25	114	162
LGDIN689EH04	1500KG	1500	27	13	35	93	23	103	142
LGDIN689EH05	1600KG	1600	26	17	47	116.5	31	136	190
LGDIN689EH06	3000KG	3000	38	19	46	125	26.5	145	204
