Information of LGRIG® Long Link Proof Coil Chain Australian Standard

Brand	LGRIG®
Standard	Long link chain Conform to Australian Standard
Material	Low grade carbon steel
Processing	Welded
Finish	Hot Dipped Galvanised, Electro Galvanised and Self Colored
Size	5mm, 6mm, 8mm, 10mm
Tips	Proof tested to at least twice the maximum static load indicated.
Country of Origin	China

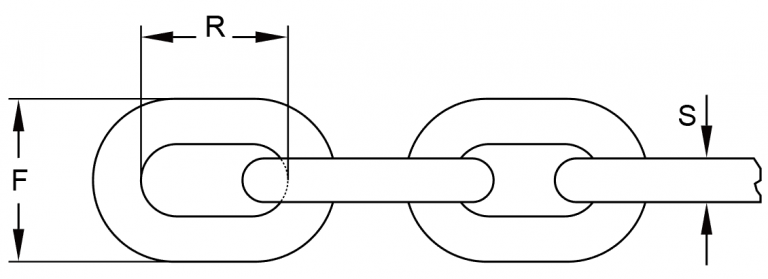

Specifications of LGRIG® Long Link Proof Coil Chain Australian Standard


Part No.	CHAIN SIZE	WORKING LOAD	LINK DIMENSION			LINKS PER M	LENGTH PER 100KG
	CHAIN SIZE	WORKING LOAD	S	R	F	LINKS PER M	B.F.	H.D.G.
	MM	MT	MM	MM	MM	PC	M	M
LGCASL03	4	0.05	3.15	22.1	15.7	45.3	555	526
LGCASL04	4	0.09	4	25.4	18.6	39.3	345	323
LGCASL05	5	0.19	5	29.3	21.8	34.1	217	206
LGCASL06	6	0.32	6.3	34.5	26.1	29	135	128
LGCASL08	8	0.53	8	41.2	31.9	24.3	82.2	78.1
LGCASL10	10	0.83	10	49	38.7	20.4	52.9	50.2
