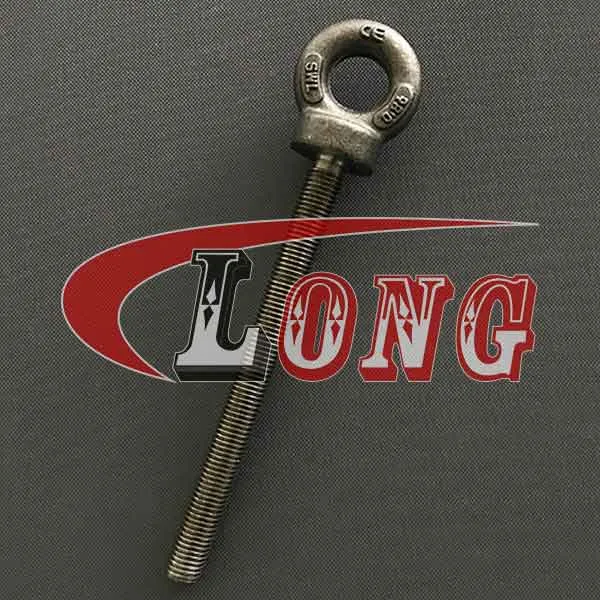

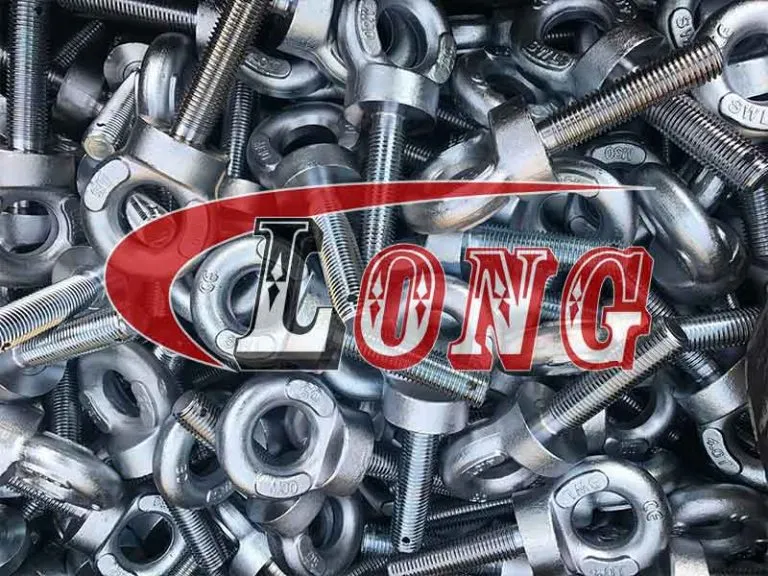

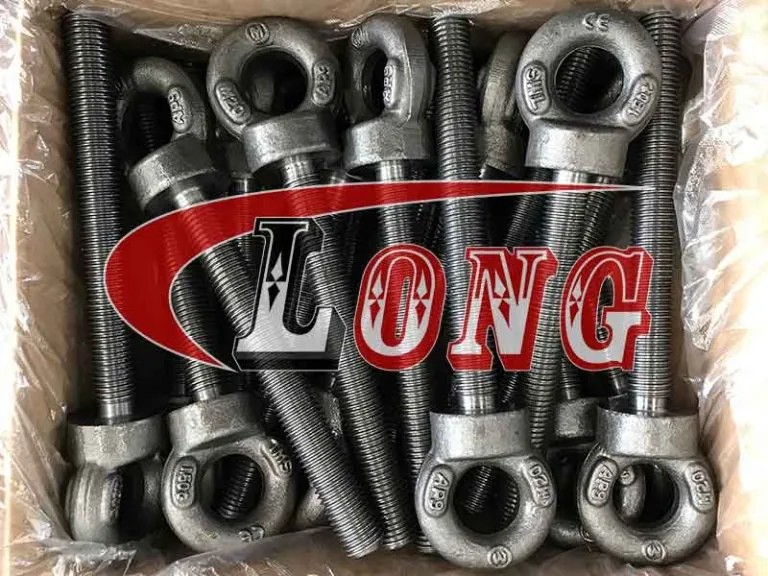

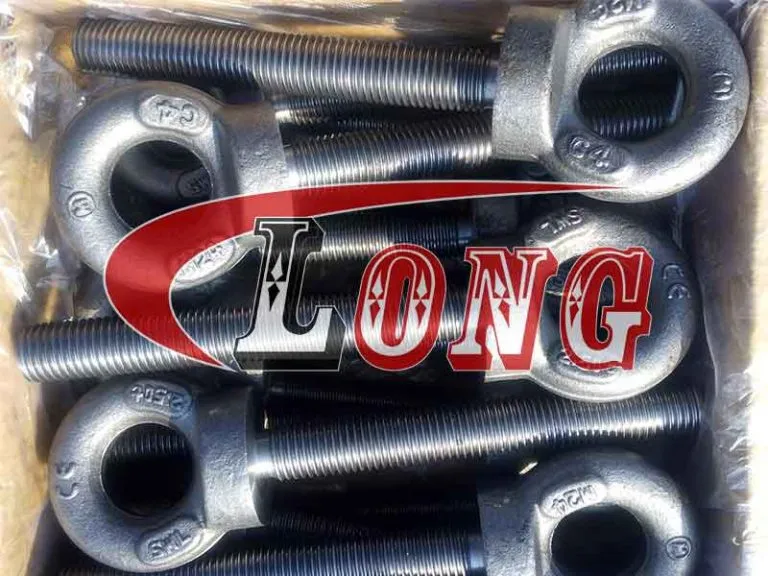

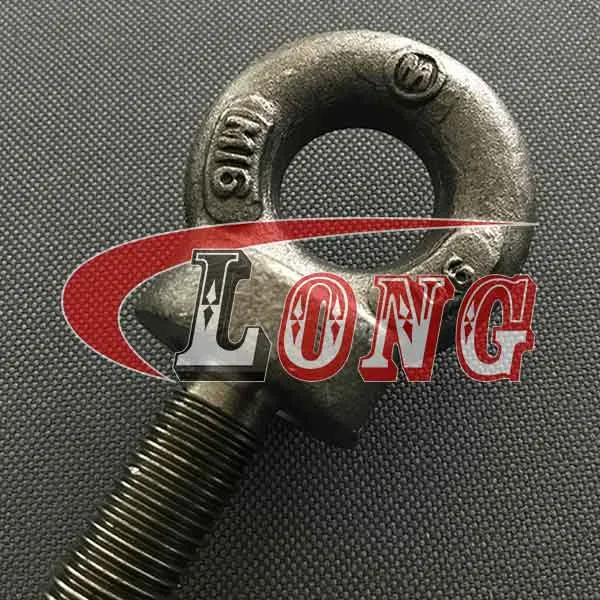

Name: LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

 LGRIG® Collared Eyebolt BS 4278 Table 1 Metric

 LGRIG® Fork Head Clevis Joint DIN71752

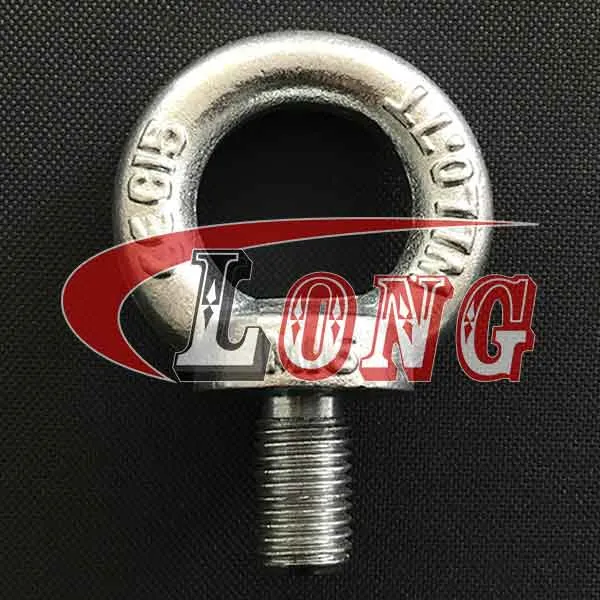

 LGRIG® DIN580 Eye Bolt Galvanized

 LGRIG® DIN 582 Lifting Eye Nut

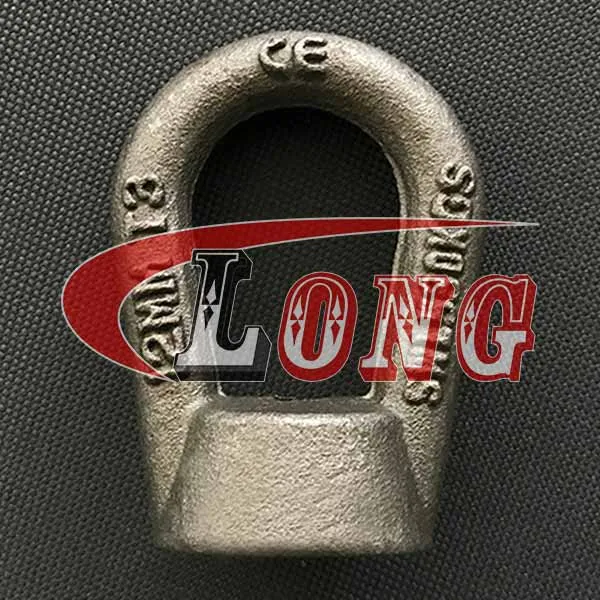

 LGRIG® Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

 LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1

 LGRIG® Collared Eyebolt With Oval Link Metric BS 4278 Table 2

 LGRIG® Dynamo Eyebolt with Enlarged Eye BS 4278 Table 3 Metric

 LGRIG® Long Shank Metric Dynamo Eyebolts to BS 4278 Table 3

 LGRIG® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

 LGRIG® JIS B 1169 Forged Eye Nut

 LGRIG® Forged Shoulder Machinery Eye Bolt LGS-279/LGM-279

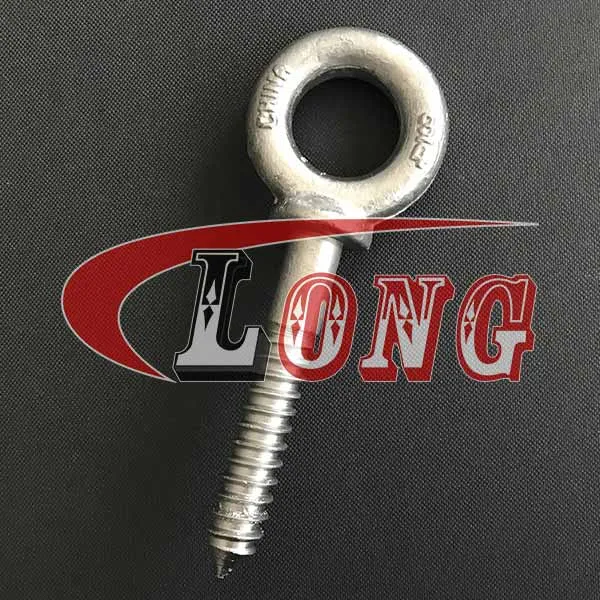

 LGRIG® Forged Screw Eye Bolts LG-275

 LGRIG® Forged Shoulder Nut Eye Bolts LG-277

 LGRIG® Regular Nut Eye Bolts LG-291

 LGRIG® G-400 Eye Nut Galvanized UNC Threaded

 LGRIG® Rectangular Base Deck Eye Plates

 LGRIG® DIN 444 Swing Eye Bolt

 LGRIG® Wood Lag Screw w/Ring Thread Ring Bolt

 LGRIG® Welded Eye Bolt Wire Turned with Lock nut

 LGRIG® Unwelded Eye Bolt Wire Turned

 LGRIG® Lag Screw Eye Bolts Welded

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1

Brand	LGRIG®
Material	High Tensile Steel C1045
Processing	Forged + Machining + Quenched and Tempered
Finish	Self-colored / Electric Galvanized
Size	10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 30mm
Marking	Size, WLL& CE.
Country of Origin	China

Specifications of LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1

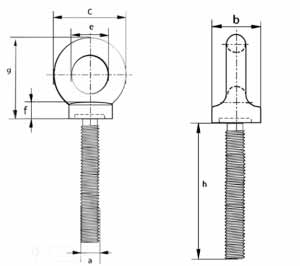

Part No.	S.W.L.	Dia. thread	Dia. base	Dia. Eye outside	Dia. Eye inside	thickness collar	height	Thread length	Weight Each
	S.W.L.	a	b	c	e	f	g	h	Weight Each
	tonnes	mm							kgs
LG4278T1L10	0.25	10	22	33	15	7	36	178	0.18
LG4278T1L12	0.4	12	28	41	19	11	45	178	0.25
LG4278T1L14	0.5	14	36	52	24	14	58	178	0.4
LG4278T1L16	0.8	16	36	52	24	14	58	178	0.44
LG4278T1L18	1	18	43	62	29	17	69	178	0.7
LG4278T1L20	1.6	20	43	62	29	17	69	178	0.7
LG4278T1L22	1.6	22	50	73	33	17	74	178	1.05
LG4278T1L24	2.5	24	57	82	38	19	87	178	1.5
LG4278T1L30	4	30	71	104	48	24	116	178	2.8
