Information of Pear Shaped Spring Snap Hooks

Material	Superior Mild Steel pear shaped spring snap hook
Finish	Electric Galvanized
Size	5x50mm,6x60mm,7X70mm,8x80mm,9X90mm,10x100mm,11x120mm,12X140mm
Tips	Fast, easy attachment for permanent or temporary connection.

Specifications of Pear Shaped Spring Snap Hooks

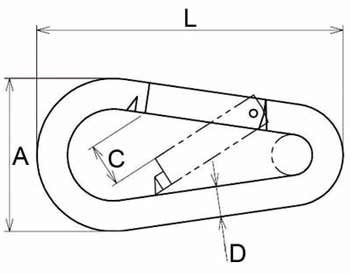

Part No.	Size	A	C	D	L	W.L.L	N.W.
Mild Steel	mm					lbs	kgs/100pcs
LG-SH-P-5×50	5×50	25	7	5	50	100	1.7
LG-SH-P-6×60	6×60	30	8	6	60	140	2.5
LG-SH-P-7×70	7×70	35	8	7	70	200	4.4
LG-SH-P-8×80	8×80	40	9	8	80	250	6.6
LG-SH-P-9×90	9×90	45	10	9	90	280	9.3
LG-SH-P-10×100	10×100	50	11	10	100	400	13
LG-SH-P-11×120	11×120	57	16	11	120	500	18.5
LG-SH-P-12×140	12×140	67	19	12	140	600	25
