Information of LGRIG® Quick Link Zinc Plated Steel

Brand	LGRIG®
Material	Mild Steel Oval Quick Link, Stainless steel 304 / 316 is also available
Processing	Stamping
Finish	Electric galvanized, Zinc Plated / Black Electrophoretic Coating / Highly Polished
Safety Factor	2.5:1
Size	3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm
Country of Origin	China

Specifications of LGRIG® Quick Link Zinc Plated Steel

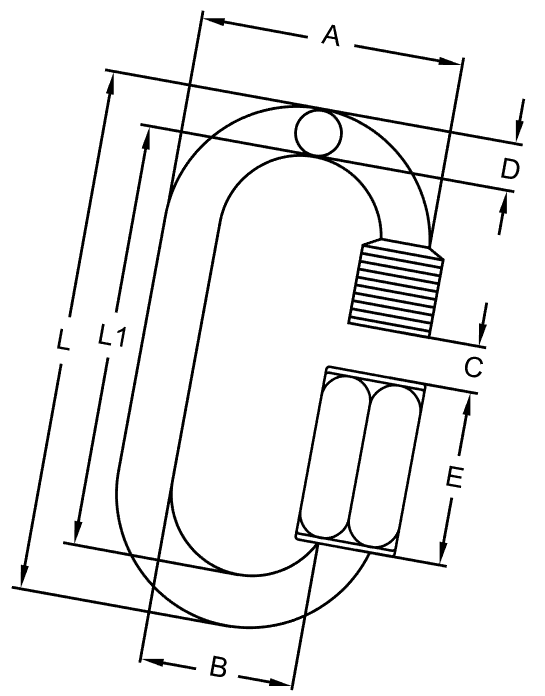

Part No.		Size	A	B	C	D	L	L1	E	W.L.L	N.W.
Carbon Steel	Stainless Steel	mm								lbs	kgs/100pcs
LGCQLS3.5	LGSSQLS3.5	3.5	17	10	5	3.5	36	29	11	175	0.8
LGCQLS4	LGSSQLS4	4	19.5	11.5	5.5	4	39.5	31.5	12.5	500	1.2
LGCQLS5	LGSSQLS5	5	23	13	6.5	5	48.5	35.5	16	650	2.1
LGCQLS6	LGSSQLS6	6	26.5	14.5	7.5	6	57	45	19	875	3.5
LGCQLS7	LGSSQLS7	7	30	16	8.5	7	66	52	21.5	1200	5.45
LGCQLS8	LGSSQLS8	8	33.5	17.5	10.5	8	74	58	24	1525	7.5
LGCQLS9	LGSSQLS9	9	37	19	11	9	80	62	26	1975	10.5
LGCQLS10	LGSSQLS10	10	40.5	20.5	12	10	89	69	29	2300	13.5
LGCQLS12	LGSSQLS12	12	47.5	23.5	15	12	104.5	80.5	33	2500	22.8
LGCQLS14	LGSSQLS14	14	54.5	26.5	17	14	121	93	38.5	2800	35
LGCQLS16	LGSSQLS16	16	61.5	29.5	19	16	140	108	45	3500	50

Do not exceed the working load limit.
Do not use it for overhead lifting or hoisting.
Do not use it to support human weight, for playground or athletic equipment, or as a safety device.

Quick links are used for general purposes connecting two chains or chains to components.
