Information of Ratchet Chain Load Binder G100 with Safety Hook

Technical Notes	European Type (EN12195-3)
Material	Superior Alloy Steel
Safety Factor	2: 1
Processing	Drop Forged / Machining
Finish	Powder Coated
Size	8mm, 10mm, 13mm
Tips	Color Code: Customized according to customers’ requirements
Note	NOT FOR LIFTING, ONLY FOR LASHING.

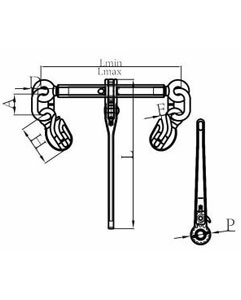

Specifications of Ratchet Chain Load Binder G100 with Safety Hook

Part No.	Weight (kg)	LC/KN	BF/KN	A±4	D±1.5	H±2	E±2	L±3	P±1	Lmin±4	Lmax±4
10-LG-RLB+SH-8	3.71	50	100	50	12	98	10.5	383	56	340	500
10-LG-RLB+SH-10	5.85	80	160	50	14	121.5	13	390	65	365	525
10-LG-RLB+SH-13	9.34	134	268	72	20	159.5	15.5	392.5	69	365	525
