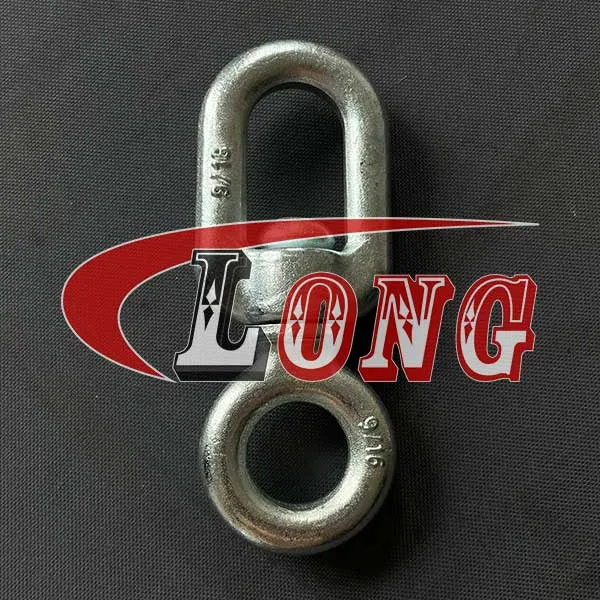

 Forged Swivel BRD Type Boat Fishing Trawling Gear of Lifting and Rigging Swivels

 Chain Swivel Drop Forged Mild Steel Fishing & Trawling of Lifting and Rigging Swivels

 Lifting and Rigging Chain Swivel Forged Stainless Steel Fishing & Trawling Gear-China

 Lifting and Rigging Chain Swivel WDD Type Welded Steel Fishing & Trawling Gear-China

 Lifting and Rigging Chain Swivel FOWD Type Alloy Steel Fishing & Trawling Gear-China

 Lifting and Rigging Chain Swivel WdD Type Fishing & Trawling Gear

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Regular Swivel G-402 Galvanized Eye & Eye

Material	Superior Carbon Steel (1045) regular swivel
Processing	Drop Forged + Welded +Heat Treated
Finish	Hot Dip Galvanized / Electric Galvanized
Safety Factor	5: 1
Size	1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/4”, 1-1/2” regular swivel

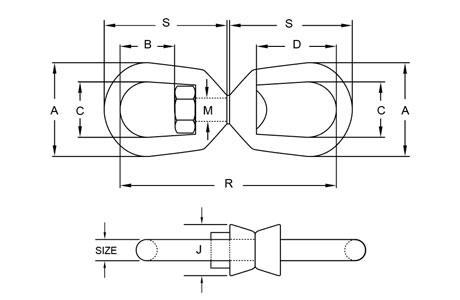

Specifications of Regular Swivel G-402 Galvanized Eye & Eye

Part No.	Size	W.L.L.	Weight each	Dimensions(in)
Part No.	(in.)	(lbs.)*	(lbs.)	A	B	C	D	J	M	R	S
LG-402-C45-1/4	1/4	850	0.21	1.25	0.69	0.75	1.06	0.69	0.31	2.94	1.69
LG-402-C45-5/16	5/16	1250	0.39	1.63	0.81	1	1.25	0.81	0.38	3.56	2.06
LG-402-C45-3/8	3/8	2250	0.71	2	0.94	1.25	1.5	1	0.5	4.31	2.5
LG-402-C45-1/2	1/2	3600	1.32	2.5	1.31	1.5	2	1.31	0.63	5.44	3.19
LG-402-C45-5/8	5/8	5200	2.49	3	1.56	1.75	2.38	1.5	0.75	6.56	3.88
LG-402-C45-3/4	3/4	7200	4.02	3.5	1.75	2	2.63	1.88	0.88	7.19	4.31
LG-402-C45-7/8	7/8	10000	6.25	4	2.06	2.25	3.06	2.13	1	8.38	5
LG-402-C45-1	1	12500	8.95	4.5	2.31	2.5	3.5	2.38	1.13	9.63	5.75
LG-402-C45-1-1/4	1-1/4	18000	16.37	5.63	2.69	3.13	3.69	3	1.5	11.44	6.75
LG-402-C45-1-1/2	1-1/2	45200	45.79	7.09	3.88	4.09	3.88	3.75	2.25	16.69	9.91
