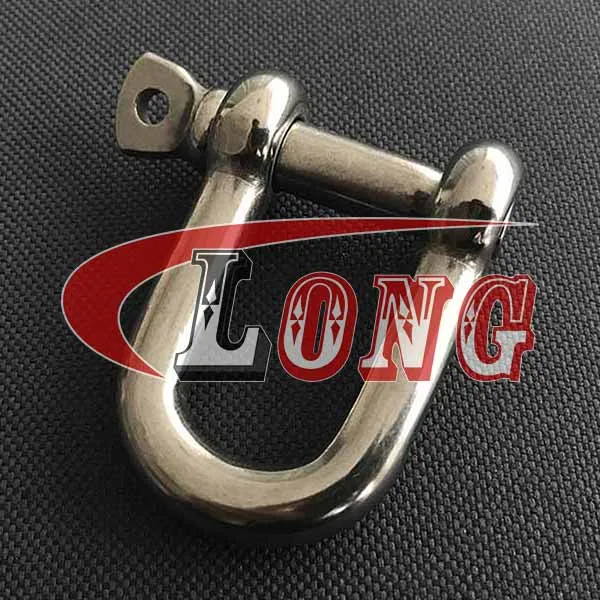

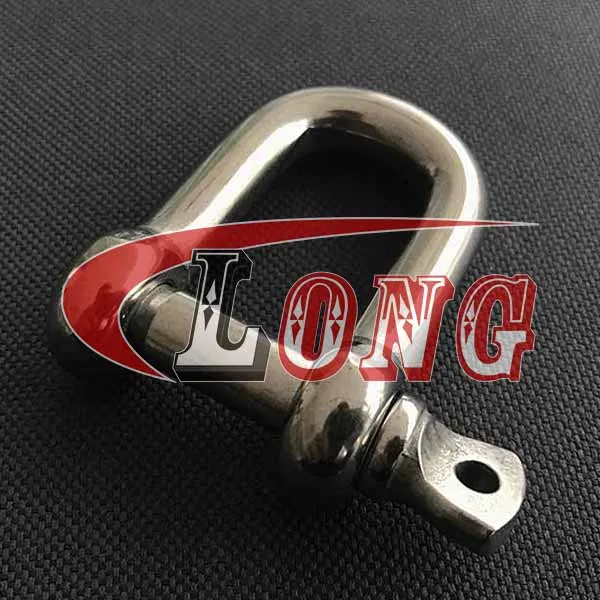

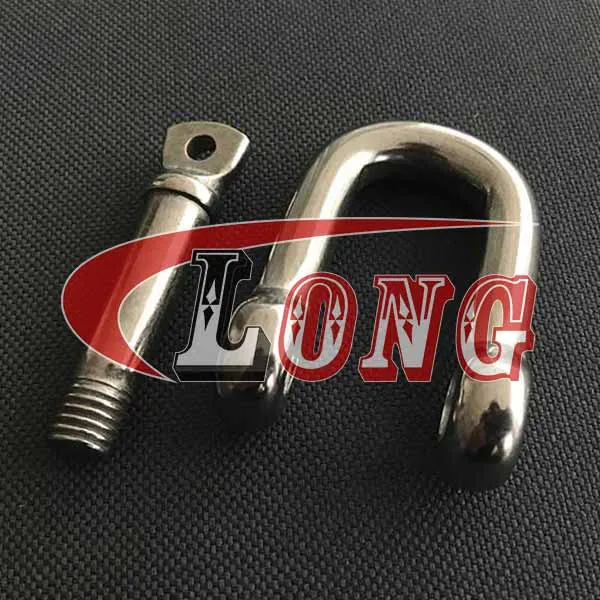

Name: Stainelss Steel D Shackle, JIS Type
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

 Bow Shackle Stainless Steel Screw Pin European Type for Stainless Shackles

 Stainless Steel D Shackle Screw Pin European Type

 Stainless Steel Anchor Shackle Oversized Screw Pin

 Stainless Steel Chain Shackle Oversized Screw Pin

 Stainless Steel Bow Shackle Oversized Bolt Type Pin

 D Shackle Oversized Bolt Type Pin Stainless Steel

 Bow Shackle Stainless Steel Square Head Pin for Stainless Shackles

 D Shackle Stainless Steel Square Head Pin

 Stainless Steel D Shackle Captive Pin

 Captive Pin Bow Shackle Stainless Steel

 Captive Pin Long D Shackle Stainless Steel

 Screw Pin Long D Shackle Stainless Steel

 Hexagon Socket Pin Bow Shackle Stainless Steel

 Twist Shackle Screw Pin Stainless Steel

 Wide D Shackle Captive Pin Stainless Steel

 Screw Pin Wide D Shackle Stainless Steel

 Stainelss Steel D Shackle, JIS Type

 Bow Shackle Screw Pin JIS Type Stainless Steel

 Stainless Steel Fixed Bail Snap Shackle

 Stainless Steel Eye Swivel Snap Shackle for Sailboat

 Stainless Steel Jaw Swivel Snap Shackle for Sailboat

 Key Pin Shackle Long D Shackle Stainless Steel

 Key Pin D Shackle with Bar Stainless Steel

 Oversized Bolt Type Pin Bow Shackle Precision Cast US Type Stainless Steel

 Oversized Screw Pin Anchor Shackle Precision Cast US Type Stainless Steel

 Strip D Shackle with Flat Pin Stainless Steel

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Information of Stainelss Steel D Shackle, JIS Type

Technical Notes	JIS Type
Material	AISI 304/316
Processing	Forged / Casting / Stamping
Finish	Highly Polishing / Electrophoretic coating
Size	4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 38mm

Specifications of Stainelss Steel D Shackle, JIS Type

Specifications of Stainelss Steel D Shackle,JIS Type

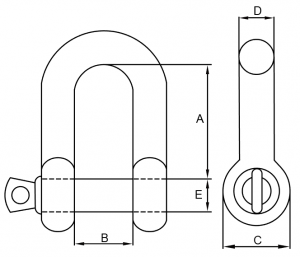

Part No.	Size	A	B	C	D4	E	WLL (KGS)
Part No.	mm	mm	mm	mm	mm	mm	WLL (KGS)
LG-SS-DS-JIS-04	4	14	8	8	4	4	50
LG-SS-DS-JIS-05	5	16	10	10	5	5	80
LG-SS-DS-JIS-06	6	22	12	12	6	6	100
LG-SS-DS-JIS-08	8	27	16	16	8	8	200
LG-SS-DS-JIS-10	10	31	20	20	10	10	320
LG-SS-DS-JIS-12	12	40	24	24	12	12	520
LG-SS-DS-JIS-14	14	46	28	28	14	14	700
LG-SS-DS-JIS-16	16	52	32	32	16	16	800
LG-SS-DS-JIS-18	18	58	36	36	18	18	990
LG-SS-DS-JIS-20	20	64	40	40	20	20	1100
LG-SS-DS-JIS-22	22	75	44	44	22	22	1500
LG-SS-DS-JIS-25	25	83	50	50	25	25	2100
LG-SS-DS-JIS-28	28	96	56	56	28	28	3000
LG-SS-DS-JIS-32	32	114	64	64	32	32	3500
LG-SS-DS-JIS-36	36	116	72	72	36	36	4600
LG-SS-DS-JIS-38	38	152	76	76	38	38	5000
