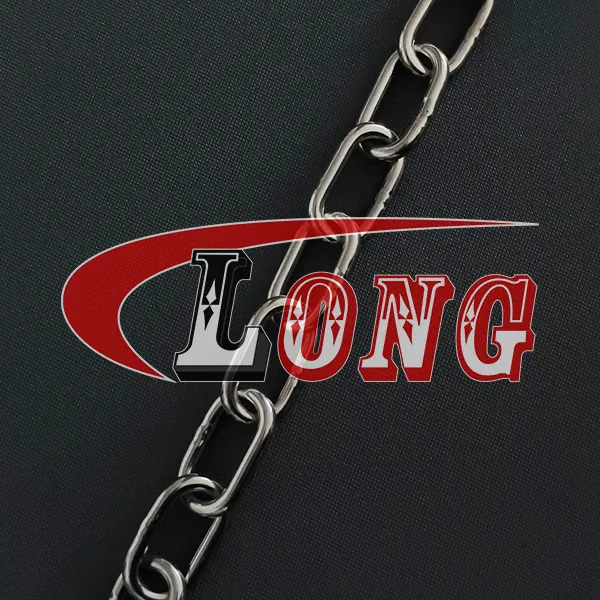

LGRIG® Stainless Steel Long Link Chain AS/NZ Standard

LGRIG® Stainless Steel Long Link Chain AS/NZ Standard.

Stainless Steel Chain Long Link, manufactured from marine-grade AISI 316 stainless steel (A4 grade) or AISI 304 Stainless Steel (A2 grade), it has great corrosion-resistant. Available in 4mm–10mm diameters.

Engineered for harsh environments—including fishing/trawling, static lashing, shade sails, and industrial dragging—it delivers reliable performance in agricultural, construction, and coastal applications.

Critical Limitations:

Not rated for overhead lifting or permanent submersion

Exclusively for non-lifting applications (use certified lifting chains for load-bearing)

Certification & Compliance:

Material: AISI 316 or AISI 304 Grade Stainless Steel

Traceability: Batch-number stamped with available test certificates

Environmental Resistance: Withstands saltwater, chemicals, and UV exposure

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
DIN763 Stainless Steel Chain Long Link LG RIGGING®
DIN764 Lifting Chain Stainless Steel Medium Link
DIN764 Stainless Steel Chain Medium Link LG RIGGING®
Stainless Steel Chain Short Link DIN766 LG RIGGING®
LGRIG® Stainless Steel Short Link Chain AS/NZ Standard
LGRIG® Stainless Steel Medium Link Chain AS/NZ Standard
LGRIG® Stainless Steel Long Link Chain AS/NZ Standard
DIN5685 C Long Link Chain Stainless Steel
DIN5685 A Short Link Chain Stainless Steel
Calibrated Anchor Chain DIN 766 Stainless Steel
Stainless Steel Lifting Chain
Stainless Steel Twisted Link Chain
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Informations of LGRIG® Stainless Steel Medium Link Chain AS/NZ Standard

Brand

LGRIG®

Standard

AS/NZ Standard (Australian Standard)

Chain Link Type

Long Link Chain

Material

316 Grade or 304 Grade Stainless Steel

Processing

Welded

Finish

Highly Polished

Size

3mm,4mm,5mm,6mm,8mm,10mm,12mm,13mm,16mm,20mm,24mm

Tips

Proof tested to at least twice the maximum static load indicated.

Country of Origin

China


Specifications of LGRIG® Stainless Steel Medium Link Chain AS/NZ Standard


Part No.

CHAIN SIZE

WORKING LOAD

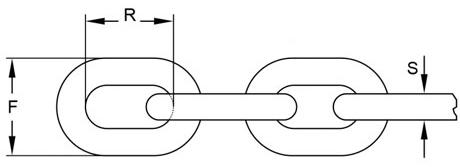

LINK DIMENSION

S

R

F

MM

MT

MM

MM

MM

LGSSCLLAS03

4

0.05

3.15

22.1

15.7

LGSSCLLAS04

4

0.09

4

25.4

18.6

LGSSCLLAS05

5

0.19

5

29.3

21.8

LGSSCLLAS06

6

0.32

6.3

34.5

26.1

LGSSCLLAS08

8

0.53

8

41.2

31.9

LGSSCLLAS10

10

0.83

10

49

38.7


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Chains

DIN5685 C Long Link Chain Stainless Steel
DIN5685 C Long Link Chain Stainless Steel
LGRIG® Stainless Steel Medium Link Chain AS/NZ Standard
LGRIG® Stainless Steel Medium Link Chain AS/NZ Standard

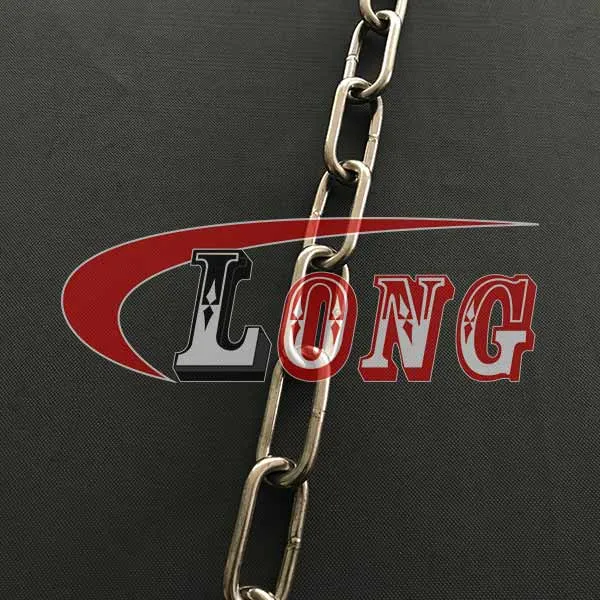

DIN763 Stainless Steel Chain Long Link LG RIGGING®
DIN763 Stainless Steel Chain Long Link LG RIGGING®
DIN764 Lifting Chain Stainless Steel Medium Link
DIN764 Lifting Chain Stainless Steel Medium Link
DIN5685 A Short Link Chain Stainless Steel
DIN5685 A Short Link Chain Stainless Steel
Stainless Steel Lifting Chain
Stainless Steel Lifting Chain
Calibrated Anchor Chain DIN 766 Stainless Steel
Calibrated Anchor Chain DIN 766 Stainless Steel
Stainless Steel Twisted Link Chain
Stainless Steel Twisted Link Chain
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
