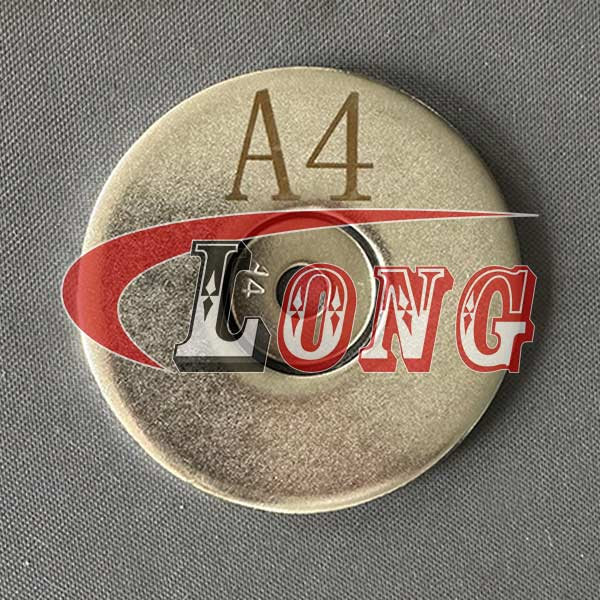

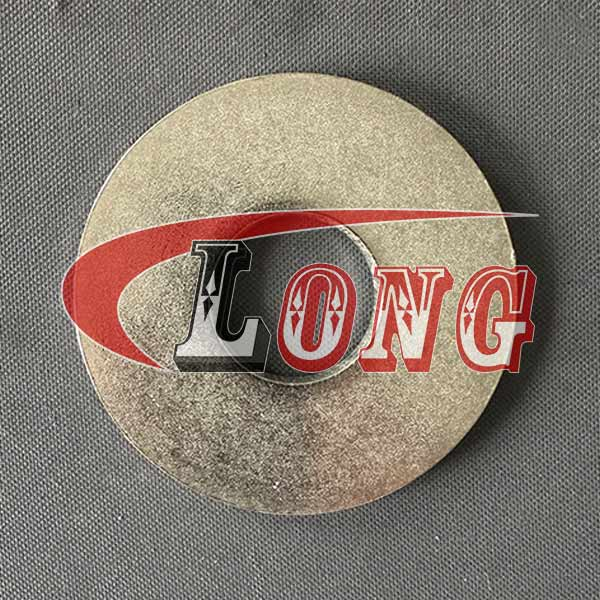

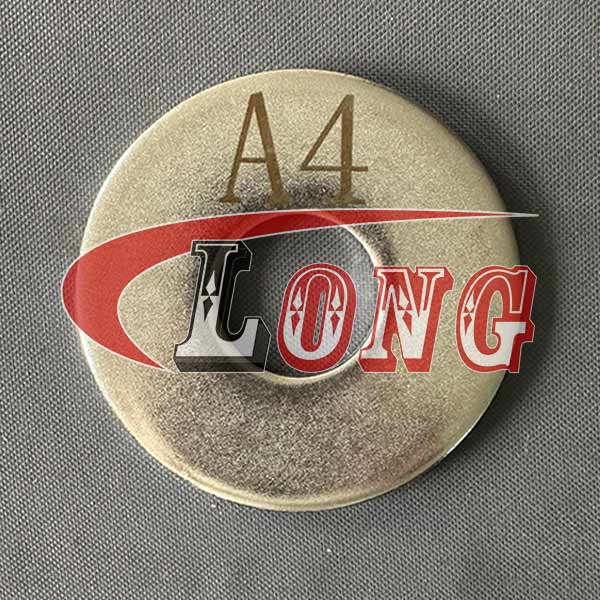

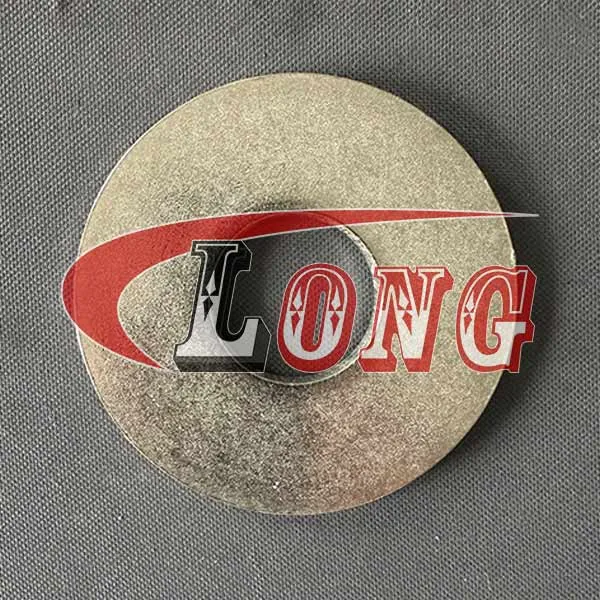

Name: Stainless Steel Plain Washer DIN9021 LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

 Stainless Steel Plain Washer DIN9021 LG RIGGING®

 Stainless Steel Wire Eye Straps

 Stainless Steel Round Pad Eyes

 Stainless Steel Square Ring Plate

 Stainless Steel Diamond Pad Eye with Ring

 Stainless steel Square Swivel Pad Eye

 Stainless Steel Corner Angle Bracket 6 Holes for Eye Plate, Eye Straps, Angles

 Stainless Steel Corner Angle Bracket for Eye Plate, Eye Straps, Angles

 Stainless Steel Round Pad Eye Plate with Ring for Eye Plate, Eye Straps, Angles

 Stainless Steel Round Eye Plate with Threaded Stud for Eye Plate, Eye Straps, Angles

 Stainless Steel Square Eye Plate for Eye Plate, Eye Straps, Angles

 Stainless Steel Diamond Pad Eye Diamond Eye Plate for Eye Plate, Eye Straps, Angles

 Stainless Steel Oblong Pad Eye, Oblong Eye Plate for Eye Plate, Eye Straps, Angles

 Stainless Steel Oblong Pad Eye Plate with Ring

Boat Fittings

 

Pole Line Hardware

 

Informations of Stainless Steel Plain Washer DIN9021 LG RIGGING®

Brand	LG RIGGING®
Standards	DIN 9021
Material	Stainless steel A4 / A2
Surface	Plain

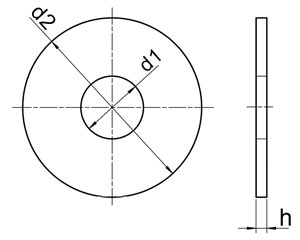

Specifications of Stainless Steel Plain Washer DIN9021 LG RIGGING®


Part No.	Nominal size	For thread	d1		d2		h			Weight kg/1000pcs
Part No.	Nominal size	For thread	min. Nominal size	max.	max. Nominal size	min.	Nominal size	max.	min.	Weight kg/1000pcs
LG9201W2.5	2,7	M2,5	2,7	2,84	8	7,64	0,8	0,9	0,7	0,28
LG9201W3	3,2	M3	3,2	3,38	9	8,64	0,8	0,9	0,7	0,349
LG9201W3.5	3,7	M3,5	3,7	3,88	11	10,57	0,8	0,9	0,7	0,529
LG9201W4	4,3	M4	4,3	4,48	12	11,57	1	1,1	0,9	0,774
LG9201W5	5,3	M5	5,3	5,48	15	14,57	1,2	1,4	1	1,46
LG9201W6	6,4	M6	6,4	6,62	18	17,57	1,6	1,8	1,4	2,79
LG9201W7	7,4	M7	7,4	7,62	22	21,48	2	2,2	1,8	5,29
LG9201W8	8,4	M8	8,4	8,62	24	23,48	2	2,2	1,8	6,23
LG9201W10	10,5	M10	10,5	10,77	30	29,48	2,5	2,7	2,3	12,2
LG9201W12	13	M12	13	13,27	37	36,38	3	3,3	2,7	22,2
LG9201W14	15	M14	15	15,27	44	43,38	3	3,3	2,7	31,6
LG9201W16	17	M16	17	17,27	50	49,38	3	3,3	2,7	40,9
LG9201W18	20	M18	20	20,52	56	54,1	4	4,6	3,4	67,4
LG9201W20	22	M20	22	22,52	60	58,1	4	4,6	3,4	76,8
LG9201W24	26	M24	26	26,84	72	70,1	5	6	4	139
LG9201W30	33	M30	33	34	92	89,8	6	7	5	273
LG9201W36	39	M36	39	40	110	107,8	8	9,2	6,8	522
