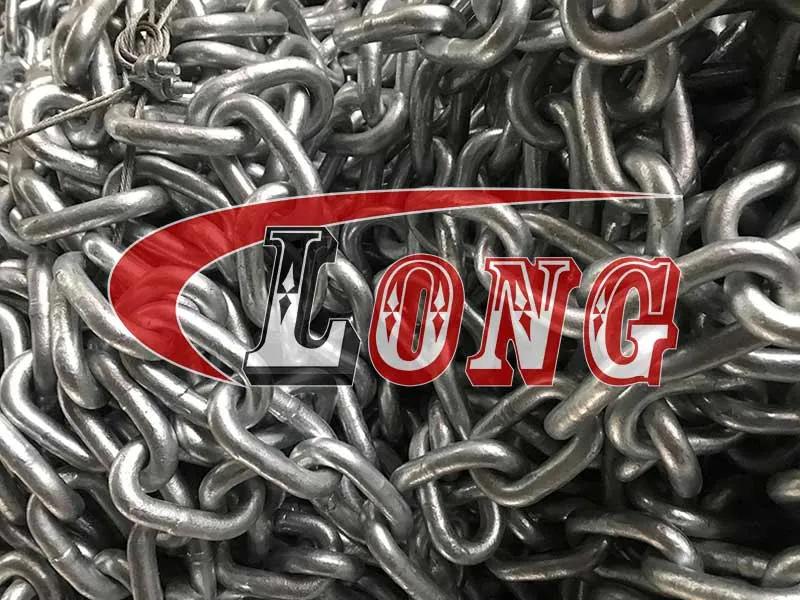

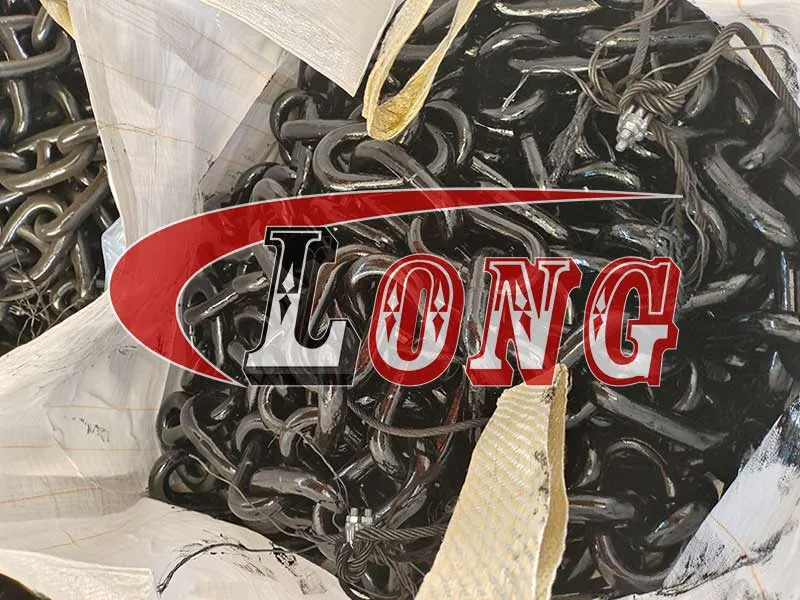

Information of Studless Link Anchor Chain Common Link

Material	Superior low Carbon Alloy Steel
Safety Factor	4: 1
Processing	Welded， Heat Treated
Finish	Hot Dip Galvanized, Black Bitumen Coating
Size	12.5mm, 14mm, 16mm, 17.5mm,19mm, 20.5mm, 22mm, 24mm, 26mm,28mm, 30mm,32mm, 34mm, 36mm,3 8mm 40mm, 42mm, 44mm, 46mm, 48mm, 50mm, 52mm, 54mm, 56mm, 58mm, 60mm, 62mm, 64mm, 66mm, 68mm, 70mm
Tips	Color Code: Customized according to customers’ requirements

Specifications of Studless Link Anchor Chain Common Link

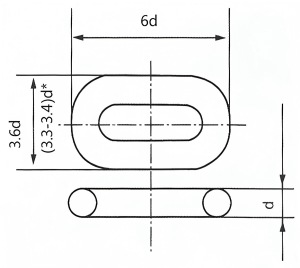

Part No.	d(φ)		CHAIN LINK SIZE		BM1		BM2		BM3		APPROX.
			CHAIN LINK SIZE		U1 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN		WEIGHT
			6d	3.6d	U1 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN		PER
	DIAMETER		OUTSIDE LENGTH (mm.)	OUTSIDE WIDTH (mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	27.5M
	(in.)	(mm.)	OUTSIDE LENGTH (mm.)	OUTSIDE WIDTH (mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	(kg.)
LG-SL-C-12.5	1/2	12.5	75	45	28.75	57.81	41.2	82.6	56.4	112.8	85.41
LG-SL-C-14	9/16	14	84	50.4	34.78	69.93	51	101.9	70.76	141.51	106.55
LG-SL-C-16	5/8	16	96	57.6	47.1	94.72	66.2	132.3	92.42	184.83	139.43
LG-SL-C-17.5	11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.1	178.35
LG-SL-C-19	3/4	19	114	68.4	66.42	133.57	93.6	187.2	130.32	260.64	217.68
LG-SL-C-20.5	13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.7	303.42	229.14
LG-SL-C-22	7/8	22	132	79.2	89.06	179.08	125.4	250.9	174.4	349.4	264.49
LG-SL-C-24	15/16	24	144	86.4	105.98	213.25	149.9	298.9	207.9	415.8	341.82
LG-SL-C-26	1-1/16	26	156	93.6	124.38	250.12	175.4	350.8	244	488	369.94
LG-SL-C-28	1-1/8	28	168	100.8	144.26	290.08	203.8	406.7	283	566	427.04
LG-SL-C-30	1-3/16	30	180	108	165.6	333	234.2	467.5	324.9	649.8	490.98
LG-SL-C-32	1-1/4	32	192	115.2	188.42	378.88	265.6	531.2	369.6	739.3	559.65
LG-SL-C-34	1-5/16	34	204	122.4	212.7	427.72	299.9	599.8	417.3	834.6	671.52
LG-SL-C-36	1-7/16	36	216	129.6	238.46	479.52	336.1	672.3	467.8	935.7	707.85
LG-SL-C-38	1-1/2	38	228	136.8	265.7	534.28	374.4	748.7	521.3	1042.5	788.98
LG-SL-C-40	1-9/16	40	240	144	294.4	592	414.5	829.1	577.6	1155.2	869.36

Specification-2 – Studless Link Anchor Chain Common Link

Part No.	d(φ)		CHAIN LINK SIZE		BM1		BM2		BM3		APPROX. WEIGHT PER 27.5M (kg.)
			CHAIN LINK SIZE		U1 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN
			6d	3.6d	U1 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN
	DIAMETER		OUTSIDE LENGTH (mm.)	OUTSIDE WIDTH (mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)
	(in.)	(mm.)	OUTSIDE LENGTH (mm.)	OUTSIDE WIDTH (mm.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)	PROOF LOAD (kn.)	BREAKING LOAD (kn.)
LG-SL-C-42	1-5/8	42	252	151.2	324.58	652.68	457.7	915.3	636.8	1273.6	959.3
LG-SL-C-44	1-3/4	44	264	158.4	356.22	716.32	502.7	999.6	698.9	1398	1111.25
LG-SL-C-46	1-13/16	46	276	165.6	389.34	782.92	548.8	1097.6	763.9	1527.8	1152.07
LG-SL-C-48	1-7/8	48	288	172.8	423.94	852.48	597.8	1195.6	831.7	1663.5	1256.26
LG-SL-C-50	2	50	300	180	460	926.09	648.8	1293.6	902.5	1805	1360.41
LG-SL-C-52	2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28	1485.61
LG-SL-C-54	2-1/8	54	324	194.4	536.54	1078.92	752.33	1504.66	1052.68	2105.36	1648.08
LG-SL-C-56	2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.1	2264.2	1715.97
LG-SL-C-58	2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.4	2428.8	1844.5
LG-SL-C-60	2-3/8	60	360	216	662.4	1332	928.8	1857.6	1299.6	2599.2	1973.29
LG-SL-C-62	2-7/16	62	372	223.2	707.3	1422.28	991.75	1983.5	1387.68	2775.36	2101.56
LG-SL-C-64	2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32	2298.47
LG-SL-C-66	2-9/16	66	396	237.6	801.5	1611.72	1123.85	2247.7	1572.52	3145.04	2398.1
LG-SL-C-68	2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52	2522.88
LG-SL-C-70	2-3/4	70	420	252	901.6	1813	1264.2	2528.4	1768.9	3537.8	2697.65
