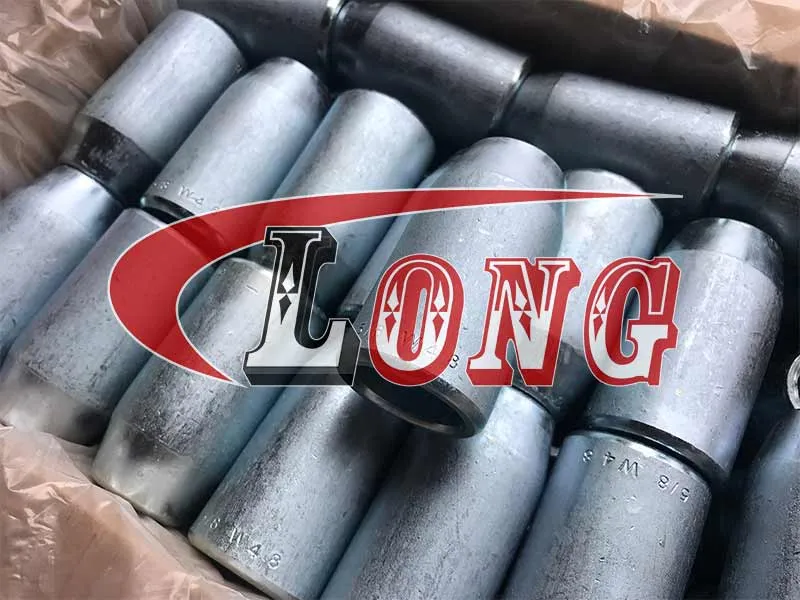

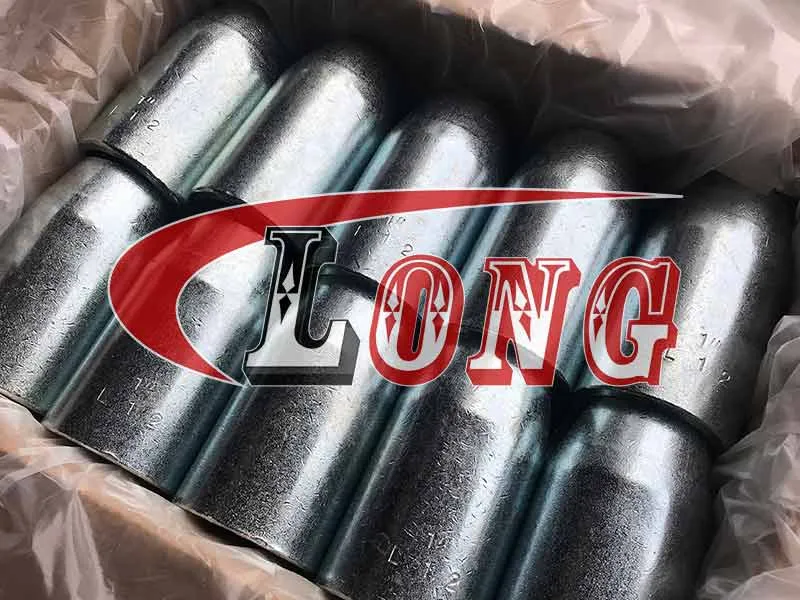

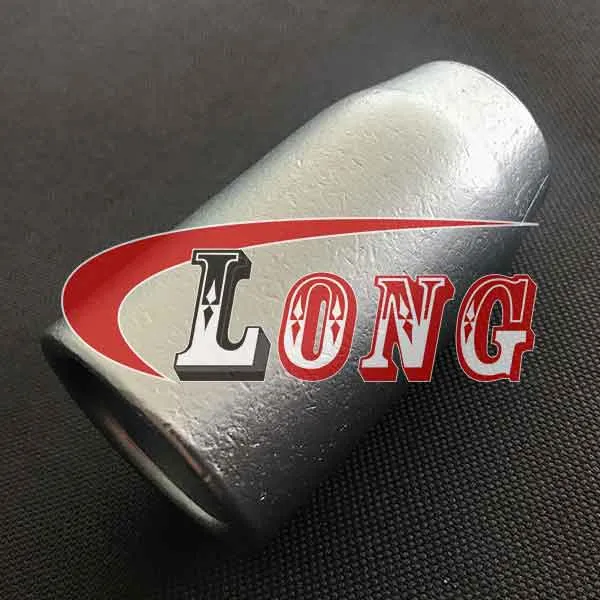

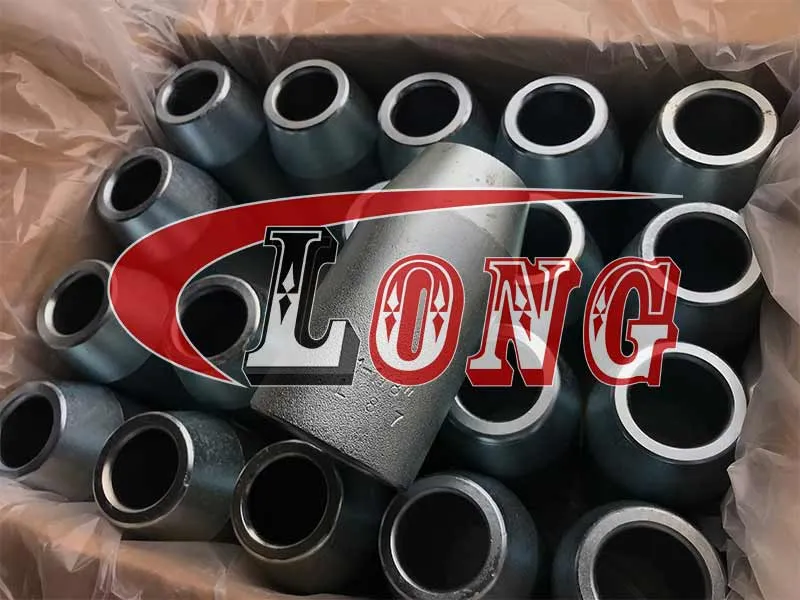

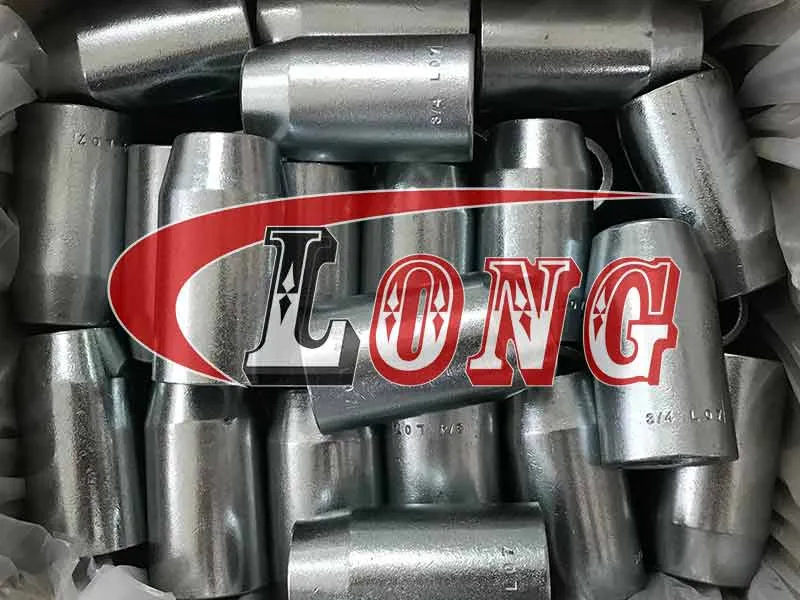

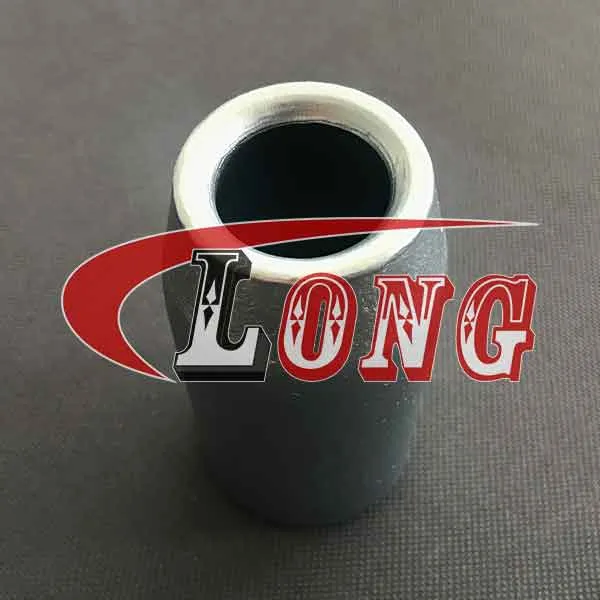

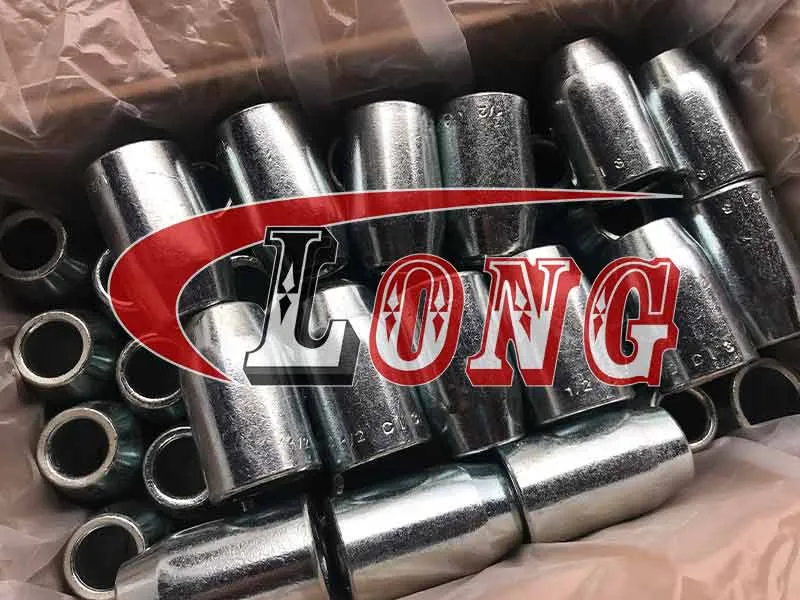

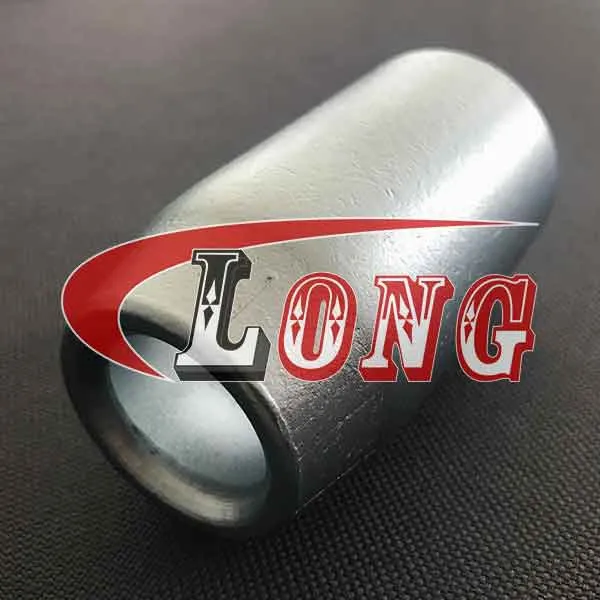

Information of LGRIG® Swage Sleeve Flemish Eye Steel S505

Brand	LGRIG®
Material	Superior Mild Steel
Processing	Machining + Extruded
Finish	Electric Galvanized / Self-color
Size(inch)	1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 9/16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 3/8″ , 1 1/2″, 1 3/4″ , 2″ , 2 1/4″ , 2 1/2″ , 2 3/4″ , 3″ , 3 1/4″ , 3 1/2″ , 3 3/4″ , 4″ , 4 1/2″ , 5″ , 6″
Size(mm)	8mm, 9-10mm, 11mm, 13mm, 14mm, 16mm, 18-19mm, 22mm, 25-26mm, 28-29mm, 31-32mm, 34-35mm, 37-38mm, 44-45mm, 50-52mm, 56-57mm, 62-64mm, 68-70mm,75-76mm, 85-87mm, 87-89mm, 93-95mm, 100-105mm, 112-114mm, 128-130mm, 150-155mm
Country of Origin	China

Specifications of LGRIG® Swage Sleeve Flemish Eye Steel S505

Part No.	For Wire Rope		Dimension(inch)					Max. After Swage Dimensions (inch)	Weight

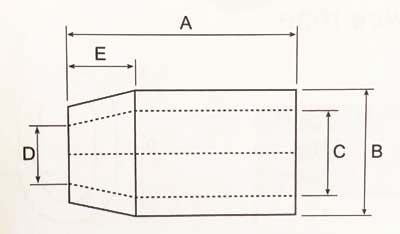

Part No.	Size(mm)	Size(inch)	A	B	D	E	C	Max. After Swage Dimensions (inch)	kgs/100pcs
LGS505F1/4	6-7mm	1/4″	1	0.66	0.31	0.28	0.47	0.57	2.27
LGS505F5/16	8mm	5/16″	1.5	0.91	0.38	0.44	0.62	0.75	6.36
LGS505F3/8	9-10mm	3/8″	1.5	0.91	0.47	0.39	0.66	0.75	6.36
LGS505F7/16	11mm	7/16″	2	1.22	0.53	0.65	0.85	1.01	15
LGS505F1/2	13mm	1/2″	2	1.22	0.63	0.56	0.91	1.01	13
LGS505F9/16	14mm	9/16″	2.75	1.47	0.7	0.63	1.03	1.24	29
LGS505F5/8	16mm	5/8″	2.75	1.47	0.75	0.63	1.09	1.24	26
LGS505F3/4	18-19mm	3/4″	3.19	1.72	0.91	0.84	1.28	1.46	40
LGS505F7/8	22mm	7/8″	3.56	2.03	1.03	1	1.53	1.68	60
LGS505F1	25-26mm	1″	4	2.28	1.16	1.13	1.72	1.93	89
LGS505F1-1/8	28-29mm	1 1/8″	4.8	2.5	1.28	1.25	1.94	2.13	118
LGS505F1-1/4	31-32mm	1 1/4″	5.19	2.78	1.44	1.41	2.16	2.32	161
LGS505F1-3/8	34-35mm	1 3/8″	5.81	3	1.56	1.56	2.38	2.52	192
LGS505F1-1/2	37-38mm	1 1/2″	6.25	3.25	1.69	1.69	2.63	2.71	227
LGS505F1-3/4	44-45mm	1 3/4″	7.25	3.84	1.94	1.97	3.13	3.1	366
LGS505F2	50-52mm	2″	8.5	4.38	2.25	2.25	3.63	3.56	514
LGS505F2-1/4	56-57mm	2 1/4″	9.56	5.03	2.5	2.53	4.03	4.12	879
LGS505F2-1/2	62-64mm	2 1/2″	10.5	5.5	2.75	2.81	4.5	4.5	1068
LGS505F2-3/4	68-70mm	2 3/4″	11.5	5.75	3	3.09	4.75	4.7	1271
LGS505F3	75-76mm	3″	12	6	3.25	3.38	5	4.96	1335
LGS505F3-1/4	85-87mm	3 1/4″	13	6.5	3.86	3.54	5.43	5.37	1650
LGS505F3-1/2	87-89mm	3 1/2″	14	7	3.88	3.94	5.84	5.77	2106
LGS505F2-3/4	93-95mm	3 3/4″	15	7.5	4.06	4.25	6.31	6.23	2497
LGS505F4	100-105mm	4″	16	8.13	4.38	4.5	6.81	6.69	3087
LGS505F4-1/2	112-114mm	4 1/2″	18	9.13	4.88	5.06	7.66	7.45	4540
LGS505F5	128-130mm	5″	20	10.52	5.5	5.63	8.73	8.28	6600
LGS505F6	150-155mm	6″	24	12.54	6.5	6.75	10.2	9.93	12300
