Name: LGRIG® Swivel Eye Hoist Hook with Latch Grade 70
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

 LGRIG® Grade 70 Weld-on Grab Hooks

 LGRIG® Bolt on Clevis Mounts with Hardware

 LGRIG® Bolt-on Grab Hooks with Hardware

 LGRIG® Clevis Grab Hook Grade 43 High Test

 LGRIG® Grade 70 Clevis Grab Hook Alloy Steel

 LGRIG® Clevis Slip Hook Grade 43 High Test

 LGRIG® Clevis Slip Hook Grade 70 Alloy Steel

 LGRIG® Clevis Slip Hook with Latch Grade 43 High Test

 LGRIG® Clevis Slip Hook with Latch Grade 70 Alloy Steel

 LGRIG® Eye Grab Hook Grade 43 High Test

 LGRIG® Eye Grab Hook Grade 70 Alloy Steel

 LGRIG® Eye Slip Hook Grade 43 High Test

 LGRIG® Eye Slip Hook Grade 70 Alloy Steel

 LGRIG® Eye Slip Hook with Latch Grade 43 High Test

 LGRIG® Grade 70 Eye Slip Hook with Latch

 LGRIG® Eye Hoist Hook with Latch LG320C Grade 43 High Test

 LGRIG® Eye Hoist Hook with Latch LG320A Grade 70

 LGRIG® Swivel Eye Hoist Hook with Latch Grade 43 High Test

 LGRIG® Swivel Eye Hoist Hook with Latch Grade 70

 LGRIG® Shank Hooks with Latch Carbon Steel

 LGRIG® Shank Hooks with Latch Alloy Steel Grade 70

 LGRIG® Clevis Grab Hook with Wing Grade 70 Australia Standard

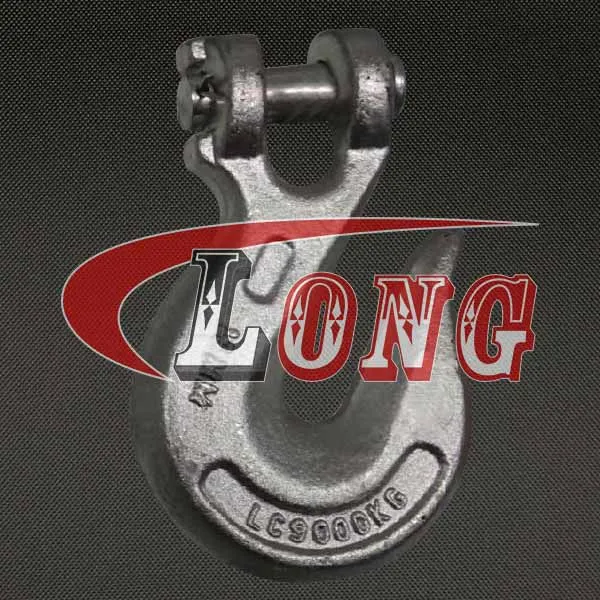

 LGRIG® Clevis Grab Hook No Wing Grade 70 Australia Standard

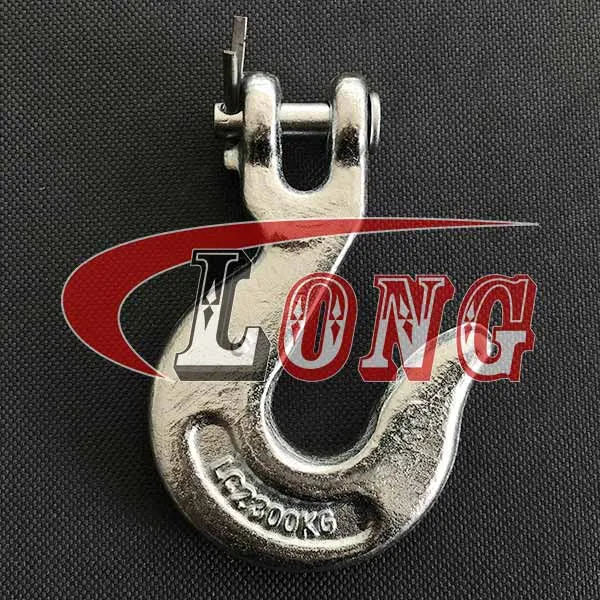

 LGRIG® Clevis Slip Hook Grade 70 Australia Standard

 LGRIG® Clevis Claw Hook Grade 70 Australia Standard

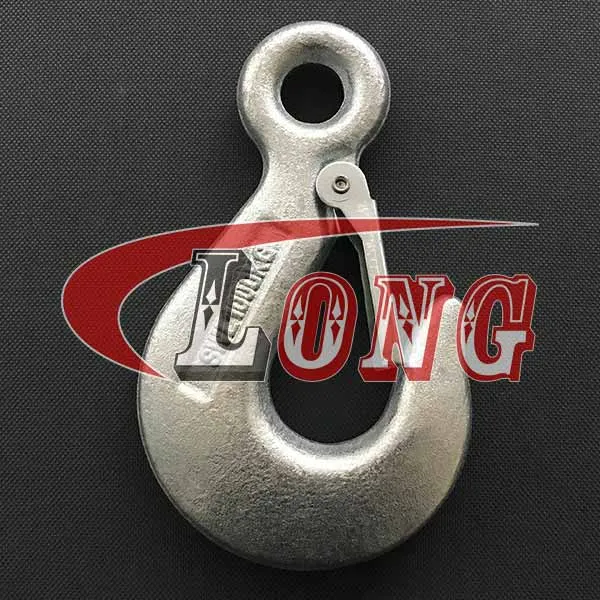

 LGRIG® Lifting Eye Hook with Latch DIN689

 LGRIG® Winch Hook w/ Latch Carbon Steel 3.5T

 LGRIG® Forged Eye Snap Hook with Safety Latch

 LGRIG® Grade 43 Clevis Grab Hook With Latch

 LGRIG® Grade 70 Clevis Grab Hook With Latch

 LGRIG® Grade 70 Clevis Bend Hooks Forged Alloy Steel

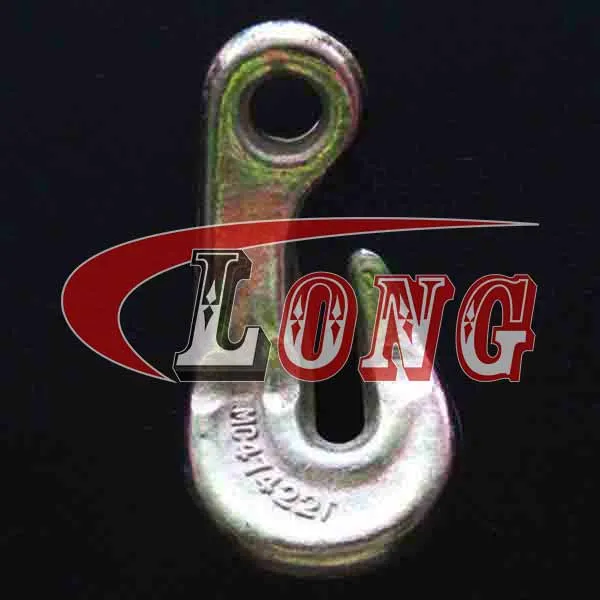

 LGRIG® Eye Bend Hook Type A Forged Alloy

 LGRIG® Round Reverse Eye Hooks LG1210

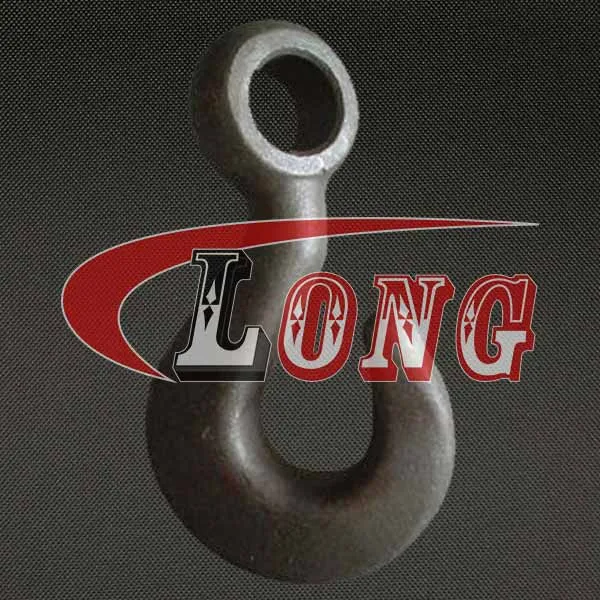

 LGRIG® Eye Twist Hook/Reverse Eye Hooks

 LGRIG® Eye Sling Hook with Triangle ring

 LGRIG® RTJ Cluster Hook Assembly with 3 Hook Cluster

 LGRIG® TMS Horizontal Clamp with Locking Device

 LGRIG® PDQ Single Steel Plate Clamp

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Swivel Eye Hoist Hook with Latch Grade 70

Brand	LGRIG®
Grade	Grade 70
Standard	Swivel Eye Hoist Hook with Latch Conform to U.S. Federal Specification
Material	Superior Alloy Steel
Safety Factor	5: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body : Powder Coated / Hot Dipped Galvanized / Zinc Plated / Self-Colored Latch: Dacromet / Stainless steel
Size (WLL)	0.75Ton, 1Ton, 1.5Ton, 2Ton, 3Ton, 5Ton, 7.5Ton, 11Ton, 15Ton, 22Ton, 30Ton
Tips	Finish: Customized according to customers’ requirements
Country of Origin	China

Specifications of LGRIG® Swivel Eye Hoist Hook with Latch Grade 70


Part No.	Weight (KG)	Alloy Steel		A±1 (mm)	E±2 (mm)	B±2 (mm)	H±0.6 (mm)	K±3 (mm)	L±3 (mm)	M±1 (mm)
Part No.	Weight (KG)	WLL(t)	B.L.(t)	A±1 (mm)	E±2 (mm)	B±2 (mm)	H±0.6 (mm)	K±3 (mm)	L±3 (mm)	M±1 (mm)
LG70SEHH01	0.3	0.75	3.375	31.5	17	22.5	9	110	137	15
LG70SEHH02	0.34	1	4.5	32	17	22.5	9	108.3	137	16
LG70SEHH03	0.57	1.5	6.75	37.5	22.5	29.5	12	133.5	163.5	16
LG70SEHH04	1.02	2	9	42.5	26	33	15.8	150.5	192	17.5
LG70SEHH05	1.24	3	13.5	42.5	26	33	15.8	163	209	23
LG70SEHH06	2.25	5	22.5	48	32.5	39	18	191	246	31
LG70SEHH07	4.66	7	31.5	64	43	53	25	243.5	313	34
LG70SEHH08	7.4	11	49.5	70	49.5	53	28.5	277	364	41.5
LG70SEHH09	10.6	15	67.5	79	54.5	62	32	332	431	55.7
LG70SEHH10	21.4	22	99	105	81	108	40	427	543	70
LG70SEHH11	32	30	135	105	100	96	40	465.3	596	76.2
