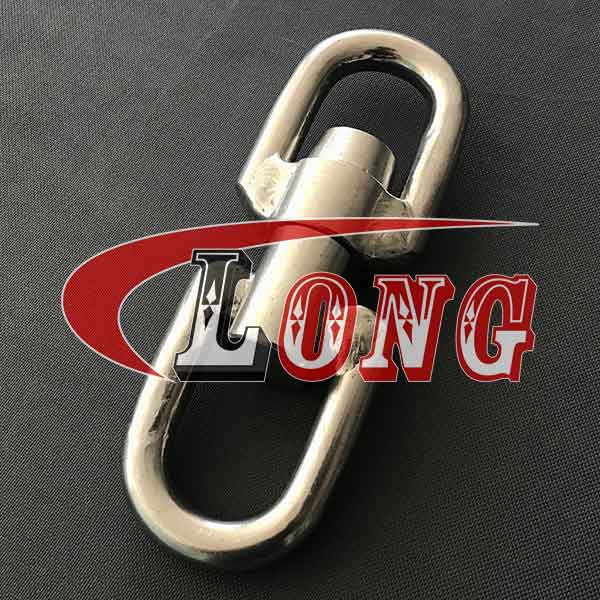

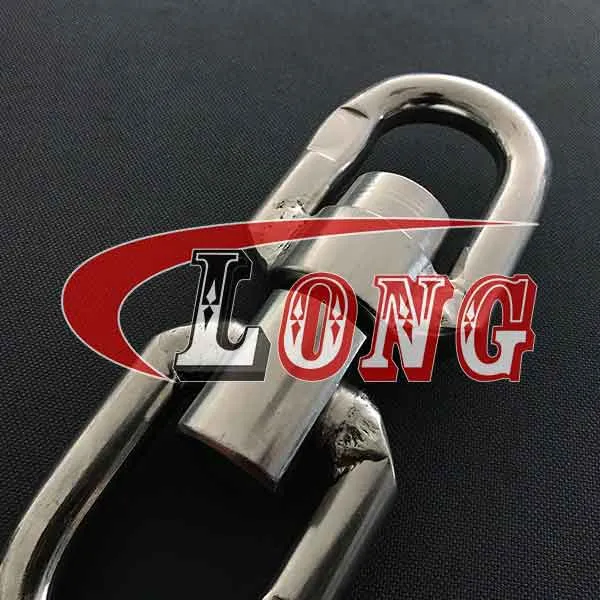

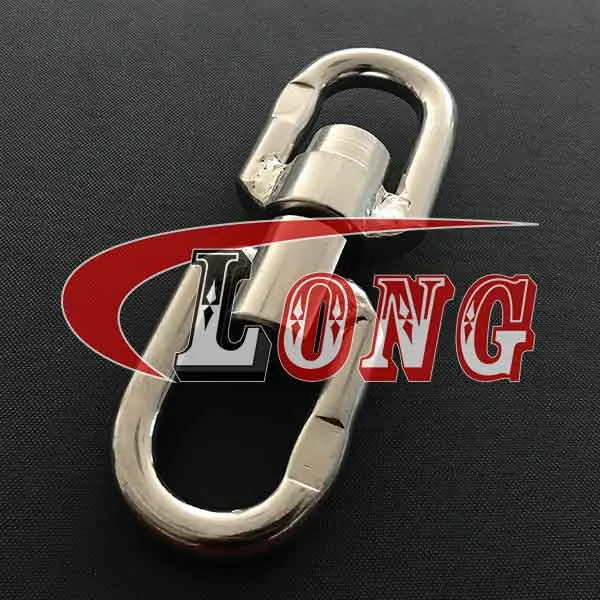

Swivel Stainless Steel Flexible WF Type Fishing & Trawling Gear-China

Swivel Stainless Steel Flexible WF Type-China LG™ is more flexible than the standard swivels, also known as articulated swivel.

Stainless steel swivel FLEX, is hugely Popular Within the Boat, offshore, maritime, and commercial fishing.

As stainless steel articulated swivel is Grade 304 or 316 Stainless Steel Giving Them The Best Rust Protection.

This stainless flexible swivel has a safety factor ratio of 5:1, which means that it have the ability to hold five times the amount of their safe work load (SWL).

Remember, although the flexible Swivel is rated to hold five times the rated safe working load, doing so is unsafe and is not recommended.

All the swivels passed the test and come with test certificates.

Trawling Gear
Shackles
Boat Fittings

Information of Swivel Stainless Steel Flexible WF Type Fishing & Trawling Gear-China

Material

Stainless Steel AISI 304 or AISI 316 flexible swivel

Size

13mm 16mm 19mm 22mm 25mm 28mm 32mm 38mm 45mm swivel FLEX

Safe Factor

5:1

Processing

Welding / Machining / Highly Polishing

Tips

For various marine, Fishing, Trawling and industrial rigging applications

Important Notes

*NOT FOR LIFTING*

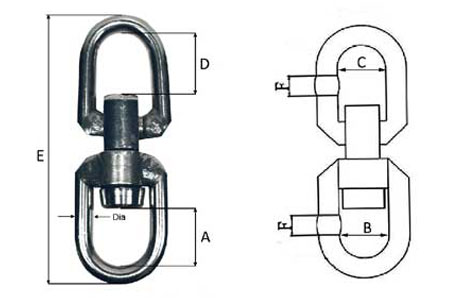

Specifications of Swivel Stainless Steel Flexible WF Type Fishing & Trawling Gear-China

specifications-of-swivel-stainless-steel-flexible-wf-type-fishing-for-fishing-&-trawlingtrawling-gear-china.jpg

Part No.

Size

WLL 5:1

A

B

C

D

E

F

Weight

Flat Thickness


(mm)

mm

ton

mm

kg

LG-SS-TS-WDF+F-13

13mm

1.6

30

28

28

34

160

11

0.71

9

LG-SS-TS-WDF+F-16

16mm

3.2

41

38

37

48

200

20

1.3

12

LG-SS-TS-WDF+F-19

19mm

4.7

44

40

40

54

235

20

2

15

LG-SS-TS-WDF+F-22

22mm

6.3

44

40

40

55

255

22

2.7

17

LG-SS-TS-WDF+F-25

25mm

8.3

55

50

45

70

320

25

4.4

18

LG-SS-TS-WDF+F-28

28mm

10.4

55

50

50

80

330

32

5.6

20

LG-SS-TS-WDF+F-32

32mm

12

55

55

54

93

360

40

8.6

24

LG-SS-TS-WDF+F-38

38mm

18

62

58

60

110

410

40

13.5

29

LG-SS-TS-WDF+F-45

45mm

28

75

70

70

115

515

53

22.5

35

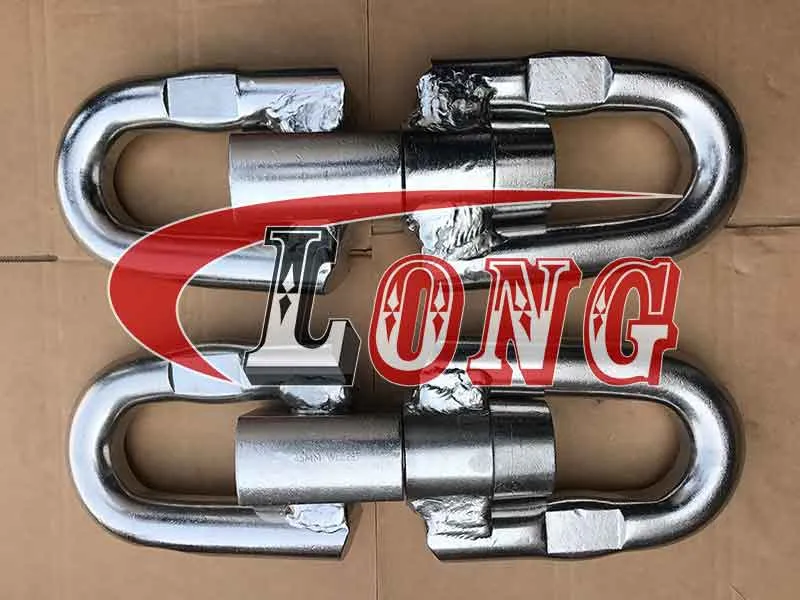

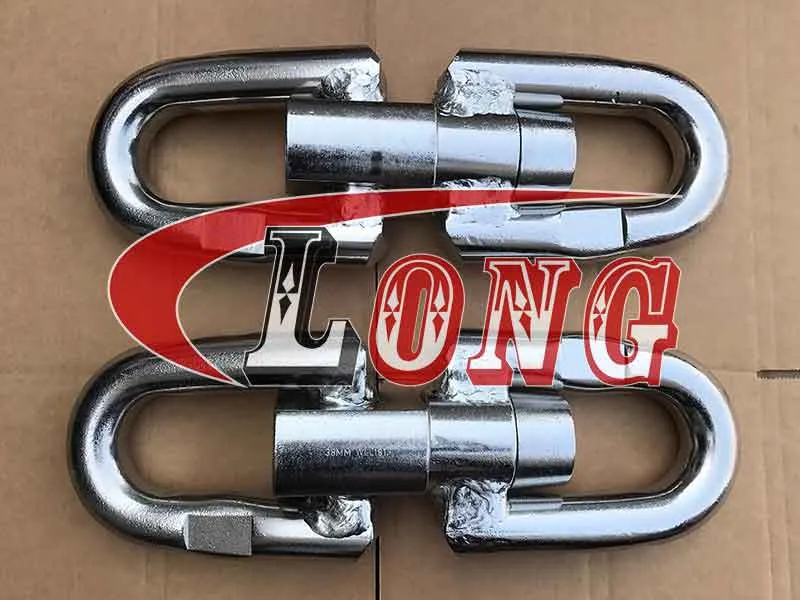

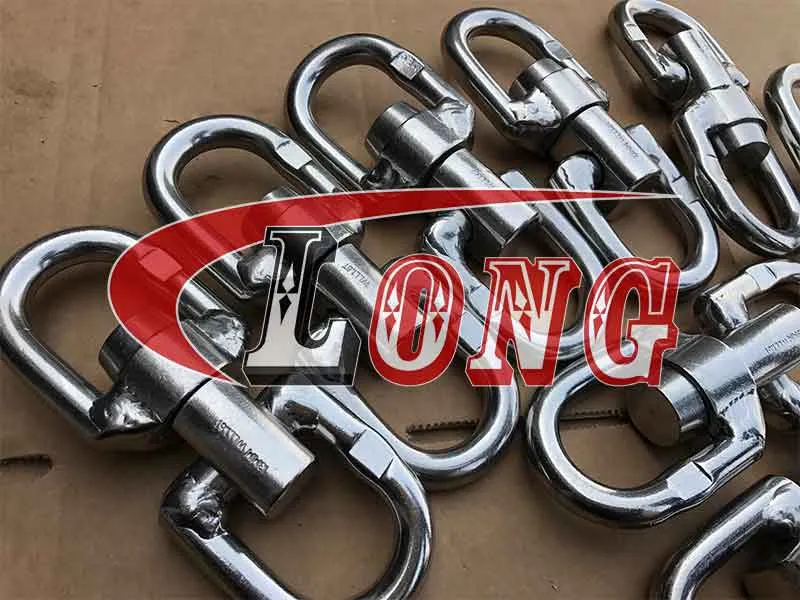

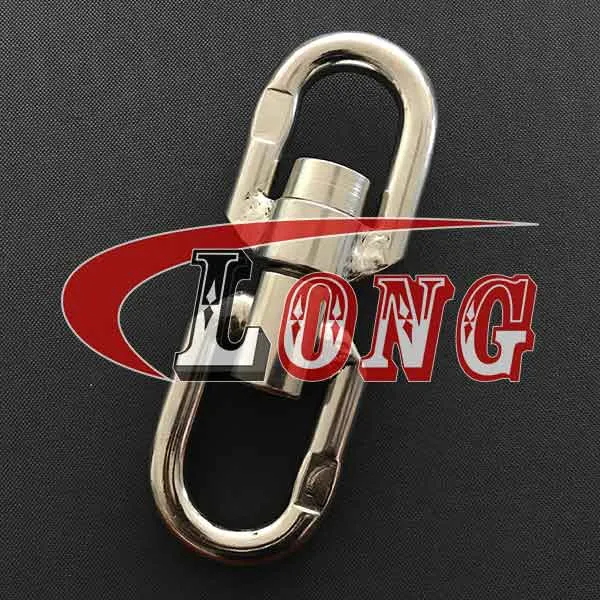

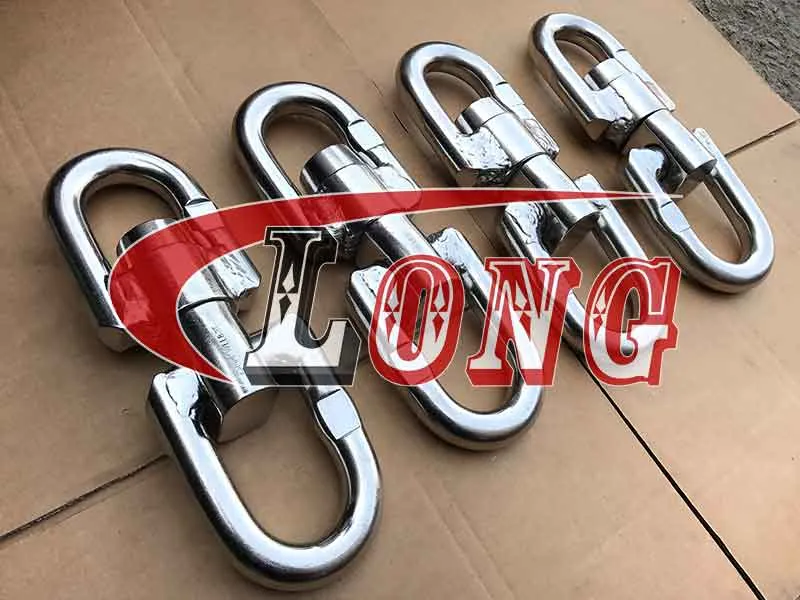

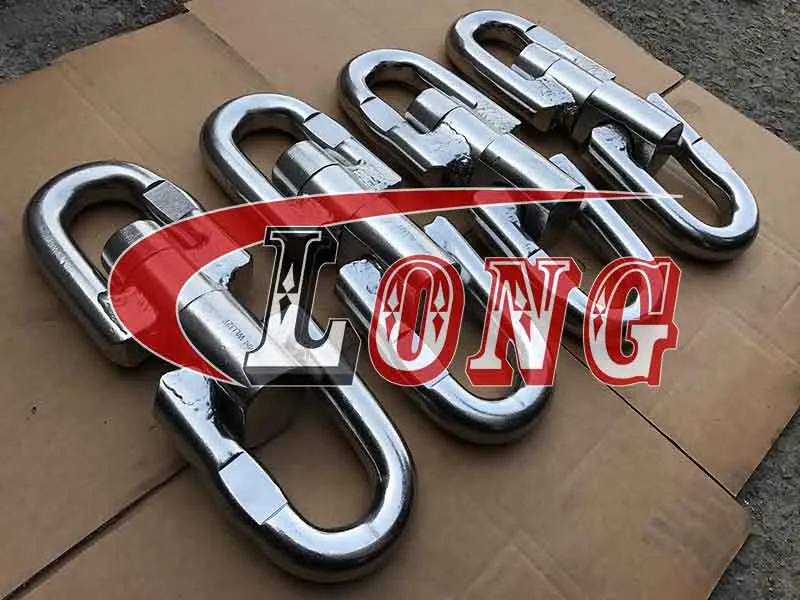

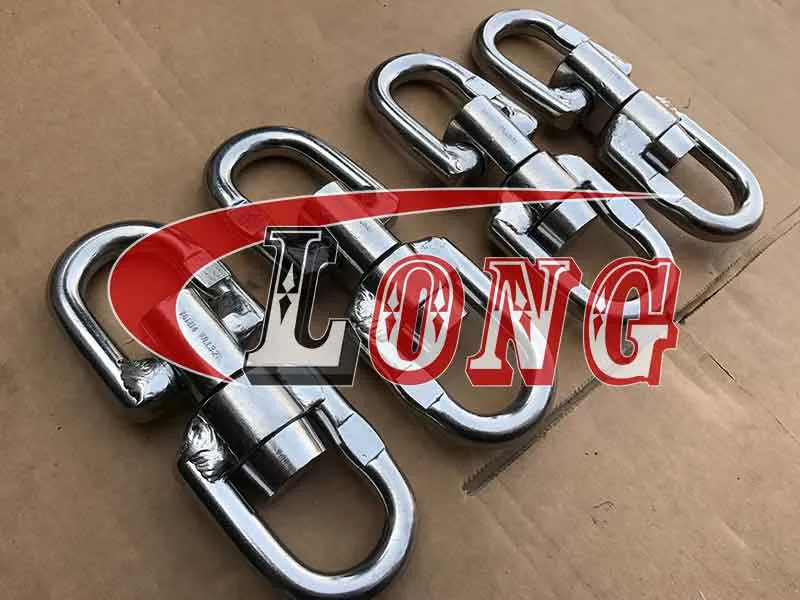

Bulk Photos of Swivel Stainless Steel Flexible WF Type Fishing & Trawling Gear-China

bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 2
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 3
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 4
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 5
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 6
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 7
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 8
bulk photos of swivel stainless steel flexible wf type fishing  trawling gear china 9
