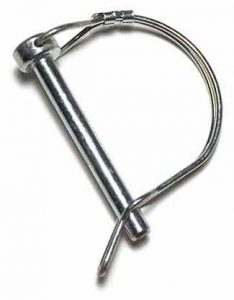

Tab Wire Lock Pin Round Type Galvanized – LG RIGGING®, also known as wire tab lock pin.
The wire loop is pulled over the pin end to lock it in place or remove it. This one piece fastener eliminates cotter pin loss and is suitable for the quickest release applications. It’s even easier to use than standard wire latches.
Tab Wire Lock Pins have a pin and cotter all in one assembly. Pull up on the tab to remove, push down on the wire loop to lock.
Tab acts as a load ramp which guides wire loop to a locked position when installing.
The material of round lock pin tab is carbon steel. Stainless Steel (304) is also available.
The finish of round head wire lock pin Zinc Plated (Clear), Stainless Steel is also available.
Material | Superior Carbon Steel Stainless Steel AISI304 is also available |
Processing | Stamped |
Finish | Electric Galvanized |
Size | 1/4”×1-3/8”, 1/4”×1-3/4”, 1/4”×2-1/4”, 1/4”×2-1/2”, 1/4”×2-1/2”5/16”×1-3/8”, 5/16”×1-3/4”, 5/16”×2-1/4”, 5/16”×2-1/2”, 5/16”×2-1/2” 5/16”×3”,3/8”×1-3/8”, 3/8”×1-3/4”, 3/8”×2-1/4”, 3/8”×2-1/2” 3/8”×2-1/2”, 3/8”×3”, 1/2”×3” |
Tips | Special specification and marks can be made according to customers’ requirements |

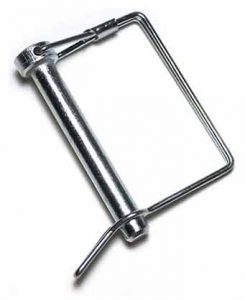

Part No. | Pin dia | Shank length | Usable length | Wire dia | Wire clearance | Head dia | Handle type | Pcs/bag | Wgt(lbs)/bag |
LGTWLP010 | 1/4 | 1-5/8 | 1-3/8 | 0.091 | 1-5/8 | 9/16 | RD | 25 | 2 |
LGTWLP012 | 1/4 | 2 | 1-3/4 | 0.091 | 1-9/16 | 9/16 | RD | 25 | 2 |
LGTWLP013 | 1/4 | 2-1/2 | 2-1/4 | 0.091 | 1-5/8 | 9/16 | SQ | 25 | 2 |
LGTWLP014 | 1/4 | 2-3/4 | 2-1/2 | 0.091 | 1-3/4 | 9/16 | SQ | 25 | 2 |
LGTWLP016 | 1/4 | 2-3/4 | 2-1/2 | 0.091 | 1-3/4 | 9/16 | RD | 25 | 2 |
LGTWLP020 | 5/16 | 1-5/8 | 1-3/8 | 0.091 | 1-9/16 | 5/8 | RD | 25 | 2 |
LGTWLP022 | 5/16 | 2 | 1-3/4 | 0.091 | 1-1/2 | 5/8 | RD | 25 | 2 |
LGTWLP023 | 5/16 | 2-1/2 | 2-1/4 | 0.091 | 1-9/16 | 5/8 | SQ | 25 | 3 |
LGTWLP024 | 5/16 | 2-3/4 | 2-1/2 | 0.091 | 1-11/16 | 5/8 | SQ | 25 | 3 |
LGTWLP026 | 5/16 | 2-3/4 | 2-1/2 | 0.091 | 1-11/16 | 5/8 | RD | 25 | 3 |
LGTWLP028 | 5/16 | 3-1/4 | 3 | 0.091 | 1-11/16 | 5/8 | SQ | 25 | 4 |
LGTWLP030 | 3/8 | 1-5/8 | 1-3/8 | 0.091 | 1-1/2 | 5/8 | RD | 25 | 3 |
LGTWLP032 | 3/8 | 2 | 1-3/4 | 0.091 | 1-7/16 | 5/8 | RD | 25 | 3 |
LGTWLP034 | 3/8 | 2-1/2 | 2-1/4 | 0.091 | 1-1/2 | 5/8 | SQ | 25 | 4 |
LGTWLP036 | 3/8 | 2-3/4 | 2-1/2 | 0.091 | 1-5/8 | 5/8 | SQ | 25 | 4 |
LGTWLP038 | 3/8 | 2-3/4 | 2-1/2 | 0.091 | 1-5/8 | 5/8 | RD | 25 | 4 |
LGTWLP039 | 3/8 | 3-1/4 | 3 | 0.091 | 1-5/8 | 5/8 | SQ | 25 | 4 |
LGTWLP040 | 1/2 | 3-1/2 | 3 | 0.125 | 1-7/16 | 3/4 | SQ | 10 | 3 |
