Name: Wide Body Sling Shackle Safety Pin Forged Alloy Steel
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

 Screw Pin D Shackle U.S. Type

 Screw Pin Anchor Shackle U.S. Type

 Bolt Type Anchor Shackle U.S. Type

 Bolt Type Chain Shackle U.S. Type

 Nonrated Screw Pin Anchor Shackle U.S. Type

 Commercial Dee Shackle with Screw Pin European Type

 Commercial Bow Shackle with Screw Pin

 JIS Type Screw Pin D Commercial Shackle

 Grade S Bow Shackle Screw Pin AS2741

 Grade S Dee Shackle with Screw Pin AS2741

 AS2741 Grade S Bow Shackle with Safety Pin&Nut

 AS2741 Grade S Dee Shackle with Safety Pin & Nut

 LG Mooring Shackle Bolt Type Pin

 Grade 80 Alloy Bolt Type Anchor Shackle

 Grade 80 Alloy Bolt Type Chain Shackle

 Wide Body Sling Shackle Safety Pin Forged Alloy Steel

 Grade 80 Alloy Screw Pin Anchor Shackle

 Grade 80 Alloy Screw Pin Chain Shackle

 B.S.3032 Small Bow Shackle with Screw Collar Pin

 B.S.3032 Small Dee Shackle with Screw Collar Pin

 B.S.3032 Large Bow Shackle with Screw Collar Pin

 B.S.3032 Large Dee Shackle with Screw Collar Pin

 Shackles Similar to Din 82101 Form A/B/C Galvanised

 Italy Type Galvanized Bow Shackle

 Italy Type Galvanized Dee Shackle

 Round Pin Anchor Shackle U.S. Type

 Round Pin Chain Shackle U.S. Type

 Piling Shackle,long d shackle-LG RIGGING®

 Trawling Shackle D Type Blue Painted Square Head Pin of Lifting & Rigging Shackles

 Trawling Shackle Bow Type Square Head Pin Blue Painted of Lifting & Rigging Shackles

 Bow Shackle Square Head Pin High Tensile of Lifting & Rigging Shackles

 Dee Shackle Square Head Pin for Lifting and Rigging Shackles

 Bow Shackle Sunken Head of Lifting & Rigging Shackles

 Dee Shackle Sunken Head of Lifting & Rigging Shackles

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Wide Body Sling Shackle Safety Pin Forged Alloy Steel

Safety Factor	4: 1
Material	Superior Forged Alloy Steel – Quenched and Tempered
Processing	Forged & 100% magnaflux crack detection
Finish	Body: Hot Dipped Galvanized Pin: Hot Dipped Galvanized/Powder Coating
Size-WLL	7T, 12.5T, 18T, 30T, 40T, 55T, 75T, 125T, 150T, 200T, 250T, 300T, 400T, 500T

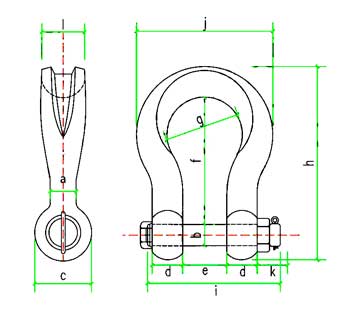

Specifications of Wide Body Sling Shackle Safety Pin Forged Alloy Steel

Part No.	WLL	diameter body	diameter pin	diameter eye	width eye	width inside	length inside	width bow	length	length bolt	width	thickness nut	bearing surface	width each	Tolerance
Part No.	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	l mm	kg	Tolerance
LG-WBS-BP-7	7	22	22	46	19	32	96	64	153	115	110	19	41	2	±5%
LG-WBS-BP-12.5	12.5	28	28	61	25	44	121	82	197	151	146	24	54	4	±5%
LG-WBS-BP-18	18	35	35	69	30	54	148	102	239	175	180	29	64	7	±5%
LG-WBS-BP-30	30	40	42	90	35	69	165	126	279	211	200	34	79	13	±5%
LG-WBS-BP-40	40	55	51	109	45	84	199	140	331	252	235	38	97	21	±5%
LG-WBS-BP-55	55	60	57	115	55	90	240	160	389	299	270	45	100	30	±5%
LG-WBS-BP-75	75	68	70	125	54	110	290	185	473	317	317	40	120	45	±5%
LG-WBS-BP-125	125	85	80	丨154	85	137	366	220	583	413	390	40	150	84	±5%
LG-WBS-BP-150	150	94	95	179	89	147	391	253	645	445	434	50	170	117	±5%
LG-WBS-BP-200	200	110	105	199	100	158	481	280	759	480	482	50	205	179	±5%
LG-WBS-BP-250	250	126	120	227	110	179	542	300	859	535	530	60	240	260	±5%
LG-WBS-BP-300	300	135	134	245	122	195	601	350	947	590	620	70	265	350	±5%
LG-WBS-BP-400	400	160	160	293	145	231	576	370	985	675	690	80	320	580	±5%
LG-WBS-BP-500	500	170	180	328	160	263	681	450	1131	748	790	90	339	780	±5%
