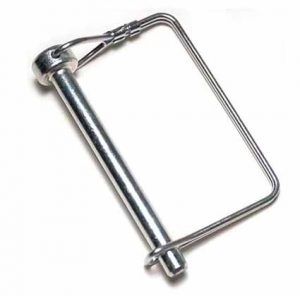

Information of Wire Lock Pin Galvanized – China LG™

Material	Superior Carbon Steel Stainless Steel AISI304 or AISI316 is also available
Processing	Stamped
Finish	Electric Galvanized
Size	1/4”×1-3/8”, 1/4”×1-3/4”, 1/4”×2-1/4”, 1/4”×2-1/2”, 1/4”×2-1/2” 5/16”×1-3/8”, 5/16”×1-3/4”, 5/16”×2-1/4”, 5/16”×2-1/2”, 5/16”×2-1/2” 5/16”×3”, 3/8”×1-3/8”, 3/8”×1-3/4”, 3/8”×2-1/4”, 3/8”×2-1/2” 3/8”×2-1/2”, 3/8”×3”, 1/2”×3”
Tips	Special specification and marks can be made according to customers’ requirements

Specifications of Wire Lock Pin Galvanized – China LG™

Part No.	Pin dia	Shank length	Usable length	Wire dia	Wire clearance	Head dia	Handle type	Pcs/bag	Wgt(lbs)/bag
LGWLP010	1/4	1-5/8	1-3/8	0.091	1-5/8	9/16	RD	25	2
LGWLP012	1/4	2	1-3/4	0.091	1-9/16	9/16	RD	25	2
LGWLP013	1/4	2-1/2	2-1/4	0.091	1-5/8	9/16	SQ	25	2
LGWLP014	1/4	2-3/4	2-1/2	0.091	1-3/4	9/16	SQ	25	2
LGWLP016	1/4	2-3/4	2-1/2	0.091	1-3/4	9/16	RD	25	2
LGWLP020	5/16	1-5/8	1-3/8	0.091	1-9/16	5/8	RD	25	2
LGWLP022	5/16	2	1-3/4	0.091	1-1/2	5/8	RD	25	2
LGWLP023	5/16	2-1/2	2-1/4	0.091	1-9/16	5/8	SQ	25	3
LGWLP024	5/16	2-3/4	2-1/2	0.091	1-11/16	5/8	SQ	25	3
LGWLP026	5/16	2-3/4	2-1/2	0.091	1-11/16	5/8	RD	25	3
LGWLP028	5/16	3-1/4	3	0.091	1-11/16	5/8	SQ	25	4
LGWLP030	3/8	1-5/8	1-3/8	0.091	1-1/2	5/8	RD	25	3
LGWLP032	3/8	2	1-3/4	0.091	1-7/16	5/8	RD	25	3
LGWLP034	3/8	2-1/2	2-1/4	0.091	1-1/2	5/8	SQ	25	4
LGWLP036	3/8	2-3/4	2-1/2	0.091	1-5/8	5/8	SQ	25	4
LGWLP038	3/8	2-3/4	2-1/2	0.091	1-5/8	5/8	RD	25	4
LGWLP039	3/8	3-1/4	3	0.091	1-5/8	5/8	SQ	25	4
LGWLP040	1/2	3-1/2	3	0.125	1-7/16	3/4	SQ	10	3
