wire rope ferrule jis type china lg rigging
wire rope ferrule jis type china lg rigging

LGRIG® Wire Rope Ferrule JIS Type

LGRIG® Wire Rope Ferrule JIS Type also known as wire rope sleeve, conforms to JIS type.

This wire rope ferrule JIS type is made of superior Aluminium alloy, been extruded and machined.

Aluminium ferrule is great for safety in fabrication and application.

Aluminium sleeves duplex oval shape can be easily attached to wire rope directly by crimping tools.

Our range of is Wire rope ferrule Aluminium available in standard as well as customized sizes.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
LGRIG® Cable Ferrule Aluminium DIN 3093(EN 13411-3) of Wire Rope Sleeves Ferrules
LGRIG® Cable Ferrule Stainless Steel DIN 3093(EN 13411-3)
LGRIG® Wire Rope Ferrule Aluminium Oval Shape
LGRIG® Wire Rope Sleeve Double Barrel Ferrule
LGRIG® Wire Rope Ferrule JIS Type
LGRIG® Wire Rope Ferrule Form C DIN 3093
LGRIG® Wire Rope Ferrule Copper Hourglass Ferrules
LGRIG® Copper Button Stop Round Ferrule
LGRIG® Swage Sleeve Flemish Eye Steel S505
LGRIG® Swage Duplex Sleeves Steel S-506
LGRIG® Wire Rope End Stop Steel LGS-409
Aluminium Stop Sleeve Button Stops LG RIGGING®
Copper Ferrule Oval Type LG RIGGING®
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Wire Rope Ferrule JIS Type

Brand

LGRIG®

Material

Superior Aluminium Material

Processing

Machining + Extruded

Size

6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm

18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm

Country of Origin

China

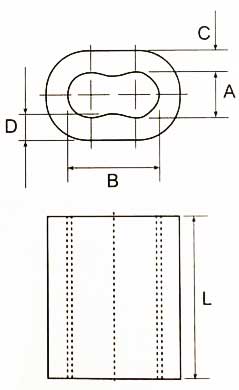

Specifications of LGRIG® Wire Rope Ferrule JIS Type


Part No.

Size

A

B

C

D

L

Weight

mm

kgs/1000pcs

LGAWRFJIS06

6

7

13.8

3.2

3.8

24

10

LGAWRFJIS07

7

8.2

16.2

3.6

4.25

26

14

LGAWRFJIS08

8

9.4

18.6

4

4.7

32

22

LGAWRFJIS09

9

10.22

20.7

4.3

5.52

36

29

LGAWRFJIS10

10

11.6

23

4.5

5.5

40

37

LGAWRFJIS12

12

13.62

27.6

5.3

6.92

48

63

LGAWRFJIS14

14

15.89

32.2

5.53

7.42

56

88

LGAWRFJIS16

16

18.16

36.8

6.32

8.48

64

130

LGAWRFJIS18

18

20.43

41.4

7.11

9.54

72

186

LGAWRFJIS20

20

23.1

46

7.7

9.2

80

245

LGAWRFJIS22

22

25.4

50.6

8.3

10

88

319

LGAWRFJIS24

24

27.8

55.3

8.9

10.9

96

408

LGAWRFJIS26

26

29.9

59.8

10.7

12.9

104

581

LGAWRFJIS28

28

32.2

64.4

11.3

13.6

112

714

LGAWRFJIS30

30

34.5

69

11.8

14.3

120

859

LGAWRFJIS32

32

36.8

73.6

12.5

15.2

128

1026


LGRIG® provide you High Strength Forged & Welded Alloy Steel Master Link for use in grade 80 & grade 100 chain slings. Perfect for a wide variety of lifting applications.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Wire Rope Sleeves/Ferrules

LGRIG® Swage Duplex Sleeves Steel S-506
LGRIG® Swage Duplex Sleeves Steel S-506
LGRIG® Wire Rope Ferrule Form C DIN 3093
LGRIG® Wire Rope Ferrule Form C DIN 3093
LGRIG® Cable Ferrule Stainless Steel DIN 3093(EN 13411-3)
LGRIG® Cable Ferrule Stainless Steel DIN 3093(EN 13411-3)
LGRIG® Wire Rope Ferrule Aluminium Oval Shape
LGRIG® Wire Rope Ferrule Aluminium Oval Shape
Aluminium Stop Sleeve Button Stops LG RIGGING®
Aluminium Stop Sleeve Button Stops LG RIGGING®
LGRIG® Wire Rope Ferrule Copper Hourglass Ferrules
LGRIG® Wire Rope Ferrule Copper Hourglass Ferrules
LGRIG® Wire Rope End Stop Steel LGS-409
LGRIG® Wire Rope End Stop Steel LGS-409
LGRIG® Cable Ferrule Aluminium DIN 3093(EN 13411-3) of Wire Rope Sleeves Ferrules
LGRIG® Cable Ferrule Aluminium DIN 3093(EN 13411-3) of Wire Rope Sleeves Ferrules
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
