Information of LGRIG® Double Leg Wire Rope Sling

Brand	LGRIG®
Standard	EN13414
Material	Superior Mild Steel
Safety Factor	5:1
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm 28mm, 32mm, 38mm, 40mm, 44mm, 52mm, 56mm, 64mm, 70mm
Country of Origin	China

Specifications of LGRIG® Double Leg Wire Rope Sling

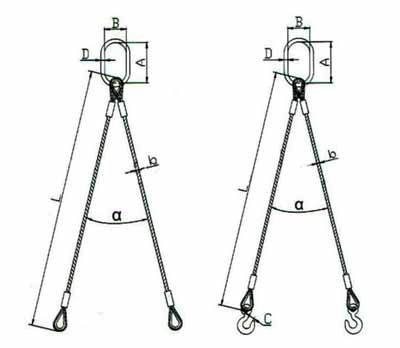

Part No.	Rope dia. (mm)	WLL(KN) α≤90o	WLL(KN) 90o≤α≤120o	Loop dimension AｘBｘC(mm)	Dimension of hook opening C(mm)
LG2LWRS06	6	4.10	2.90	110ｘ60ｘ14	24
LG2LWRS08	8	6.90	4.90	110ｘ60ｘ14	24
LG2LWRS10	10	11.00	7.90	110ｘ60ｘ16	25
LG2LWRS12	12	16.50	11.80	110ｘ60ｘ16	25
LG2LWRS14	14	22.00	15.70	135ｘ75ｘ18	27
LG2LWRS16	16	30.00	21.60	135ｘ75ｘ18	30
LG2LWRS18	18	37.00	26.50	160ｘ90ｘ22	38
LG2LWRS20	20	45.00	32.40	160ｘ90ｘ22	38
LG2LWRS24	24	68.60	49.00	180ｘ100ｘ26	45
LG2LWRS28	28	96.00	68.60	200ｘ110ｘ32	61
LG2LWRS32	32	123.60	88.30	260ｘ140ｘ36	66
LG2LWRS38	38	165.00	117.70	300ｘ160ｘ40	87
LG2LWRS40	40	185.00	132.40	340ｘ180ｘ45	87
LG2LWRS44	44	206.00	147.00	340ｘ180ｘ45	87
LG2LWRS52	52	302.40	216.00	350ｘ190ｘ50	102
LG2LWRS56	56	359.80	257.00	400ｘ200ｘ56	107
LG2LWRS64	64	469.00	335.00	430ｘ220ｘ63	121
LG2LWRS70	70	560.00	400.00	460ｘ250ｘ72	146

LGRIG® provide you High Strength Forged & Welded Alloy Steel Master Link for use in grade 80 & grade 100 chain slings. Perfect for a wide variety of lifting applications.
