Name: Wire Turned Eye Bolt, Unwelded Eye Bolt
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

 Metric Collared Eyebolt BS 4278 Table 1

 Fork Head Clevis Joint DIN71752 LG RIGGING®

 DIN580 Eye Bolt

 DIN582 Lifting Eye Nut

 Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

 Long Shank Metric Collared Eye bolt BS4278 Table-1

 Oval Link Eyebolts to BS 4278 Table 2

 Metric Dynamo Eyebolts to BS 4278 Table 3

 Long Shank Metric Dynamo Eyebolts to BS 4278 Table 3

 JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

 JIS B 1169 Forged Eye Nut

 Forged Screw Eye Bolts – LG RIGGING®

 Forged Shoulder Nut Eye Bolts

 Forged Shoulder Machinery Eye Bolt S-279/M-279

 Regular Nut Eye Bolts G-291 – LG RIGGING®

 G-400 Threaded Eye Nut UNC Galvanized

 Wood Screw Lag Thread Ring Bolt

 Wire Turned Eye Bolt, Welded Eye Bolt

 Wire Turned Eye Bolt, Unwelded Eye Bolt

 Lag Screw Eye Bolt, Welded

 Rectangular Base Deck Eye Plates

 DIN 444 Eye Swing Bolts

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Wire Turned Eye Bolt, Unwelded Eye Bolt

Manufactured from steel wire.
Designed for home and industrial applications.
Hex nut included.
Standard machine-screw threads.

Available Size for Wire Turned Eye Bolt, Bent Eye Bolt, Plain Eye Bolt with Hex Nut:

6-32 Wire Turned Eye Bolt, Bent Eye Bolt; 5/16-18 Wire Turned Eye Bolt, Bent Eye Bolt;

8-32 Wire Turned Eye Bolt, Bent Eye Bolt; 10-24 Wire Turned Eye Bolt, Bent Eye Bolt;

3/8-16 Wire Turned Eye Bolt, Bent Eye Bolt; 10-32 Wire Turned Eye Bolt, Bent Eye Bolt;

1/4-20 Wire Turned Eye Bolt, Bent Eye Bolt; 7/16-14 Wire Turned Eye Bolt, Bent Eye Bolt;

1/2-13 Wire Turned Eye Bolt, Bent Eye Bolt; 5/8-11 Wire Turned Eye Bolt, Bent Eye Bolt.

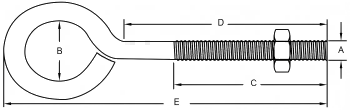

Specifications of Wire Turned Eye Bolt, Unwelded Eye Bolt

Part.No.	Weight Lbs.	Dimensions
		A	B	C	D	E
		Thread SizeUNC-2A	ID Eye	Thread Length	Shank Length	Overall Length
LGWTEB101	0.006	6-32	1/4	15/16	1	11/2
LGWTEB102	0.006	8-32	1/4	1	11/16	15/8
LGWTEB103	0.012	8-32	3/8	1	11/16	13/4
LGWTEB104	0.016	10-24	5/16	11/8	11/4	15/16
LGWTEB105	0.018	10-24	3/8	7/8	1	11/16
LGWTEB106	0.02	10-24	3/8	1	2	11/16
LGWTEB107	0.024	10-24	3/8	11/2	3	11/16
LGWTEB108	0.01	10-32	11/32	9/32	3/16	11/16
LGWTEB109	0.034	1/4-20	9/16	7/8	1	2
LGWTEB110	0.042	1/4-20	9/16	13/8	11/2	21/2
LGWTEB111	0.04	1/4-20	3/8	13/4	13/16	25/8
LGWTEB112	0.042	1/4-20	9/16	11/2	2	3
LGWTEB113	0.044	1/4-20	9/16	11/2	21/2	31/2
LGWTEB114	0.056	1/4-20	9/16	11/2	3	4
LGWTEB115	0.068	1/4-20	9/16	3	4	5
LGWTEB116	0.074	5/16-18	1/2	2	21/8	31/4
LGWTEB117	0.082	5/16-18	3/4	13/4	2	31/4
LGWTEB118	0.09	5/16-18	3/4	2	25/8	4
LGWTEB119	0.09	5/16-18	3/4	11/2	23/4	41/8
LGWTEB120	0.128	5/16-18	3/4	21/2	45/8	6
LGWTEB121	0.132	3/8-16	5/8	23/8	21/2	37/8
LGWTEB122	0.154	3/8-16	1	21/8	21/4	4
LGWTEB123	0.176	3/8-16	1	21/2	31/4	5
LGWTEB124	0.204	3/8-16	1	21/2	41/4	6
LGWTEB125	0.254	3/8-16	1	21/2	61/4	8
LGWTEB126	0.344	7/16-14	1	21/2	6	8
LGWTEB127	0.332	1/2-13	1	23/4	3	5
LGWTEB128	0.372	1/2-13	1	3	4	6
LGWTEB129	0.422	1/2-13	1	3	5	7
LGWTEB130	0.464	1/2-13	1	3	6	8
LGWTEB131	0.556	1/2-13	1	3	8	10
LGWTEB132	0.644	5/8-11	1.25	3	3.5	6
