Zinc Alloy Turnbuckle Hook & Eye ES Type Die Casting

Zinc Alloy Turnbuckle Hook & Eye ES Type Die Casting, also known as Cast Zinc Hook & Eye Turnbuckle, hook & hook, eye & eye is in the same way.

The following die cast turnbuckles have zinc alloy bodies with steel hooks and eyes which will not rust or freeze to fittings.

Mini turnbuckle Hook and eye die cast, manufactured using superior grade raw material zinc alloy steel as per international qualitative standards.

Manufactured from cast steel in zinc plated finish.

Our range of zinc alloy turnbuckles is available in standard as well as customized sharps and sizes.

Used in conjunction with Wire Rope assemblies etc for light duty tensioning applications.

Hook and eye end fittings for intended applications.

Available Size: M5X50, M5X70, M6X60, M6X100, M8X70, M8X110, M10X80, M10X120, M12X130.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Tools
Hooks / Links / Rope Fittings
Trawling Chain
Synthetic Rope
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Galvanized Turnbuckle Jaw&Jaw US Type
Forged Turnbuckle with Plain Ends for Swimming Pool-China
Galvanized Turnbuckle Eye&Eye US Fed Spec
Galvanized Turnbuckle Jaw & Eye US Type
Galvanized Turnbuckle Hook & Eye US Fed Spec
Galvanized Turnbuckle Hook & Hook US Fed Spec
DIN 1478 Closed Turnbuckle Body
DIN 1478 Turnbuckle Jaw/Jaw
DIN 1478 Turnbuckle Eye/Eye
DIN 1478 Closed Body Turnbuckle Jaw & Eye
DIN 1478 Turnbuckle Eye/Hook
DIN 1478 Turnbuckle Hook/Hook Galvanized
DIN 1478 Turnbuckle With Stub End
DIN1480 Turnbuckle Body Only
DIN 1480 Turnbuckle Eye & Eye
DIN 1480 Turnbuckle Hook-Eye
DIN 1480 Turnbuckle Hook-Hook
DIN 1480 Turnbuckle Plain End
DIN 1480 Turnbuckle Stub End
Galvanized Rigging Screw Turnbuckle Body-LG RIGGING®
Closed Body Turnbuckle Jaw&Jaw Rigging Screw – LG RIGGING®
Galvanized Closed Body Turnbuckle Eye&Eye-LG RIGGING®
Galvanized Closed Body Turnbuckle Jaw&eye-LG RIGGING®
JIS Forged Steel Frame Type Turnbuckle
DIN 1480 Turnbuckle Cast Hook & Hook
Turnbuckle Cast DIN1480 Eye & Hook
Cast Zinc Eye & Eye Turnbuckle
Zinc Alloy Turnbuckle Hook & Eye ES Type Die Casting
Cast Zinc Hook & Eye Turnbuckle Open Body RS Type
Cast Zinc Hook & Hook Turnbuckle
Italy Type Turnbuckle Eye and Hook
Italy Type Turnbuckle Eye and Eye
Italy Type Turnbuckle Hook and Hook
Deck Lashing Turnbuckle with Pelican Hook and Pear Link
Hamburger D-D Turnbuckle, Lashing Turnbuckle
Casting Turnbuckles DIN1480 Eye/Eye-3
Galvanised Straining Screw DIN1480 Turnbuckle Jaw/Jaw-1
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information ofZinc Alloy Turnbuckle Hook & Eye ES Type Die Casting

Material

Superior zinc alloy

Processing

Die casting

Finish

Zinc plated

Size

M5X50, M5X70, M6X60, M6X100, M8X70, M8X110, M10X80, M10X120, M12X130

Tips

Hook and eye end fittings for intended applications.

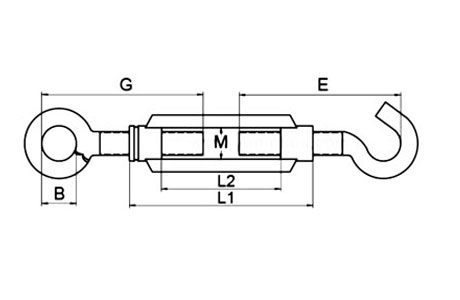

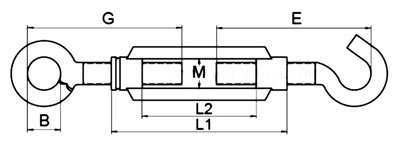

Specifications of Zinc Alloy Turnbuckle Hook & Eye ES Type Die Casting

Specifications of Zinc Alloy Turnbuckle Hook & Eye ES Type Die Casting


Part No.

Size

L1

L2

B

G

E

M

Weight


g/pc

mm

LGZATES-M5X50

M5X50

50

30

8

43

43

7

30

LGZATES-M5X70

M5X70

70

50

9

50

50

7

37

LGZATES-M6X60

M6X60

60

35

10

52

50

8

50

LGZATES-M6X100

M6X100

100

70

10

70

70

10

67

LGZATES-M8X70

M8X70

70

45

11

60

55

11

85

LGZATES-M8X110

M8X110

110

80

11

80

75

11

125

LGZATES-M10X80

M10X80

80

50

12

70

60

11

156

LGZATES-M10X120

M10X120

120

80

15

100

95

16

195

LGZATES-M12X130

M12X130

130

90

15

105

100

15

385


China LG Supply offers a wide variety of fittings and assemblies in wire rope turnbuckles.



We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Turnbuckles

Italy Type Turnbuckle Hook and Hook
Italy Type Turnbuckle Hook and Hook
Deck Lashing Turnbuckle with Pelican Hook and Pear Link
Deck Lashing Turnbuckle with Pelican Hook and Pear Link
Italy Type Turnbuckle Eye and Eye
Italy Type Turnbuckle Eye and Eye
Hamburger D-D Turnbuckle, Lashing Turnbuckle
Hamburger D-D Turnbuckle, Lashing Turnbuckle
Galvanized Turnbuckle Jaw&Jaw US Type
Galvanized Turnbuckle Jaw&Jaw US Type
Cast Zinc Hook & Hook Turnbuckle
Cast Zinc Hook & Hook Turnbuckle
Galvanized Turnbuckle Eye&Eye US Fed Spec
Galvanized Turnbuckle Eye&Eye US Fed Spec
DIN 1480 Turnbuckle Eye & Eye
DIN 1480 Turnbuckle Eye & Eye
China LG RIGGING's Updates
Exhibition in Chile 2024
29
Oct
2024
Exhibition in Chile 2024 Learn More
Exhibition in Cologne, Germany 2024
28
Oct
2024
Exhibition in Cologne, Germany 2024 Learn More
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble
25
Apr
2024
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
