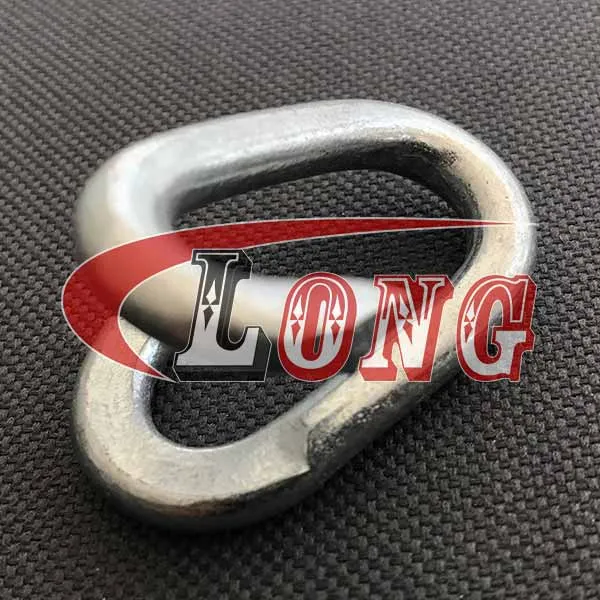

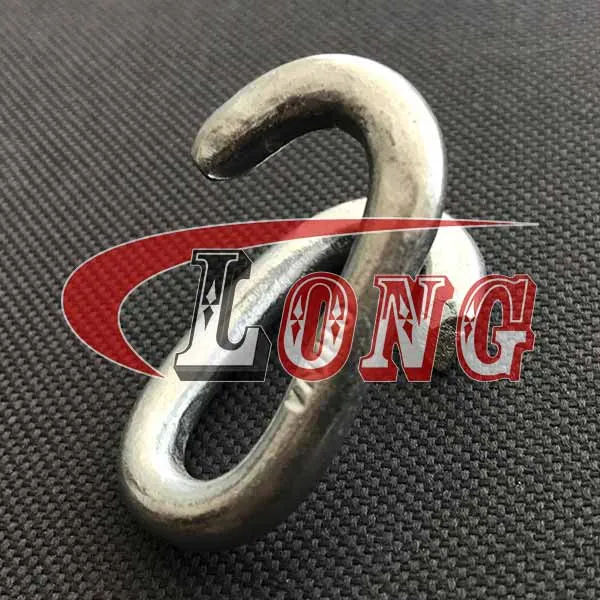

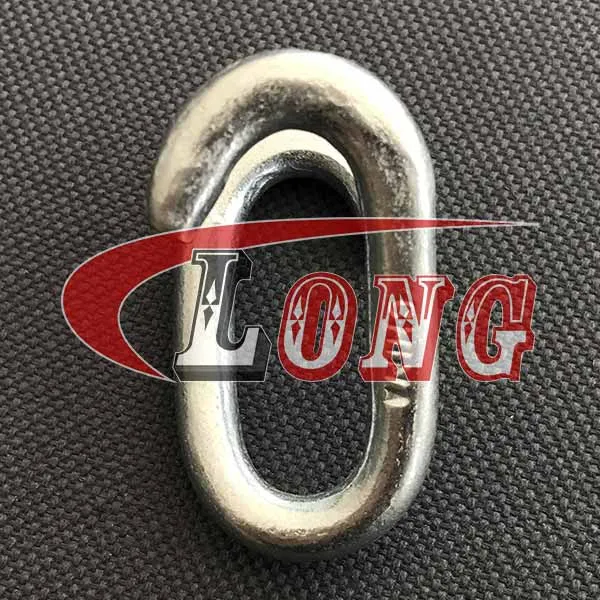

Name: Zinc Plated Chain Lap / Repair Link, Mending Link
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

 Grade 100 Alloy Lifting Chain EN818-2 of Chains and Accessories

 Grade 80 Alloy Lifting Chains EN818-2 of Chains and Accessories

 G80 Alloy Lifting Chain EN818-7 of Chains and Accessories

 Fishing Link Chain G80 Alloy Steel of Chains and Accessories

 Grade 70 Transport Chain Binder Chain US Fed. Spec.

 DIN 763 Long Link Chain

 DIN 764 Medium Link Chain

 DIN 766 Short Link Chain

 Calibrated Anchor Chain DIN 766

 Calibrated Anchor Chain DIN 766 Stainless Steel

 DIN 5685 A/C Short/Long Link Chain

 DIN 5683 Long Link Chain-LG RIGGING®

 Australian Standard Grade 70 Chain

 Austrilian Standard Short Link Chain

 Regular Link Proof Coil Chain Australian Standard

 Long Link Proof Coil Chain Australian Standard

 Grade L Lifting Chain G30 Galvanised

 Long Link Trailer Safety Chains NZS5467 G70

 Studless Link Anchor Chain Common Link

 Grade U1 U2 U3 Stud Link Anchor Chain Common Link

 Grade 70 Chain Anchor with Delta Ring and Grab Hook

 Grab Hook w/ 18'' Chain Anchor Pear Ring

 Trailer Safety Chain with 2 ''S'' Hooks Grade 30

 G43/ G70 Chain With Clevis Hooks/Eye Hooks

 Straight Link Coil Chain, Zinc Plated

 Twist Link Coil Chain, Zinc Plated

 Double Loop Weldless Chain

 Sash Chains, Weldless Chain

 Cold Shut Chain Links

 Zinc Plated Chain Lap / Repair Link, Mending Link

 Clevis Lug Links Grade 70 Australia Standard

 Split Connecting Links, Chain Connecting Links, G-335 Missing Link

 Grade 43 High Test Chain, Towing Chain

 Twin Clevis Link of Chains and Accessories

 Double Clevis Link Forged Steel of Chains and Accessories

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Zinc Plated Chain Lap / Repair Link, Mending Link

Material	Low Carbon Steel
Processing	Stamping
Finish	Electric Galvanized / Hot Dipped Galvanized
Size	3.5mm, 5mm, 5.5mm, 6mm, 8mm, 9.5mm, 12mm
Tips	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of Zinc Plated Chain Lap / Repair Link, Mending Link

Part No.	Wire Dia.	Over Length	N.W.
	mm	mm	kgs
LGRL01	3.5	19	0.006
LGRL02	5	25	0.014
LGRL03	5.5	32	0.023
LGRL04	6	32	0.03
LGRL05	6	38	0.036
LGRL06	8	38	0.06
LGRL07	9.5	42	0.085
LGRL08	9.5	50	0.11
LGRL09	12	64	0.255
