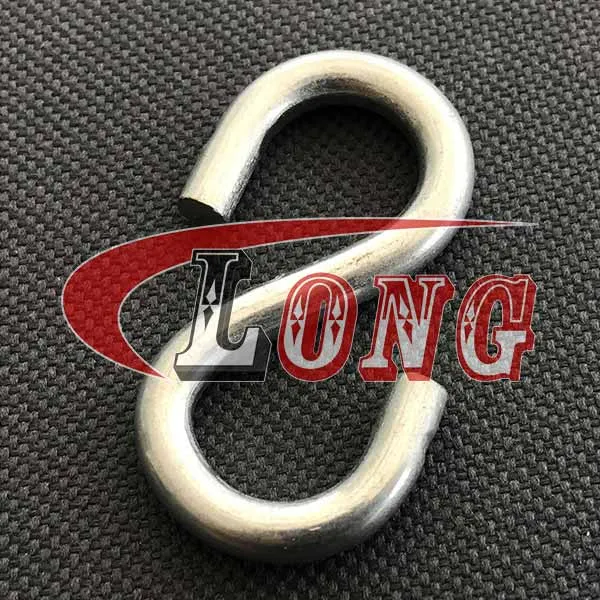

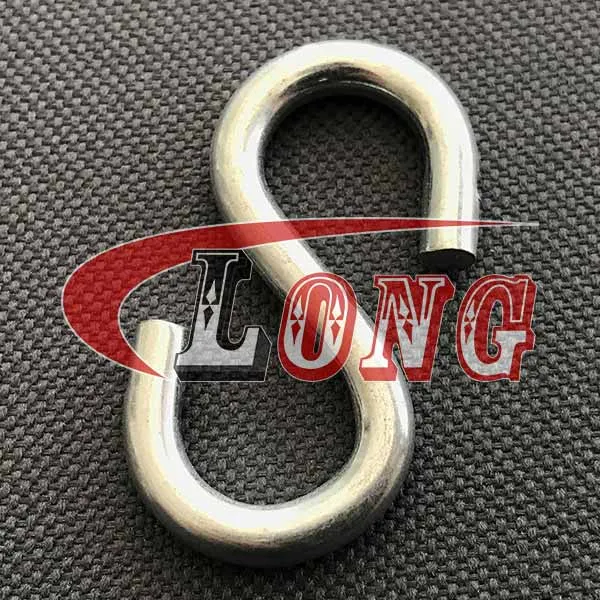

Specifications of Zinc Plated S-Hook, Galvanized S Hook

Information of Zinc Plated S-Hook, Galvanized S Hook

Part No.	Size	B	C	D	L	N.W.
S Hook	mm	mm	mm	mm	mm	kgs/100pcs
LGSHZP01	2.5	6	3	2.5	20	0.17
LGSHZP02	3	7	3.5	3	25	0.3
LGSHZP03	3.5	9	4	3.5	30	0.48
LGSHZP04	4	11	5	4	35	0.78
LGSHZP05	4.5	12	5.5	4.5	40	1.15
LGSHZP06	5	14	6	5	45	1.52
LGSHZP07	6	16	7	6	55	2.6
LGSHZP08	7	181	8	7	65	4.5
LGSHZP09	8	23	10	8	75	6.5
LGSHZP10	10	25	13	10	100	12.6
LGSHZP11	12	30	15	12	120	15

WARNING: Once the S-hooks have been opened they will have to be replaced to avoid injuries from coming open and/or breaking.

China LG Supply offers a wide variety of Regular Wire Hooks.

“S” Hook also available in Stainless Steel Material（ AISI304， AISI316), has an excellent finish for use in applications with extreme exposure to dust, chemicals or the environment (such as salt water).
