LGRIG®-marine-single-cross-bollard-stainless-steel-dr-type
LGRIG®-marine-single-cross-bollard-stainless-steel-dr-type

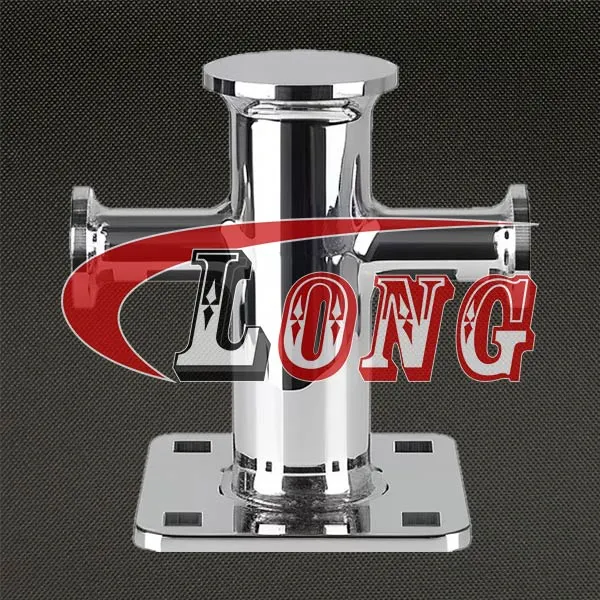

LGRIG® Marine Single Cross Bollard Stainless Steel DR Type

LGRIG® Marine Single Cross Bollard Stainless Steel DR Type, also known as Single Cross Bitt Boat Bollard.

The marine bollard series includes five types: Type A, Type B (inserted bollard), Type C (simple bollard), Type D (single cross), and Type E (double cross). Each type is manufactured to standard specifications with various nominal diameters and carries China Classification Society (CCS) certification.

The Type D single cross bollard is made of stainless steel. Its cross-shaped structure evenly distributes mooring line tension, delivering exceptional durability and reliable holding power.

Designed for easy installation on concrete, steel, or wood surfaces, this bollard requires minimal upkeep while complying with industry safety standards to prevent line slippage.

Ideal for securing vessels in harsh marine environments, the Type D bollard ensures safe mooring operations and offers long-term cost efficiency. Customized bollard solutions are also available upon request.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Footrope Gear
Trawl Door
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless Chains
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Stainless Steel Grab Handle Connection-LG RIGGING®
Stainless Steel Folding Cleat-China LG Manufacture
Marine Single Cross Bollard Cleat Stainless Steel-LG RIGGING®
Stainless Steel Straight Chock-China LG Manufacture
Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware
Stainless Steel Boat Cleat Four-Hole Stainless Steel Type 4A
Stainless Steel Skene Type Fairlead-China LG Manufacture
Boat Cleat 2-Hole Low Flat Stainless Steel Type 2A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type A
LGRIG® Marine Single Cross Bollard GB 10106-88 Type B
LGRIG® Marine Double Bollard GBT554-1996 Type A
LGRIG® Marine Double Bollard GBT554-1996 Type B
LGRIG® Marine Double Bollard GBT554-1996 Type C
LGRIG® Marine Single Cross Bollard Stainless Steel GBT554-1996 Type D
LGRIG® Marine Double Cross Bollard GBT554-1996 Type E
LGRIG® Marine Double Bollard GBT554-2008 Type A
LGRIG® Marine Double Bollard GBT554-2008 Type B
LGRIG® Marine Double Bollard GBT554-2008 Type C
LGRIG® Marine Double Cross Bollard GBT554-2008 Type DH
LGRIG® Marine Double Cross Bollard GBT554-2008 Type DL
LGRIG® Welded Inclined Bollard CBT 169-1999
LGRIG® Marine Single Cross Bollard CBT3845-2013
LGRIG® Marine Double Bollard DIN 82607-1995
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® Marine Single Cross Bollard JIS F2804-1976
LGRIG® Marine Double Bollard ISO 13795-2012 Type A
LGRIG® Marine Double Bollard ISO 13795-2012 Type B
LGRIG® Marine Double Bollard NS 2584
LGRIG® Cast Iron Dock Bollards
LGRIG® Curved Type Bollard
LGRIG® CVI Bollards
LGRIG® Dock Inclined Double Bitts Bollard
LGRIG® J Type Dock Bollards
LGRIG® K Head Dock Bollards
LGRIG® R Type Dock Bollards
LGRIG® Single Bitt Bollard
LGRIG® Stag Horn Type Bollard
LGRIG® T Head Dock Bollards
LGRIG® Twin Horn Bollard
LGRIG® Y Type Dock Bollards
LGRIG® Marine Single Cross Bollard Stainless Steel DR Type
LGRIG® Marine Single Cross Bollard Stainless Steel DS Type

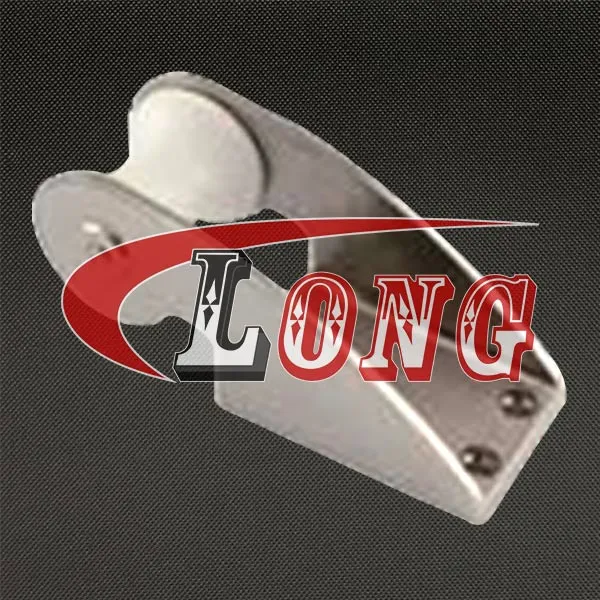

LGRIG® Stainless Steel Bow Roller RB Type
LGRIG® Stainless Steel Rope Cleat
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Marine Single Cross Bollard Stainless Steel DR Type

Brand

LGRIG®

Material

Stainless Steel

Style

Marine Single Cross Bollard

Type

DR Type

Country of Origin

China


Specification of LGRIG® Marine Single Cross Bollard Stainless Steel DR Type


Part No.

SIZE

A

B

C

D

E

Weight(KG)

LGSSCBDR4

4"

92.0

100.0

66.0

46.0

6.3

0.355

LGSSCBDR5

5"

113.0

125.0

84.0

60.0

8.3

0.626

LGSSCBDR6

6"

136.0

150.0

100.0

70.0

10.3

0.998

LGSSCBDR8

8"

180.0

200.0

135.0

95.0

10.3

1.925


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Cleats & Fairleads

LGRIG® Stainless Steel Bow Roller RB Type
LGRIG® Stainless Steel Bow Roller RB Type
LGRIG® Marine Double Bollard DIN 82607-1995
LGRIG® Marine Double Bollard DIN 82607-1995
Stainless Steel Grab Handle Connection-LG RIGGING®
Stainless Steel Grab Handle Connection-LG RIGGING®
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® Marine Double Bollard JIS F2001-1995
LGRIG® Marine Single Cross Bollard CBT3845-2013
LGRIG® Marine Single Cross Bollard CBT3845-2013
LGRIG® K Head Dock Bollards
LGRIG® K Head Dock Bollards
LGRIG® J Type Dock Bollards
LGRIG® J Type Dock Bollards
Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware
Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
