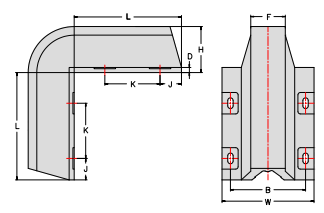

Specification of LGRIG® Corner Arch Fenders

Part No.	Specification	H	W	B	F	D	J	K	L
LGCAFR220H	200H	200	400	320	150	24	120	420~550	750~1000
LGCAFR250H	250H	250	500	410	164	30	130	420~550	750~1000
LGCAFR300H	300H	300	600	490	225	33	140	420~550	750~1000

Units:mm

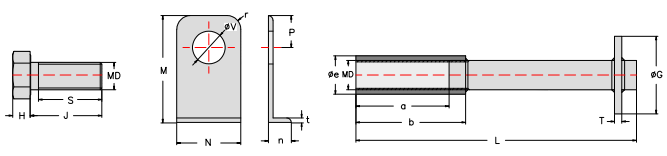

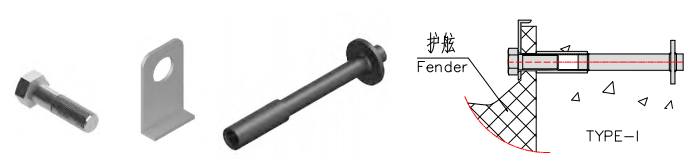

Precast Nut of LGRIG® Corner Arch Fenders

Specification	Hex Bolt				L-Washer							Precast Nut			Anchor Rod,plate
Specification	MD	H	J	S	N	n	M	P	t	V	r	a	b	e	T	L	G
150H	M22	14	55	50	68	12	60	23	5	24	10	50	75	31	6	165	50
200H	M24	15	65	55	74	14	80	33	5	26	10	59	85	34	6	180	55
250H	M27	17	65	60	88	16	95	42	5	30	15	60	90	37	9	200	55
300H	M30	19	85	70	100	19	110	47	5	37	15	85	120	42	9	300	80
400H	M36	23	95	80	119	22	126	52	6	43	25	85	125	48	9	360	85
500H	M42	26	110	90	127	25	145	56	6	49	30	95	140	58	12	420	110
600H	M48	30	110	100	139	28	165	61	6	52	30	95	145	65	12	480	115
800H	M64	40	150	120	195	32	266	124	8	70	40	125	190	78	16	640	130
1000H	M64	40	150	120	215	36	306	134	8	70	40	125	190	78	16	640	130

Units:mm

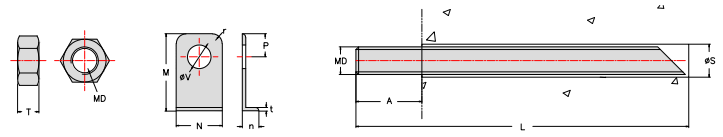

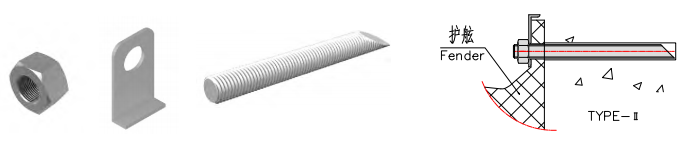

Anchor Bolt Ⅱ of LGRIG® Corner Arch Fenders

Specification	Anchor Bolt				Nut	L-Washer
Specification	MD	A	L	φS	T	N	n	M	P	t	V	r
150H	M22	50	260	28	18	68	12	60	23	5	24	10
200H	M24	55	280	30	20	74	14	80	33	5	26	10
250H	M27	60	320	32	22	88	16	95	42	5	30	15
300H	M30	65	360	38	24	100	19	110	47	5	37	15
400H	M36	80	440	46	29	119	22	126	52	6	43	25
500H	M42	90	510	55	32	127	25	145	56	6	49	30
600H	M48	100	580	60	36	139	28	165	61	6	52	30
800H	M64	125	780	75	49	195	32	266	124	8	70	40
1000H	M64	140	780	75	49	215	36	306	134	8	70	40
