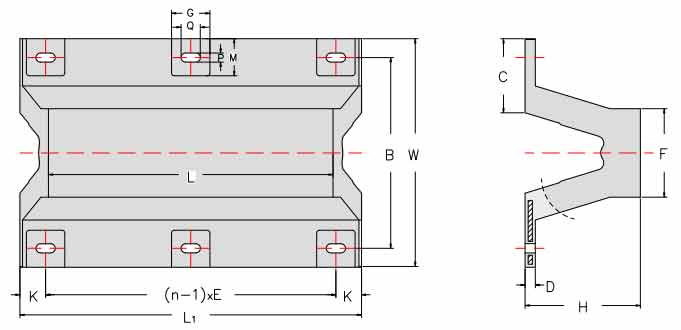

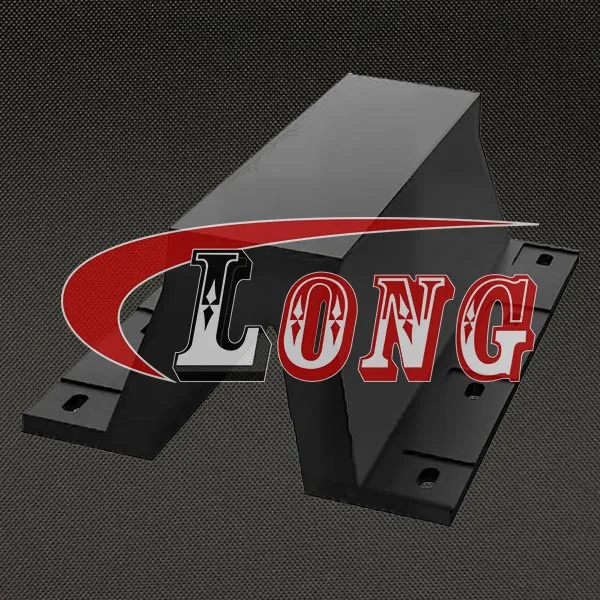

Specification of LGRIG® Arch Fenders DA Type

Part No.	Specification	H	W	B	F	C	D	P	Q	M	G
LGRAFDA150H	150H	150	300	240	98	96	22	25	50	55	95
LGRAFDA200H	200H	200	400	320	150	128	24	29	58	75	105
LGRAFDA250H	250H	250	500	410	187	160	30	32	64	90	125
LGRAFDA300H	300H	300	600	490	225	195	33	35	70	105	140
LGRAFDA400H	400H	400	800	670	300	260	40	41	82	120	165
LGRAFDA500H	500H	500	1000	840	375	325	45	47	94	140	180
LGRAFDA600H	600H	600	1200	1010	450	390	54	50	100	160	195
LGRAFDA800H	800H	800	1600	1340	600	520	72	68	136	260	270
LGRAFDA1000H	1000H	1000	1850	1550	650	580	52	54	108	300	290

Units:mm

Specification	150H						200H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1075	1575	2075	2575	3075	3075	1100	1600	2100	2600	3100	3600
n	2	3	4	4	5	6	2	3	4	4	5	6
E	855	675	620	785	715	671	860	680	620	785	715	672
K	110	112.5	107.5	110	107.5	110	120	120	120	122.5	120	120
Weight (kg)	36	57	74	91	109	128	61	92	124	153	181	210

Units:mm

Specification	250H						300H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1125	1625	2125	2625	3125	3625	1150	1650	2150	2650	3150	3650
n	2	3	4	4	5	6	2	3	4	4	5	6
E	865	680	620	790	715	673	870	685	625	790	715	674
K	130	132.5	132.5	127.5	132.5	130	140	140	137.5	140	145	140
Weight (kg)	86	130	171	225	269	310	126	178	234	308	370	432

Units:mm

Specification	400H						500H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1200	1700	2200	2700	3200	3700	1250	1750	2250	2750	3250	3750
n	2	3	4	4	5	6	2	3	4	4	5	6
E	900	700	635	800	725	680	930	715	645	810	730	686
K	150	150	147.5	150	150	150	160	160	157.5	160	165	160
Weight (kg)	206	302	390	510	636	738	326	460	601	806	955	1110

Units:mm

Specification	600H						800H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1300	1800	2300	2800	3300	3800	1400	1900	2400	2900	3400	3900
n	2	3	4	4	5	6	2	3	4	4	5	5
E	960	730	655	820	740	692	1040	770	680	845	760	885
K	170	170	167.5	170	170	170	180	180	180	182.5	180	180
Weight (kg)	481	680	883	1102	1342	1580	875	1227	1585	2042	2410	2800

Units:mm

Specification	1000H
L	1000	1500	2000	2500	3000
L1	1500	2000	2500	3000	3500
n	2	3	4	4	5
E	1100	800	700	860	775
K	200	200	200	210	200
Weight (kg)	1402	1910	2440	2950	3480

Units:mm

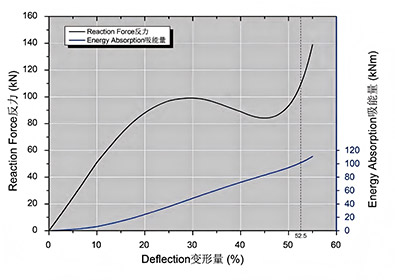

Performance of LGRIG® Arch Fenders DA Type

Specification			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
Performance			150H*	200H	250H	300H	400H	500H	600H	800H	1000H
RS	52.5%	R(kN)	129	170	270	325	430	540	645	864	1080
	52.5%	E(kNm)	7	11	28	41	73	113	163	290	450
	55%	R(kN)	174	230	375	450	600	750	895	1200	1490
	55%	E(kNm)	8	14	30	44	78	120	175	310	486
RH	52.5%	R(kN)	112	150	208	248	330	415	495	664	830
	52.5%	E(kNm)	6	12	22	31	55	87	125	223	349
	55%	R(kN)	151	202	288	345	460	575	690	922	1150
	55%	E(kNm)	7	13	23	33	60	93	135	239	374
RO	52.5%	R(KN)	84	112	172	206	275	344	412	550	688
	52.5%	E(kNm)	4	10	18	26	46	72	104	185	289
	55%	R(kN)	113	152	239	286	382	478	572	764	956
	55%	E(kNm)	5	11	19	28	49	77	111	198	310
RL	52.5%	R(kN)	56	75	148	175	235	295	354	472	590
	52.5%	E(KNm)	3	6	16	22	40	62	89	159	248
	55%	R(kN)	76	105	205	245	328	410	492	655	820
	55%	E(kNm)	4	7	17	24	43	66	95	170	265

RS: Super high Reaction Force, RH: High Reaction Force

RO: Standard Reaction Force, RL: Low Reaction Force

R:Reaction Force, E:Energy Absorption.

Rated Deflection: 52.5%, Maximum Deflection: 55%.*150H:Rated Deflection:45%

Performance tolerance: Reaction Force:≤+10%, Energy Absorption:≥-10%

The performance mentioned above is the performance for per meter length fender,Dynamic performance in different length shall be calculated by times the multiple of 1000mmlength.

PIANC factors
Angular compression Factor		Temperature Factor		Velocity Factor
Angle(dgree)	AF	Temperature(℃)	TF	Time(second)	VF
0	1.000	50	0.882	1	1.014
3	0.963	40	0.926	2	1.005
5	0.952	30	0.969	3	1.004
8	0.939	23	1.000	4	1.003
10	0.924	10	1.056	5	1.003
15	0.817	0	1.099	6	1.002
20	0.535	-10	1.143	8	1.000
		-20	1.186	≥10	1.000
		-30	1.230
