Name: LGRIG® Cylindrical Fender CYL Type
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

Hooks 

Trawling Shackle 

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

 Square Fenders

 Rubber to Metal Bonded-Customized Products

 Rubber Molded Dock Fenders

 Arch Fenders-China LG Supply

 D Fenders-China LG Supply

 Vehicle Wheel Chocks

 Laminated Wheel Chocks

 Molded Dock Bumpers

 Rubber Laminated Dock Bumpers

 LGRIG® Super Cell Rubber Fenders SCA Type

 LGRIG® Super Cone Fenders SCB Type

 LGRIG® Arch Fenders DA Type

 LGRIG® Arch Fenders DAF Type

 LGRIG® Rubber Ladder Fender Arch Type

 LGRIG® Corner Arch Fenders

 LGRIG® Cylindrical Fender CYL Type

 LGRIG® Tug Cylindrical Fender TY Type

 LGRIG® W Fenders

 LGRIG® M Fender

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Footrope Gear 

Trawl Door 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

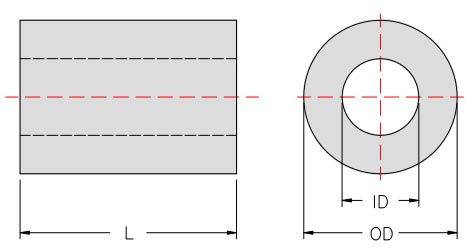

Specification of LGRIG® Cylindrical Fender CYL Type

Part No.	Specification OD×ID(mm)	Standard Reaction Force		High Reaction Force		Weight (kg)
Part No.	Specification OD×ID(mm)	R(kKN)	E(kNm)	R(kN)	E(kNm)	Weight (kg)
LGCFR150	150×75	44	1.5	73	2.3	17
LGCFR200	200×100	60	2.6	95	4.2	31
LGCFR250	250×125	75	4	120	6.5	48
LGCFR300	300×150	89	6	143	9	69
LGCFR350	350×175	104	8	167	13	94
LGCFR400	400×200	119	10	191	17	123
LGCFR500	500×250	148	16	239	26	191
LGCFR600	600×300	179	24	286	37	275
LGCFR700	700×350	208	31	334	50	376
LGCFR800	800×400	237	41	383	66	490
LGCFR900	900×450	268	52	430	84	620
LGCFR1000	1000×500	297	64	479	103	766
LGCFR1100	1100×550	331	77	528	129	926
LGCFR1200	1200×600	363	95	574	152	1102
LGCFR1300	1300×650	392	108	623	179	1294
LGCFR1400	1400×700	422	128	670	208	1501
LGCFR1500	1500×750	451	147	718	238	1723
LGCFR1600	1600×800	481	176	776	282	1960
LGCFR1700	1700×850	511	206	824	338	2213
LGCFR1800	1800×900	541	247	872	406	2481
LGCFR1900	1900×950	570	288	920	487	2765
LGCFR2000	2000×1000	653	321	1054	584	3063

Rated Deflection:50%

Performance tolerance:±10%

R:Reaction Force, E:Energy Absorption.

The performance mentioned above is the performance for per meter length fender.Dynamic performance in different length shall be calculated by times the multiple of 1000mm length.

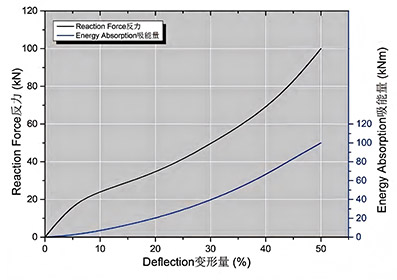

Performance of LGRIG® Cylindrical Fender CYL Type

U Bolt of LGRIG® Cylindrical Fender CYL Type

Specification	φd	L	R	φG	T
100~400	40	600	70	100	20~30
400~700	50	650	80	110	20~30
700~900	55	730	90	120	20~30
900~1100	60	780	100	140	25~35
1100~1500	65	830	105	150	25~35
1500~2000	70	880	115	160	25~35
