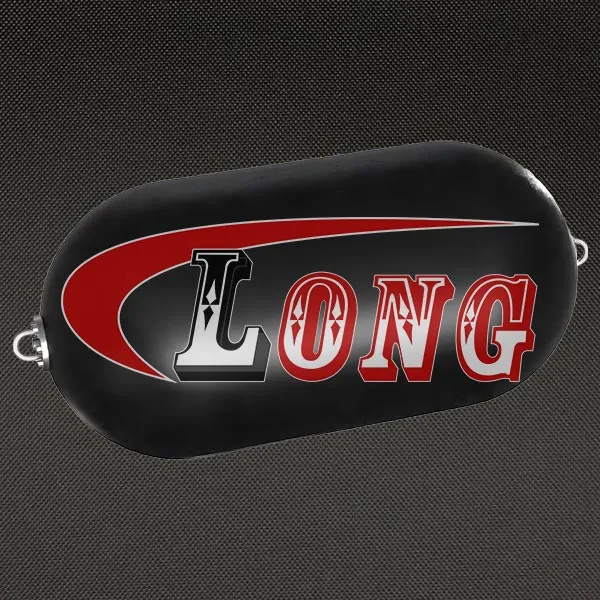

Name: LGRIG® Pneumatic Fender Sling Type
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

Hooks 

Trawling Shackle 

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

 LGRIG® Square Fenders

 LGRIG® D Type Fenders

 Rubber to Metal Bonded-Customized Products

 Rubber Molded Dock Fenders

 Arch Fenders-China LG Supply

 Vehicle Wheel Chocks

 Laminated Wheel Chocks

 Molded Dock Bumpers

 Rubber Laminated Dock Bumpers

 LGRIG® Super Cell Rubber Fenders SCA Type

 LGRIG® Super Cone Fenders SCB Type

 LGRIG® Arch Fenders DA Type

 LGRIG® Arch Fenders DAF Type

 LGRIG® Rubber Ladder Fender Arch Type

 LGRIG® Corner Arch Fenders

 LGRIG® Cylindrical Fender CYL Type

 LGRIG® Tug Cylindrical Fender TY Type

 LGRIG® W Fenders

 LGRIG® M Fender

 LGRIG® Wing Fenders

 LGRIG® Leg Fenders Element Fenders

 LGRIG® Marine Ladders Rubber

 LGRIG® Foam Fenders PF Type

 LGRIG® Pneumatic Fender Sling Type

 LGRIG® Roller Fenders

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Footrope Gear 

Trawl Door 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Specification of LGRIG® Pneumatic Fender Sling Type

Part No.	Specification φ×L	60% Compression		Safety Valve setting	Test pressure	Fender Reference Weight				Weight of sling type
		Reaction Force	Energy Absorption			Fender buffer weight	Net weight
		Reaction Force	Energy Absorption			Fender buffer weight	chain	Wire	Synthetic fiber
	mm	kN	kNm	Kpa	Kg	Kg	Kg	Kg	Kg	Kg
LGPFST35	300×500	14	1	一	一	8	一	一	一	一
LGPFST48	400×800	30	3	一	一	20	一	一	一	一
LGPFST510	500×1000	54	5	一	145	25	一	30	20	32
LGPFST610	600×1000	65	7	一	145	28	一	30	22	36
LGPFST715	700×1500	115	14	一	145	64	150	40	37	55
LGPFST1015	1000×1500	156	28	一	145	125	190	80	51	105
LGPFST1020	1000×2000	217	38	一	145	175	230	140	68	120
LGPFST1220	1200×2000	253	54	一	145	208	300	190	一	140
LGPFST1224	1200×2400	303	64	一	145	248	320	198	一	一
LGPFST1325	1350×2500	410	104	一	145	270	330	200	一	210
LGPFST1530	1500×3000	486	128	一	145	225	490	350	一	265
LGPFST1730	1700×3000	542	163	一	145	365	580	440	一	290
LGPFST2035	2000×3500	743	263	一	145	585	980	640	一	450
LGPFST2245	2200×4500	1078	417	一	145	1080	1090	820	一	一
LGPFST2540	2500×4000	1049	464	175.0	195	1560	1260	910	一	1080
LGPFST3365	3300×6500	2981	1795	175.0	240	2585	2680	1910	一	一
LGPFST4590	4500×9000	5688	4688	175.0	240	4575	4810	3520	一	一

Performance tolerance: ±10%

Other specifications are available upon request.

Performance Curve of LGRIG® Pneumatic Fender Sling Type

Installation dimensions of LGRIG® Pneumatic Fender Sling Type

Pneumatic fenders must be installed onto a solid structure or reaction panel to ensure that they are properly supported during impacts.


Size	a	b	C	d	e	W
1000×1500	975	950	1350	200	375	2000
1200×2000	1200	1140	1620	220	430	2600
1500×2500	1525	1420	2050	250	525	3250
2000×3500	2050	1900	2700	300	650	4500
2500×4000	2490	2380	3380	450	890	5200
3300×6600	3380	3140	4460	500	1080	8500
